automatic cocoa powder packing machine with screw feeder,China KCX price supplier

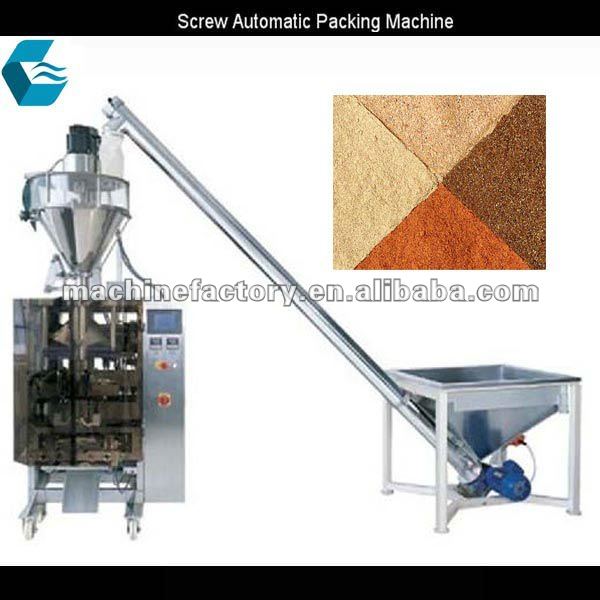

automatic cocoa powder packing machine with screw feeder

FOB Price:Price can be negotiated

Production Capacity:60 Set/Sets per Month 60

Payment Terms: US $8,600 - 19,600 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

COCOA POWDER packing machine
1,25-60bag/min
2,Weighting range:50g-1000g
3,PLC +Touch Screen
4,type:pillow,gusset

KCX5000D AUTOMATIC POWDER Packaging Machine

KCX5000D automatic packing machine /one set
CJSL2000 Auger Filler /one set.
DT1 screw elevator /one set.(option)
Production take-off Conveyor belt /one set. (option)
Air compressor /one set. (option)

1, Automatic packaging machine

Technical information

Model	KCX5000D
Bag length	50-360mm
Bag width	80-200mm
Speed	25-60bags/min
Weighting range	50g-1000g
Accuracy	1%
Sealing form	Three sides
Air consumption	0.4cbm/min, 0.6Mpa
Body Material	Stainless Steel
Voltage	220V/50HZ/3Kw
Hopper capacity	60L
Film	PE/PP/POF/BOPP/CPP
Parts
PLC _________OMROM, Touch Screen______TAIWAN Servo motor_______PANASONIC, Photo Sensor_____ Japan Air valve _________Korean

Technical Features:

1, Automatic photoelectric control, encoder control system

2, Gusset device and printing device

3, Automatic tracking code, bag-making, filling measuring, sealing, printing, product delivery in one operation.

2, CJSL2000 Auger Filler

This machine equips Sanyo Servo Motor, level switch and mixture motor automatic filling,

Controlled by packaging machine, Made by Stainless Steel .

3, DT1 SCREW ELEVATOR

1, Material: Stainless Steel

2, Automatic feeding.

3, Equips level switch and control box

4, Production take-off conveyor

1, Material: Stainless Steel

2, Length: 1.95m

5, Air Compressor /one set

Compressed air output: 0.6MPa, 0.4m ³ /min

SAMPLE BAG

Type:	Other	Condition:	New	Application:	Food,Commodity
Packaging Type:	Bags	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Power:	3KW	Place of Origin:	Shandong China (Mainland)
Brand Name:	KCX	Model Number:	KCX-5000D	Bag length:	50-360mm
Bag width:	80-200mm	Speed:	25-60bags/min	Weighting range:	50g-1000g
Accuracy:	1%	Sealing form:	Pillow, Gusset	Air consumption:	0.4cbm/min, 0.6Mpa
Body Material:	Stainless Steel	Hopper capacity:	60L	Voltage:	220V/50HZ/3Kw
