Lass="description"> Automatic Cube Sugar Production Line|Cube Sugar Making Machine
1.Good quality
2.High efficiency
3.Easy to operate
Automatic Cube Sugar Production Line|Cube Sugar Making Machine
1.L GNF- 100 Sugar Crusher
Model |
L GNF- 100 |
Production capacity |
50- 1 00 kg / h |
Feed size |
<5mm |
Crushing fineness (mesh) |
12-150 |
Motor Power |
3 Kw |
Dimensions (L*W*H) |
670*650*1200 |
Weight |
80 Kg |
Cube bulk |
0.92 |

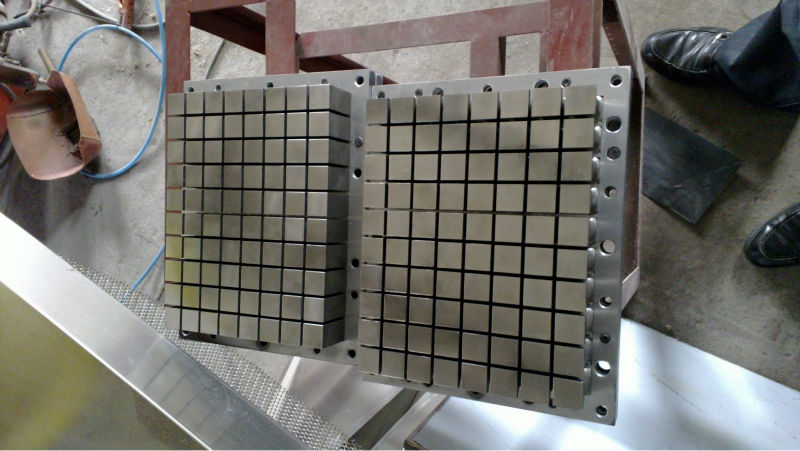

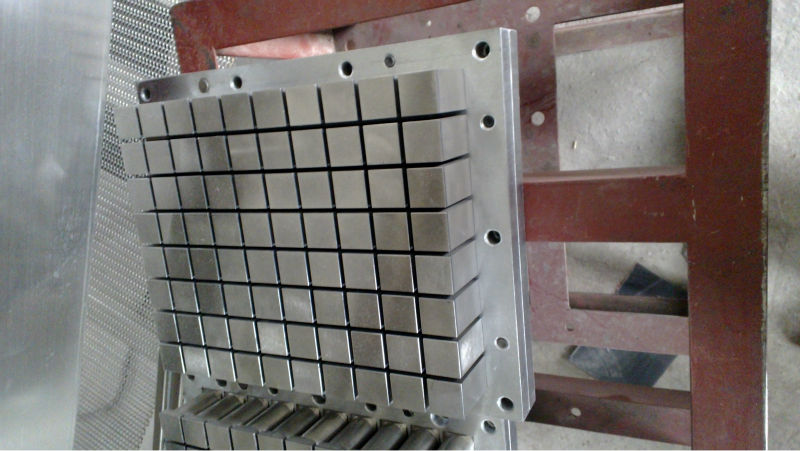

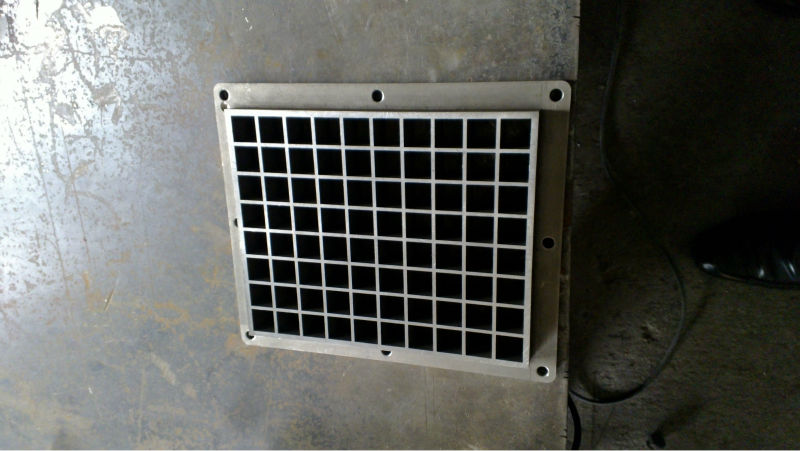

2.L GMDF- 60A Cube Sugar Machine
Model |
L GMDF- 60A(PLC control) |
Production capacity |
44000 Granules/H |
Motor power |
3Kw |
Voltage |
380 V, 50 Hz |
Rotary speed |
960 Loop/Min |
Dimension: (L×W×H) |
1800×750×1750mm |
Cubage |
2. 8 cube meters |
Gross Weight |
600KG |
PLC control, man-machine interface |
3. L G-TSG -1 Mixed spiral feeding machine
Model |
L G-TSG -1 |
|
Efficiency |
1-3M3/H , infinite speed variation |
|
Motor power |
3.85KW |
|
Discharge port from the ground |
1700mm |
|
Gross weight |
140KG |
|
Cubage |
1.81 cube meters |
|
Outline Air Consumption(L×W×H,MM) |
500*500*1650mm |
|
Outline Air Consumption(L×W×H,MM) |
520*520*900mm |
|
Function: mixing, automatic feeding |
4. L G MDFH-3 The infrared drying Oven
Model |
L GMDFH-3 |
Efficiency |
0-10M/M/min |
Outline Air Consumption(L×W×H,MM) |
20 00* 470 *1 400 |
Gross weight |
140KG * 5 |
Cubage |
4.5 cube meter |
Power |
AC380V50HZ 2.4KW |
Quantity |
3 sets |
5.L GMLQ-1 Cooler machine
Model |
L GMLQ-1 |
Function |
Cooling |
Efficiency |
0-10M/M/min |
Dimensions: |
1900*700*700MM |
Gross weight |
60KG |
Quantity |
2sets |
Cubage |
0.93 |
6. L G ZTX-250 Semi-automatic vacuum filling machine
Model |
L GZTX-250 |
Efficiency |
infinite speed variation |
Suction: 3N Sucking disc |
2 |
Outline Air Consumption(L×W×H,MM) |
500*750*1350MM |
Gross weight |
320 KG |
Cubage |
0.506 |
Quantity |
1sets |
Condition: |
New
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
LONGER
|
Model Number: |
LGFT
|
Application: |
Candy
|
Voltage: |
220/380V
|
Power(W): |
3KW
|
Weight: |
600KG
|
Dimension(L*W*H): |
1800*750*1750mm
|
Certification: |
ISO9001 &CE
|
Warranty: |
1 Year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Material: |
Stainless Steel
|
