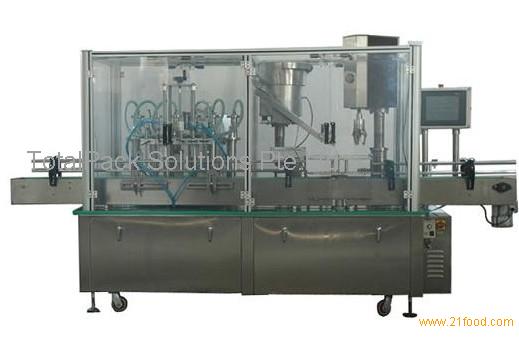

Automatic Filler and Capper (FC-100A),China TPS price supplier

Descriptions:
The FC-100A Automatic filler and capper is an ideal filling and capping equipments used in the industry of pharmaceutical, chemical, cosmetic as well as foodstuff. It can be incorporated into TPS-I production line.

Features:
PLC and touch screen control system.
CGMP design/cGMP standard.
Shut off nozzle. Diving nozzle is optional.
No drip fill nozzles.
Chuck capping head.
Both plastic and aluminum cap is available.
Vibrating cap loading system.
Easy to adjust from one bottle and cap size to another one.
6 nozzles fill simultaneously and accurately.
No bottle no filling, no bottle no capping, no cap no capping mechanism.
Custom design is available.

Specifications:
Power supply: 220V 1phase or 110V 1phase. Optional.
Capping speed: 50BPM.
Filling range: 5 ml(min. )-5000ml(max. )
Filling precision: 99%.
Cap diameter: 10-60mm.
Cap height: 10-25mm.
Bottle diameter: 15-100mm.
Bottle height: 60-150mm.
Dimension: 4200mm*1200mm*1700mm.
Weight: 1200kg.
