Automatic Linear Cans Filling Machine,Automatic Volumetric Auger Filler,Automatic Powder Filling Mac,China Dahepack price supplier

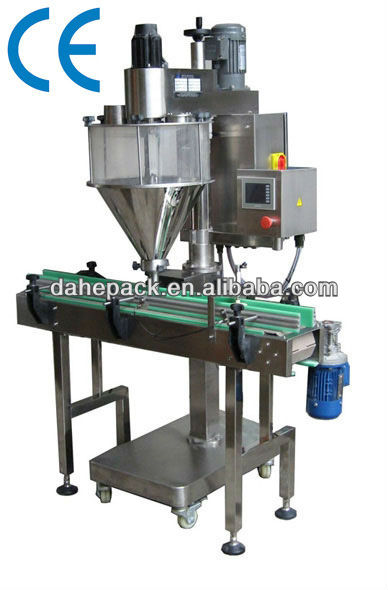

Automatic Linear Cans Filling Machine,Automatic Volumetric Auger Filler,Automatic Powder Filling Mac

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Year

Update Time:2014-09-20

Contact Supplier

Product Description

Lass="description"> Highly flexible container size accommodation,most economical filling solution.

Introductions:

This machine is the most economical automatic powder filling machine featured with high flexible container size accommodation , no need containers change parts or tools to fit different container filling application just by adjusting the fill head height and Conveyor guide rails.Easy to maintain and operate.

Specifications:

Model	DCS-2A-1	DCS-2B-11
Work M ode	Fill by volume with offline weight feedback	Fill by volume with offline weight feedback
Filling W eight	1-500g (With different auger tooling)	10-5000g (With different auger tooling)
Filling Accuracy	≤ 100g, ≤±2%;100 – 500g, ≤±1%	≤ 500g, ≤±1%; >500g, ≤±0.5%
Filling Speed	15 – 40 Units/Min	15 – 40 Units/Min
Power Supply	3P AC208-415V 50/60Hz	3P AC208-415V 50/60Hz
Air Supply	6 kg/cm 2 0.05m 3 /min	6 kg/cm 2 0.05m 3 /min
Total P ower	1.2Kw	1.6Kw
Total Weight	160kg	300kg
O verall Size	1500×760×1850mm	2000×970×2 0 30mm
Hopper Volume	Quick Disconnected Hopper 35L	Quick Disconnected Hopper 50 L

Main Features:

1:Total compact design model.

2: All parts and assemblies coming in contact with powder are made of S.S.304 and easily removable for maintainance and changeover.

3:NO BOTTLE, NO FILL" System eliminates wastage of costly powder.

4:Conveyor driving is through High quality Gear motor with stable performance.

5: Filling controlled by servo system with adjustable speed and high accuracy outcome.

6:Single track bottle movement, reduces setting of supporting guide rails and semi skilled person can also easily operate the machine.

7: Pneumatic bottle holding system is connected with auger rotation, which eliminates chances of bottle transfer before completion of filling operation.

8: No change parts are required for any change in bottle diameter in certain set range.

Type:	Filling Machine,Packing Machine	Condition:	New	Application:	powders,granules
Packaging Type:	Bottles	Packaging Material:	powder	Automatic Grade:	Automatic
Driven Type:	Electric	Power:	1.2kw	Place of Origin:	Shanghai China (Mainland)
Brand Name:	Dahepack	Model Number:	DCS-2A-1	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Filling weight:	1 - 500g	Filling Accuracy:	≤ 100g, ≤±2%;100-500g, ≤±1%
Filling Speed:	15 - 40 bottles/min	Hopper Volume:	35L

Company Profile

Name: Shanghai Dahe Packaging Machinery Co., Ltd.

Main Products: Power Filling & Packaging Machine (Screw Conveyor,Horizontal Ribbon Mixer,Auger Filler,Auger Filling & Packaging Machine)

Business Type: Manufacturer, Trading Company

Total Employees: 51 - 100 People

Established Year: 2005

Main Markets: Domestic Market, North America, Southeast Asia, Oceania, Western Europe

Address: No.1098,Minta Rd,Songjiang District

Shanghai Dahe Packaging Machinery Co., Ltd. is located in Songjiang, Shanghai, China. We integrate the design, manufacture, service and support of a complete set of machinery for powder filing and granular filling. Our Products are widely used in various fields, such as food packages, condiments, pharmaceuticals, healthcare products, chemicals and cosmetics. Our products are sold to 30 provinces, Hong Kong and Taiwan area, and exported to America, Europe, Southeast Asia, and other countries and regions.

Our main products and services include:
1. Auger Filling Machines
2. Automatic Can Feeding, Filling & Packaging Machines
3. Vertical Form Fill Seal Packaging Machines
4. Open-mouth weighing & bagging machines
5. Inclined, Horizontal Screw Feeders & Conveyors
6. Mixing Machines
7. Custom-Built Filling Machine Systems
8. Engineering Services for Turn-Key Systems

Founded in the 1990s, we can provide economical and highly reliable auger fillers for powder filling and granular filling which feature simplified and novel designs, easy installation, maintenance and operation.

If you are interested in our products, please do not hesitate to contact us for further information. more
