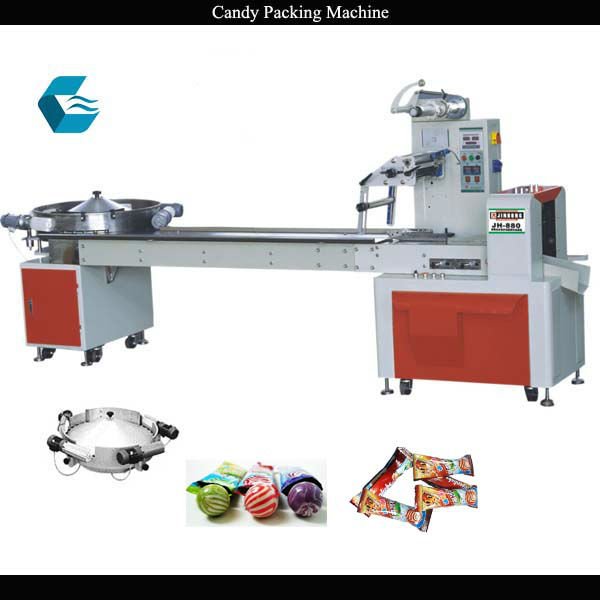

LOLLIPOPS Packing Machine
1. High Speed and Accuracy
2. PLC control
3. First class of service
4.One year warranty
Model |
Max Film width |
Speed |
Length of pack |
Pack width |
Pack Height |
Voltage |
Power |
Weight |
Dimensions (L*W*H) |
(mm) |
(Bag/min) |
(mm) |
(mm) |
(mm) |
(V) |
(KW) |
(Kg) |
(mm) |
|
KCX-450/120 |
450 |
30-150 |
70-450 |
10-150 |
5-45 |
220 |
3.6 |
1000 |
5700*1050*1700 |
KCX-450/150 |
450 |
30-150 |
80-450 |
10-150 |
5-65 |
220 |
3.6 |
1000 |
5700*1050*1700 |
KCX-590/120 |
590 |
30-120 |
70-450 |
10-200 |
5-65 |
220 |
4 |
1200 |
5700*1250*1800 |
KCX-590/150 |
590 |
30-120 |
80-450 |
10-200 |
5-55 |
220 |
4 |
1200 |
5700*1250*1800 |
KCX-590/180 |
590 |
30-120 |
90-450 |
10-200 |
5-120 |
220 |
4 |
1200 |
5700*1250*1800 |
KCX-720/820 |
720-820 |
20-60 |
100-400 |
80-305 |
5-140 |
220 |
4.2 |
1100-1200 |
6370*1310*1480 6370*1560*1480 |
1, Design of mechanical structure is simple and reasonable, which make the operation easy and reliable.
2, Adopting double-drive, automatic open-close vertical sealer system makes the vertical sealing stable and smooth.
3, High-speed horizontal sealer system makes the sealing operate at high speed the sealed stripes are clear and beautiful.
4, Function of automatic stop at the fixed position is provided.
5, Safety clutch for special products to protect the packed goods is available.
1 Any operation mode and the necessary adjustment can be made easily by the control knobs and screws in one front location.
2 the digital indicator installed with this typed of the machine shows the size of the film to be cut and packing speed, capacity and all the other data.
3 PC to be adopted reduces the mechanical contacting points and makes the system more stable, reliable, and simple.
4 The inverter is convenient and simple to adjust the motor speed.
5 The photo sensor is used to test the black mark on the film no contacting points and two-way tracing are available.
Type: |
Other,Packing Machine
|
Condition: |
New
|
Application: |
Food
|
Packaging Type: |
Bags
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
Driven Type: |
Electric
|
Power: |
3.6kW
|
Place of Origin: |
Shandong China (Mainland)
|
Brand Name: |
KCX
|
Model Number: |
KCX-450/150
|
Certification: |
CE
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Material: |
Stainless Steel
|
Film: |
PE/OPP/POE/BOPP/AL/POF
|
Max Film Width: |
450mm
|
Packing Speed: |
30-220 Bags/min
|
Packing Length: |
90-450mm
|
Packing Width: |
10-150mm
|
Packing Height: |
5-85mm
|
Weight: |
1000kg
|
Outside Dimension: |
L:5700 W:1050 H:1700
|
