automatic pillow type marshmallow packing machine,China SUK price supplier

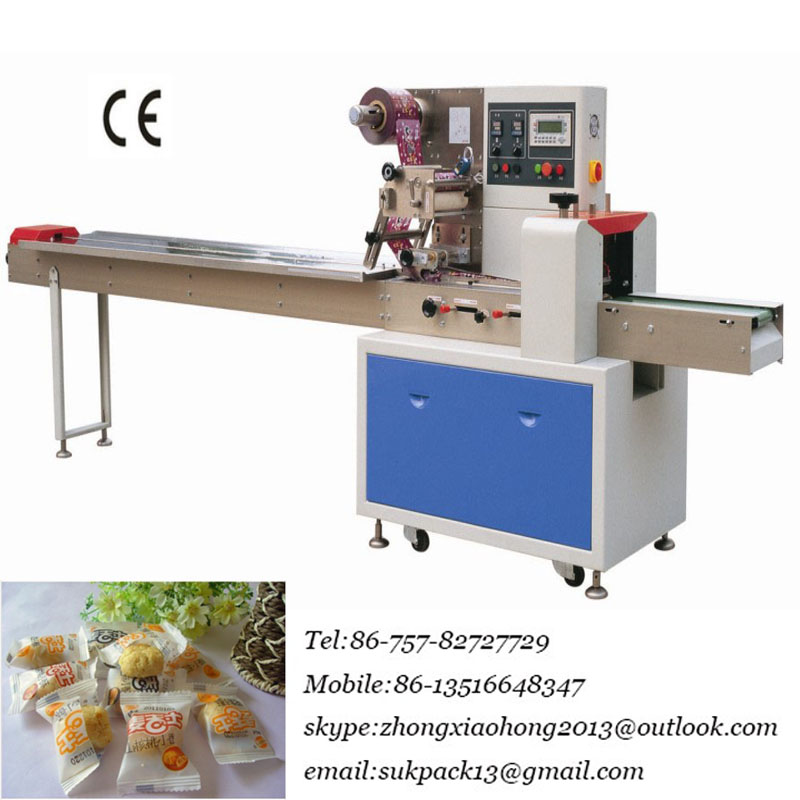

automatic pillow type marshmallow packing machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Payment Terms: US $3,750 - 5,600 / Set

Update Time:2014-09-26

Contact Supplier

Product Description

automatic pillow type Marshmallow packing machine
1.Easy to operate,maintenance;
2.CE certification.
3.1 year warranty

Detailed Product Description

automatic pillow type marshmallow packing machine

1.Easy to operate,maintenance;

2.CE certification.

3.1 year warranty

FOSHAN SUK Packing Machinery Co.,Ltd is a professional Packaging Machine manufacturer with 5 years' experience in China. We offer over 18 various kinds of packaging machines and our monthly output amounts to more 100 sets. We will supply you a high qu a lity packing machine and a resonable price .Hoping to be your reliable parter in China.

Packing material: Heat-sealable laminated film, such as: OPP,PE,PVC,PT/PE,OPP/CPP ,other special sealable packing film.

Sealing Type: Back-sealed (3 sides sealed)

FEATURES of automatic pillow type marshmallow packing machine

1. Easy to operate with Man Machine Interface

2. Self failure diagnosis, display failure clearly.

3. Positioned stop function, without sticking knife or wasting film.

4. Simple driving system, reliable working, convenient maintenance.

5. Temperature independent PID control is suitable for packing many materials.

6. All control is completed through software, easy to adjust function and upgrade technology.

7. With Dual frequency conversion, bag length can be set and cut in one step, saving time and film.

8. High sensitivity photoelectric eye color tracing, numerical input of cutting sealing position for extra accuracy.

TECHNICAL PARAMETERS of automatic pillow type marshmallow packing machine

Tye	SZ-250B	SZ-250D	SZ-250E(3blades)	SZ-250S(4blades)
Film width	Max.250mm		Max.180mm
Bag length	65-190 or 120-280mm	90-220mm	50-115mm	45-90mm
Bag width	30-110mm		30-80mm
Product height	Max.40mm	Max.55mm	Max.35mm
Film roll diameter	Max.320mm
Packaging rate	40-230bag/min		60-330bag/min
Power	220v 50/60Hz 2.4KW		220v 50/60Hz 2.8KW
	(L)3770×(W)670×(H)1450mm
Machine weight	600kg
Remarks	Optional air filling device

Reference Data:

Type	SZ-250	SZ-320	SZ-350	SZ -400	SZ -450	SZ-600
Film width	250mm	320mm	350mm	400mm	450mm	600mm
Bag Length	65-280mm	65-330mm	65-330mm	130-400mm	130-450mm	130-450mm
Bag width	30-110mm	50-160mm	50-160mm	50-185mm	60-200mm	60-280mm
products High	max.55mm	Max.55mm	max.60mm	max.80mm	max 90mm	max95mm
Packing speed	40-230bag/mins	40-230bag/min	40-230bag/min	30-180bag/min	30-180bag/min	30-150bag/min
Power	220v 50/60HZ 2.4kw	220v 50/60HZ 2.6kw	220v 50/60HZ 2.6kw	220v 50/60hz 2.6kw	220v 50/60hz 2.6kw	220v 50/60hz 2.6kw
Machine size	3770x670x1450mm	3770x720x1450mm	4020x770x1450mm	4020x800x1450mm	4020x820x1450mm	4020x90x1450mm
Machine Weight	600kg	700kg	800kg	900kg	1000kg	1100kg

Electric detailed list:

No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset

The packing sample:

automatic pillow type marshmallow packing machine details:

7inch touch screen:

automatic pillow type marshmallow packing machine

Type:	Multi-Function Packaging Machine	Condition:	New	Function:	Wrapping
Application:	Food,Medical,Machinery & Hardware,mask respirator packing wrapping machine	Packaging Type:	Cartons,Bags,Flow pack	Packaging Material:	Plastic
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	220v
Power:	220v 50/60Hz 2.4KW	Place of Origin:	Guangdong China (Mainland)	Brand Name:	SUK
Model Number:	SZ-250B	Dimension(LWH):	(L)3770X(W)670X(H)1450mm	Certification:	CE
After-sales Service Provided:	Overseas service center available	Machine quality:	600kg	Usage:	Outer

Company Profile

Name: Foshan SUK Precision Machinery Co., Ltd.

Main Products: Pillow packing machine,Vertical packing machine,Liquid packing machine,Rotary pillow packing machine,Reciprocating pillow packing machine

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2012

Main Markets: Africa, North America, Western Europe, Southern Europe, Eastern Europe

Address: Luocun

Foshan SUK Precision Machinery Co., Ltd. (former Foshan City Huaxinyi Machinery Factory) was founded in 2008. Through years of development, our company has developed more than ten series of products which are widely used in food, chemical, pharmaceutical, hardware and daily necessities. We have realized automatic measurement, feeding, filling, bag making and all other work. We have greatly improved the production efficiency, and save labor cost.

SUK offers diversified products. We also keep upgrading and improvising our products depending upon specific requirements of our valued customers and keep in mind any new development in both technology and market. With a customer-centric approach, we have been stepping forward, opening new avenues in providing 360 degree solutions for our customers. We establish ourselves as a one-stop service supplier.

SUK is famous for superior quality, competitive price, exquisite technique, safe package and prompt delivery. Through an efficient network of branches, agents, distributors and partners, our products have been exported to Europe and the United States, Southeast Asia, Africa, India, Indonesia, and other parts of the world.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
