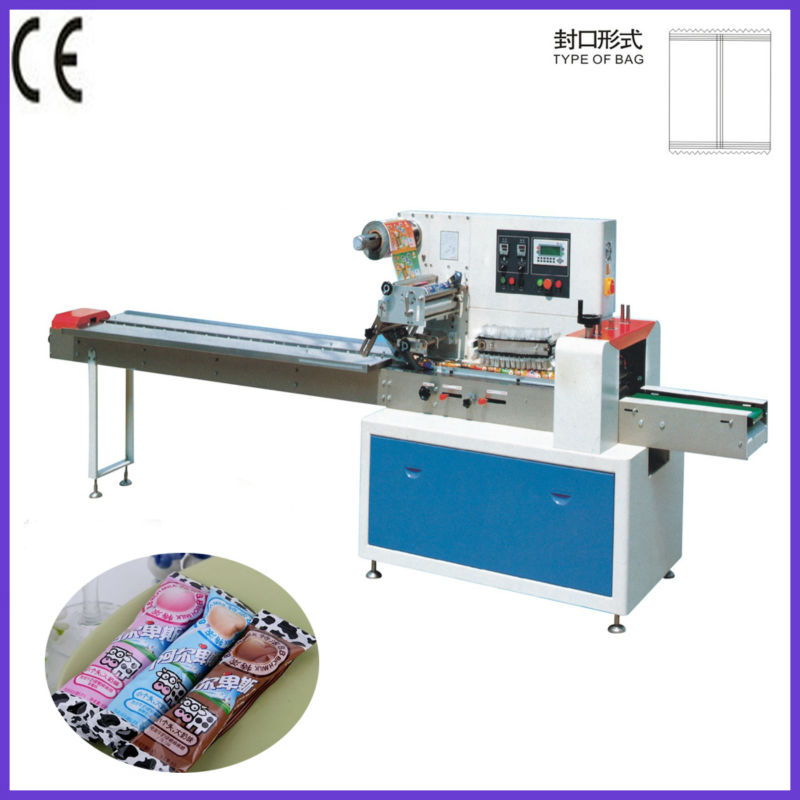

automatic pillow type marshmallow packing machine SZ-350,China SUK price supplier

automatic pillow type marshmallow packing machine SZ-350

FOB Price:Price can be negotiated

Production Capacity:100 Piece/Pieces per Month

Payment Terms: US $3,700 - 5,700 / Piece

Update Time:2021-12-23

Contact Supplier

Product Description

Specifications:
1. automatic, customizable, easy to operate
2. high quality and good price
3. high speed
4. CE

Main performance & structure characteristics of automatic pillow type Marshmallow packing machine SZ-350:

1. Double converters control bag length which can be set and cut. There is no need to adjust empty which will be prompted automatically by the humanized operation, saving time and membrane.

2. Master control circuit adopts imported single-chip microcomputer with man-machine interface and frequency control, making setting parameters convenient and quick and operation intuitive.Fully implement the humanized automatic operation.

3. Digital fault self-diagnosis function.Fault diagnosis is clear at a glance

4. Packing speed and bag length adopts dual frequency conversion control, digital sealing and cutting position input. The sealing and cutting position is precise, beautiful and solid.

5. Highly sensitive photoelectric device tracks automatically and accurately.

6. Positioning stop function without sticking knife, cutting and wasting envelope.

7.Double frequency contracted mechanical structure with less worn, easy maintenance and long life.

8. The temperature of each seal is independent. PID control is suitable to various packaging materials.

9. All controls are implemented by software. It can install intermittent air device and spray Alcohol device to implement adjusting functions immediately and upgrading technology to ensure it will never fall behind.

Application of automatic pillow type marshmallow packing machine SZ-350

Be applicable for packaging of solid and regular products like biscuit, moon cake, candy, insulating tape, wet tissues, paper tissues, cartoon, mosquito-repellent incense and Chinese date.

Technical parameters(automatic pillow type marshmallow packing machine SZ-350):

Type	SZ-250	SZ-320	SZ-350	SZ -400	SZ -450	SZ-600
Film width	250mm	320mm	350mm	400mm	450mm	600mm
Bag Length	65-280mm	65-330mm	65-330mm	130-400mm	130-450mm	130-450mm
Bag width	30-110mm	50-160mm	50-160mm	50-185mm	60-200mm	60-280mm
products High	max.55mm	Max.55mm	max.60mm	max.80mm	max 90mm	max95mm
Packing speed	40-230bag/mins	40-230bag/min	40-230bag/min	30-180bag/min	30-180bag/min	30-150bag/min
Power	220v 50/60HZ 2.4kw	220v 50/60HZ 2.6kw	220v 50/60HZ 2.6kw	220v 50/60hz 2.6kw	220v 50/60hz 2.6kw	220v 50/60hz 2.6kw
Machine size	3770x670x1450mm	3770x720x1450mm	4020x770x1450mm	4020x800x1450mm	4020x820x1450mm	4020x90x1450mm
Machine Weight	600kg	700kg	800kg	900kg	1000kg	1100kg

Optional Devices of automatic pillow type marshmallow packing machine SZ-350:

1:Date coder

2:Alternative sealing patterns and notch

3:Full Stainless

4:Touchable Screen

5: Filled with air device

6: Release the air and punching

Electric detailed list:

No.	Product Name	Brand
1	PLC	Panasonic/Japan
2	INVERTER	Schneider
3	7 inchTouch screen	Wei Lun/Taiwan
4	Intermediate Relay	OMRON
5	Switching power	Meanwell/Taiwan
6	solid state relay	Schneider
7	Temperature controller	Yatai/Shanghai
8	Photoelectricity colour code	Aiset

Quality Control:

Two different quality controlling way.
1. Factory quality self test.
Have person who is in charge of testing machine with customer's materials.
2. Customer's quality testing
Take video of machine testing, then send to customer, also we keep record.

Basic Service:

1.Technical support

2.Loading inform

3.Video for debugging

4.Customer's require is welcome

5. Free training, Free 1 year warranty

Packing samples of automatic pillow type marshmallow packing machine SZ-350

Contact me:

Type:	Wrapping Machine	Condition:	New	Application:	Food,Commodity,Medical,Chemical,Machinery & Hardware,Apparel,Textiles
Packaging Type:	Stand-up Pouch,Bags,Film,Foil,Belt,Pouch,Capsule	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.8KW
Place of Origin:	Guangdong China (Mainland)	Brand Name:	SUK	Model Number:	SZ-350
Dimension(LWH):	(L)3770(W)670(H)1450	Weight:	600KG	Certification:	CE
After-sales Service Provided:	Overseas service center available	shape of sealed bag:	back sealing(central sealing)	machine material that touching products:	stainless steel
composite membrane:	opp/cpp,opp/pe, etc	film material:	laminated film	usage:	automatic pillow type marshmallow packing machine

Company Profile

Name: Foshan SUK Precision Machinery Co., Ltd.

Main Products: Pillow packing machine,Vertical packing machine,Liquid packing machine,Rotary pillow packing machine,Reciprocating pillow packing machine

Business Type: Manufacturer

Total Employees: 11 - 50 People

Established Year: 2012

Main Markets: Africa, North America, Western Europe, Southern Europe, Eastern Europe

Address: Luocun

Foshan SUK Precision Machinery Co., Ltd. (former Foshan City Huaxinyi Machinery Factory) was founded in 2008. Through years of development, our company has developed more than ten series of products which are widely used in food, chemical, pharmaceutical, hardware and daily necessities. We have realized automatic measurement, feeding, filling, bag making and all other work. We have greatly improved the production efficiency, and save labor cost.

SUK offers diversified products. We also keep upgrading and improvising our products depending upon specific requirements of our valued customers and keep in mind any new development in both technology and market. With a customer-centric approach, we have been stepping forward, opening new avenues in providing 360 degree solutions for our customers. We establish ourselves as a one-stop service supplier.

SUK is famous for superior quality, competitive price, exquisite technique, safe package and prompt delivery. Through an efficient network of branches, agents, distributors and partners, our products have been exported to Europe and the United States, Southeast Asia, Africa, India, Indonesia, and other parts of the world.

If you are interested in any of our products or would like to discuss a custom order, please feel free to contact us. We are looking forward to forming successful business relationships with new clients in the near future.
