Automatic Thermoforming Tray Food Chocolate Machine

FOB Price:Price can be negotiated

Production Capacity:12 Set/Sets per Year

Payment Terms: US $100,000 - 400,000 / Set

Update Time:2024-07-27

Contact Supplier

Product Description

Automatic Thermoforming Tray Food Chocolate Machine
1)capacity is 1000 pcs/hour
2)Can produce many products

Automatic Thermoforming Tray Food Chocolate Machine

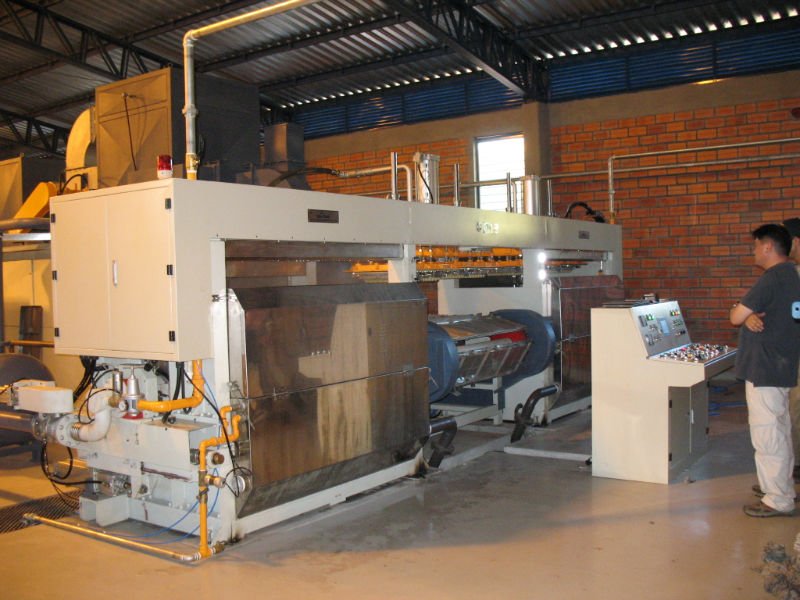

The TP-ETEB type Production Line constituted by eight large-scale systems

(1) Pulping system ……(automatic control, use pulping system 2 )

(2) Forming machine…(automatic control)

(3) Forming machine auxiliaries system…(automatic control)

(4) Dryer……(automatic control)

(5) Automatic hot- pressing reshaping machine

(6) Finished products automatic Stow and manual packing system

(7) Supply hot system………(semiautomatic control)

(8) Electricity control system

Model	TP-ETEB-A4000
Egg tray pcs(pcs/hr.)	4000
Max. output(kg/hr.)	400
The whole product line power(kwh)	150
Electricity cost(kwh)	123
Diesel oil cost(kg/hr.)	60
Gas cost(cube/hr.)	75
Steam cost(kg/hr.)	1000
Water cost(litre /hr.)	1000
staff	5
Forming machinemovement periods	Egg tray10-11 sec.
Forming machinemovement periods	other10-30 sec. adjustable
Forming machine board size(mm)	1600x400x4
Mould	Forming mould 16 pcs
Mould	Transfer mould 16 pcs
Operation	Control by PLC computer,run automatically

Other Type of machine

Model	TP-ETEB-A600	TP-ETEB-A900	TP-ETEB-A1200	TP-ETEB-A2000
Egg tray pcs(pcs/hr.)	600	900	1200	2000
Max. output(kg/hr.)	70	90	120	200
The whole product line power(kwh)	58	66	78	138
Electricity cost ( kwh )	45	52	62	105
Diesel oil cost(kg/hr.)	15	23	28	38
Gas cost(cube/hr.)	19	29	35	49
Steam cost(kg/hr.)	320	490	580	800
Water cost(litre /hr.)	300	400	500	800
staff	3	3	3	5
Forming machinemovement periods	Egg tray:10-11 sec	Egg tray:10-11 sec.	Egg tray:10-11 sec.	Egg tray:10-11 sec.
Forming machinemovement periods	other:10-30 sec. adjustable	other:10-30 sec. adjustable	other:10-30 sec. adjustable	other:12-30 sec. adjustable
Forming machine board size(mm)	800x500	1200x500	1600x500	1600x500x2

Product

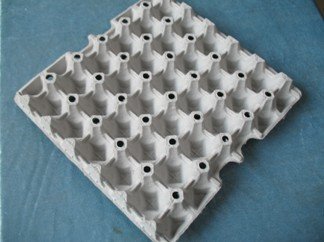

15.5-25Ibs egg tray

All types of egg tray

All types of egg carton

Condition:	New	Product Type:	Egg Tray Machine	Processing Type:	Pulp Molding Machine
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	TRANSPACK	Model Number:	TP-ETEB
Voltage:	220~380V	Power(W):	60~150KW	Certification:	CE
Warranty:	One year	After-sales Service Provided:	Engineers available to service machinery overseas	Egg tray/carton pcs/hour:	1000~4500

Company Profile

Name: Transpack Euro-Asia Packing Machinery Co., Ltd.

Main Products: Corrugated Cardboard Machine,Printing Machine,Paper Pulp Molding Machine,Folder Gluer Machine,Strapping Machine

Business Type: Trading Company

Total Employees: 11 - 50 People

Established Year: 2005

Main Markets: Southeast Asia, Eastern Europe, Domestic Market

Address: 15E2,Zhaofeng Global Plaza,No.1800 West Zhongshan Rd,Xuhui District,Shanghai,China

TRANSPACK GROUP is composed of a Shanghai Transpack Euro-Asia Packing Machinery Co., Ltd and ITALY MASSENZANA SRL.
Shanghai Transpack Euro-Asia Packing Machinery Co., Ltd was founded in 1997. have five machine-building factories of China and Taiwan area, specializing in the production and delivery of various packing equipment.
MASSENZANA SRL. was founded in 1951, is the first one of the world's designed and produced of corrugated board production line and high-speed flexo printing machine.with many patent design, proficient in cardboard boxes/each production process. Equipment with high stability, high performance, low maintenance is famous all over the world.
TRANSPACK GROUP leading the China Europe international projects and technical cooperation. Base for equipment manufacturing and after-sales service in China,technical research and development center in Europe , optimum production solutions for our customers.
Group member include ITALY BIZZOZERO MICA;S.T.T srl.GK srl.V.E.C srl.Taiwan TRANSPAK more than 10 member
Our Main Products:
Corrugated production line
Automatic flexo printing machine&Casemaker
Paper Pulp Molding machine
Automatic Strapping machine
CHOOSE TRANSPACK GROUP.EXPRIENCE UNPRECEDENTED SOLUTION more
