bean Drying machine,China YIBU price supplier

bean Drying machine

FOB Price:Price can be negotiated

Production Capacity:30 Set/Sets per Month

Payment Terms: US $20,000 - 10,000,000 / Set

Update Time:2014-09-19

Contact Supplier

Product Description

Beaning drying machine , is used for drying vegetable, particle feed, gourmet powder, shredded coconut stuffing, fruit slice and

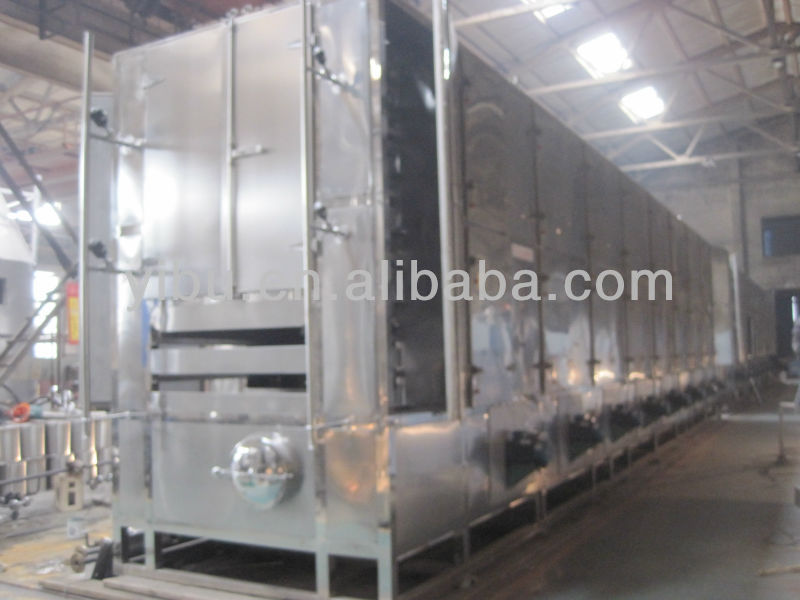

Bean Drying machine

Descriptions

This machine is a continuous penetrating flow drying equipment applied for drying pieces strip and particles state materials with good ventilation. The machine is suitable for the materials such as dewatering vegetable, herbal medicine of traditional Chinese medicine and others, for which the water contents are high and high drying temperature is not allowed. The machine owns the advantages, of fast drying speed, high evaporation capacity and good product quality. The de-watered & filtered cake state paste material should be made into particles or strips before drying process.

Keyword:

Vegetable Dryer ; Agar-agar dryer; seaweed dryer; Fruit Dryer; Leaf dryer; Herb leaf dryer; Vegetable Drier ; Agar-agar drier; Seaweed drier; Fruit Drier; Leaf drier

Principle

The materials are uniformly distributed on the mesh-belt by the material feeder. The mesh-belt generally adopts 12-60 mesh stainless steel mesh and it is drawn by a transmission device and move inside the dryer . The dryer is composed of several sections. For each section, the hot air is circulated separately. Part of exhausted gas is exhausted by a special moisture exhaust blower. The waste gas is controlled by an adjustment valve. The hot air passes through the mesh-belt covered with bring water material away. The mesh-belt moves slowly, running speed can be freely adjusted according to the material property. The final products after the drying process will fall into the material collector continuously. The top and low circulation units can be freely equipped according to the user's requirements. The number of section might be selected according to the production demands.

Application

De-watering vegetable, particle feed, gourmet powder, shredded coconut stuffing, organic color, compound rubber, acral fibre, medicine product, medicine material, small wooden product, plastic product, aging and solidification for the electronic component and device.
Technical parameters

spec	DW-1.2-8	DW-1.2-10	DW-1.6-8	DW-1.6-10	DW-2-8	DW-2-10
unit number	4	6	4	6	4	6
belt Width m	1.2	1.2	1.6	1.6	2	2
drying section Length m	8	10	8	10	8	10
Thickness of the material mm	10-80
Temperature	60-130
steam Pressure Mpa	0.2-0.8
steam Consumption Kgsteam/KgH ₂ O	2.2-2.5
drying strength KgH ₂ O/h	6-20kg/m ² .h
total power of blower Kw	3.3	4.4	6.6	8.8	12	16
total power of equipment KW	4.05	5.15	7.35	9.55	13.1	17.1

Specialized machine for vegetable

unit	three units series specialized machine for vegetable		five layers specialized machine for vegetableFrame type
model		DWP-2-10-3	DWF-2-10-3	DW5-3-12
effective belt width	m	2	2	3
effective belt length	m/unit	10	10	12
tandemquantity		3	3
layers				5
vegetable capacity	kg/h	600	720	2000
evaporate strength	kg/h	400-510	480-640	1440-1800
consumption of steam	Kgsteam/KgH ₂ O	2.2-2.5	2.2-2.5	2.2-2.4
heat radiation area	m ²	900	1440	2600
total power of the machine	kw	70	52	150
overall size	m	33.2×2.58×2.8	33.2×2.27×2.85	15.3×4.3×8.5
heat source type		steam, theermal conductivity oil, hot air furnace, electric

Specialized machine for feed(frame type)

Specialized machine for feed (frame type)
model	unit	DWZ-3×12
effective belt width	m	3
effective belt length	m/unit	12
using temperature		80-130
pressure of steam	Mpa	0.4-0.8
drying time	min	35-50
thickness of material	cm	5-8
drying strength	kg/h	6-20
consumption of steam	Kgsteam/KgH ₂ O	2-2.4
total power of the machine	kw	76
overall size	m	15.1×4.3×3.4

Condition:	New	Place of Origin:	Jiangsu China (Mainland)	Brand Name:	YIBU
Model Number:	DW	Type:	Dryer	Certification:	CE
Warranty:	one year from the day of finishing installating and comissioing	After-sales Service Provided:	Engineers available to service machinery overseas	Certificate:	ISO14001, ISO9001
Processing Types:	Fruit & Vegetable	Processing:	Dryer	material:	MOC :304 or the whole parts 304
CE certificate:	available
