Best UHT Sterilization system sterilizer for milk/juice
1.hard to burn,long working time
2.CE,ISO9001

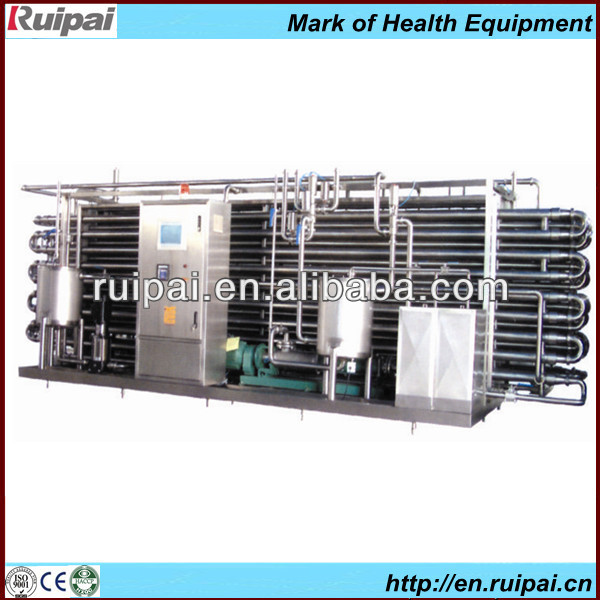

Best UHT sterilization system sterilizer for milk/juice
Product Description:
1. Usage: Pipe sterilizer can take hot process on the dairy production, liquid foods beverage, concentrate jam, biology, medicine etc. sterilizer of other model.
2. Main structure: Material tanks, sterilizer tank, material pump, exHeater, hot water cross occur, controller etc.
3. Control system: PLC controller, touch screen operating, frequency conversion timing, PID temperature controller.
4.Working principle: pre-sterilizing, sterilizing for the pipe which material will touch, use the hot water cycle in the pipe, more than 20 min, then lower the pipe temp., starting sterilizing for the material. The material which had disposal to the material tank, use the pump sending to pipe heat exchanger. Then put the material into heater pipe and sterilizing according to require time, and after sterilizing to the keeping pipe, then into the cooling pipe and sending to the filling machine .
Main technical parameter:
| UHT pipe sterilizer | |||||
| model | UHT-1.6 | UHT-2 | UHT-3 | UHT-4 | UHT-5 |
| product capacity (L/H) | 1600 | 2000 | 3000 | 4000 | 5000 |
| Material inlet temperature (°C) | 5 | 5 | 5 | 5 | 5 |
| warmkeeping time (s) | 4-15 | 4-15 | 4-15 | 4-15 | 4-15 |
| sterilizing temperature (°C) | 95-141 | 95-141 | 95-141 | 95-141 | 95-141 |
| Material outlet temperature (°C) | 4-20 | 4-20 | 4-20 | 4-20 | 4-20 |
| steam pressure (Mpa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| steam cost (kg/h) | 130 | 160 | 240 | 320 | 400 |
| compressed air pressure (MPa) | 0.6 | 0.6 | 0.6 | 0.6 | 0.6 |
| compressed air cost (L/H) | 50 | 50 | 50 | 50 | 50 |
| size(without homogenizer) (mm) | 3500*1600*1800 | 4500*2000*1900 | 4500*2500*2000 | 5000*2000*2000 | 5000*2000*2000 |
| electrisity(without homogenizer) (kw) | 4.5 | 4.5 | 5.5 | 6.5 | 10 |
Ruipai is an international company specialized in project and equipment manufacture.
Product series: Sanitary tank, groove vessel, filter, sterilizing, cooling, homogenizing, emulsification, concentration, distilling, recycling, drying, CIP cleaning series, sanitary pump, valve and fluid accessories; research and development and manufacturing non-standard equipments and realizing fully automatic controlling.
Product Purpose: Manufacturing engineering machinery equipments for such industries as dairy, food, condiment, fruit and vegetable product, brewing, biology, pharmacy, cold beverage, food additives, and chemicals.
Sale Field: Large, middle, small scale domestic enterprise, Japan, South Korea, North Korea, Sri Lanka, Egypt, Pakistan, and the countries of South and East Asia.
Technology Strategy: Depending on universities at home and abroad, science and research institutions, and international senior specialists and integrating the souls in this industry.
Production Equipment: Owning international first class production equipments.
Production Capacity: Annual production value surpassing 120 million.
Service Field: Scheming, designing, manufacturing, installation, debugging and relevant technology support.
Society Association: A member of Food and Medicine Machinery Industry Association of China/ A member among China Dairy Products Association/ A member among China Milk Industry Association.
Society honors: “Creditable Company" "Faithful Company” and “AAA-level capital and Credit Company", "Food Machine Famous and Best Products of China” “Quality, credit double-support demonstration unit”.
Quality System: Acquired the certificates of ISO9001 International Quality System, HACCP Foodstuff Quality Safety.
Certificates:
Honors:
Engineer Samples:
Our factory:
Our customers:
(1) GEA Group in German
(2)Tetra Pak in Sweden
Carton Fair:
| Processing: |
Sterilizer,sterilizer
|
Condition: |
New
|
Place of Origin: |
Shanghai China (Mainland)
|
| Brand Name: |
Ruipai
|
Model Number: |
UHT-1.6
|
Processing Types: |
fresh milk,yoghourt,juice,tea etc.
|
| Voltage: |
380 V
|
Dimension(L*W*H): |
3500*1600*1800 mm
|
Certification: |
CE,ISO9001,HACCP
|
| Warranty: |
1 year
|
After-sales Service Provided: |
Overseas third-party support available
|
product capacity (T/h): |
1600
|
| material inlet temperature (℃): |
5
|
material outlet temperature (℃): |
4-20
|
sterilizing temperature (℃): |
95-141
|
| warm-keping time (s): |
4-15
|
steam pressure (Mpa): |
0.6
|
compressed air pressure (MPa): |
0.6
|
| steam cost (kg/h): |
130
|
compressed air cost (L/H): |
50
|
electrisity(without homogenizer) (kw): |
4.5
|
