carbonated drinks filling machine/line,China Zhonguan price supplier

carbonated drinks filling machine/line

FOB Price:Price can be negotiated

Production Capacity:15sets

Payment Terms: FOB shanghai

Update Time:2014-11-15

Contact Supplier

Product Description

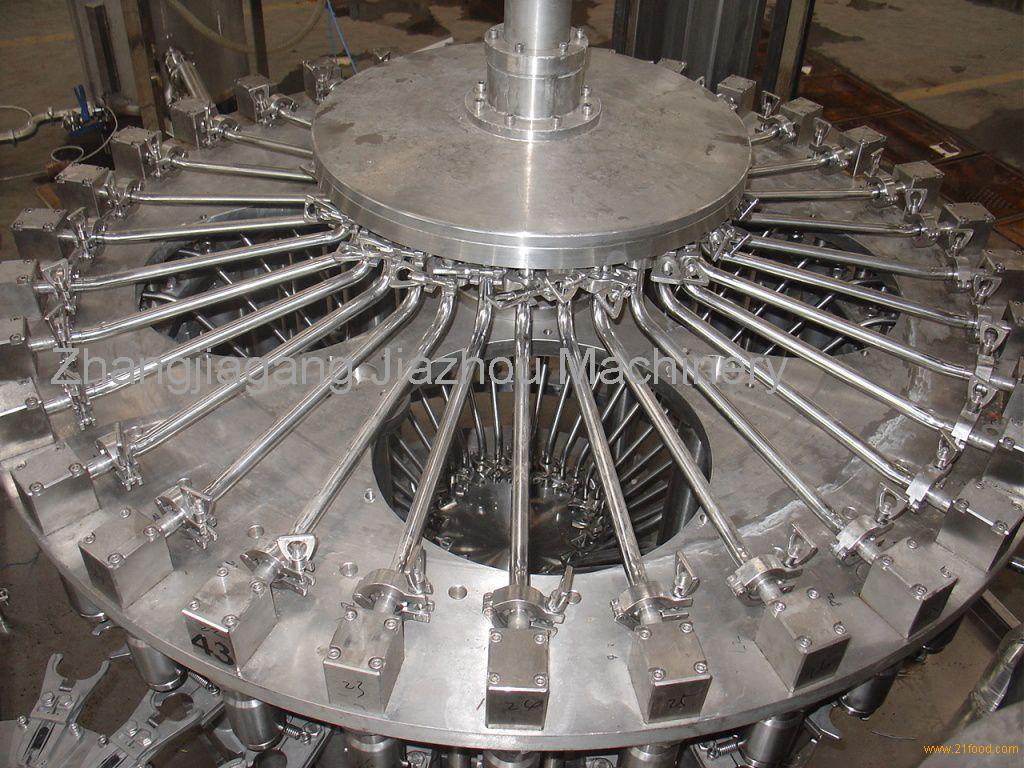

Carbonated drinks filling machine/line

1. All parts, for instance, filling valve, which directly contact medium are made of stainless steel. So it conform to the requirements of food sanitation.
2. Sealing parts are made of heat-proofing rubber, in order to meet the technique requirements of users to sterilize the whole machine at high temperature.

3.The carbonated drinks filling machine/line programmable controller to realize fully automatic control from bottles entering to finishing packing.

4.The carbonated drinks filling machine/line advanced magnetic coupler to regulate cap-screwing torque, in order to assure capping quality.

5.The carbonated drinks filling machine/line using transducer as speed regulator, so the user can regulate the machine easily to suit different power requirements. Adopting balanced pressure filling principle and spring valvers in order to assure Beverage quality.

carbonated drinks filling machine/line

Model	DYGF14125	DYGF16165	DYGF24248	DYGF32328	DYGF404010	DYGF505012	DYGF606015	DYGF808020
Filler/Capper heads	16126	18186	24248	32328	404010	505012	606015	808020
Bottle diameter(mm)	φ =50-100 H=170			φ =50-110 H=160-340
Production capacity(350ml)(b/h)	2000~4000	4000~6000	8000~10000	10000~12500	12500~15000	16000~20000	20000~24000	26000~32000
Filling temperature º C	0~5
Filler type	Balanced pressure filler
Spraying pressure(Mpa)	0.2-0.25
Filling pressure(Mpa)	0.15~0.35			0.2~0.4
Motor power(kw)	2.2+0.55+0.12	2.2+0.55+0.18	3+0.55+0.18	5.5+0.55+0.18	7.5	11	15	19
Overall dimension (LWH)mm	230016002500	260019202550	310022002800	385030002850	485038002750	575035502750	650055002750	768066402650
Weight(kg)	2800	3650	4800	6800	8650	10500
