CE certificated table water production line,China CHU price supplier

CE certificated table water production line

FOB Price:Price can be negotiated

Production Capacity:20 Set/Sets per Month table water prod

Payment Terms: US $8,000 - 40,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

Monobloc 3 in 1 table water production line
1 Sus304 stainless steel
2 CGF XGF series water bottling machine
3 CE BV IS

CE certificated table water production line

The range of application

This machine is used for fill in PET and PE bottles. Our factory also provide machines for glass bottle and cans, if you need contact us with clarifications.

Product Description

(1)Water filling line/liquid filling line includes: Washing-filling-capping 3 in 1 machine, lamp inspection, label shrinking machine, inkjet printer, hot shrink film packer and conveyors. It is a full automatic production line.

(2)The water filling line is mainly used in the beverage filling operations. The three functions of bottle wash, fill and seal are composed in one body of the machine. The whole process is automatic.

(3)The machine is used in filling juices, Mineral Water and purified water in bottles made of polyester and plastics. The machine can also be used in hot filling if being installed with temperature controlling device. The handle of the machine can be freely and conveniently turned to adjust the machine to fill various types of bottles.

(4)The filling operation is faster and more stable because the micro pressure filling operation of the new type is adopted. There the output and benefit of the machine is higher than the machinery of the same specifications.

(5)The advanced OMRON programmed controller (PLC) is adopted to control the machine to run automatically while a transducer is used in the bottle -entering chains to adjust speeds and coordinated with the transducer of the main machine to make the operations of moving bottle forward steadily and reliably.

(6)It is convenient to operate with higher automation because every part of the machine is inspected to run with photo electricity, On the bases, the filling parts of the machine can be changed into filling methods of lower vacuum.

(7)The filling category of lower vacuum (Z type machine) is applicable in glass bottles, filling alcohol, soy and such like materials. The aluminum theft proof cap and plastic cap can be adopted. The machine is an idea-preferred equipment for beverage makers .

Main Accesories

(1) Imported parts of apparatus. controlled with LG programmed controller.

(2)Turk parts of checking made in Germany.

(3) Imported sprayers with explorer.

(4) Yadek air pressing parts made in Taiwan, China.

(5) Stainless steel roller structure especially made by datong company has high steenght, no bottles falling long life Automatic bottles lowing and meeting equipmentwith credible function.

Capacities

Main Technical Data
Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110=170 330-2250ml
Washing pressure(kg/cm 2 )	2-3
Motor power(kw)	Main motor 2.2kw	Main motor 2.2kw	Main motor 3kw	Main motor 5.5kw	Main motor 7.5kw	Main motor 11kw	Main motor 15kw	Main motor 19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	15000

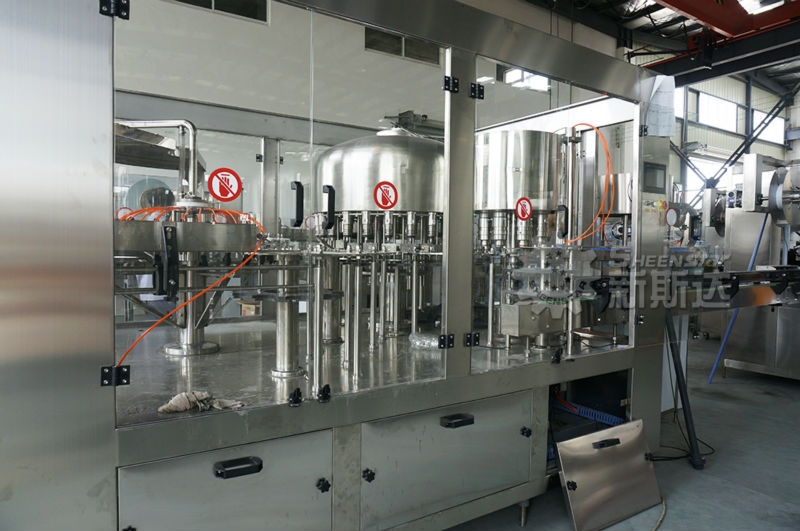

Appearance of drink water Filling Machine

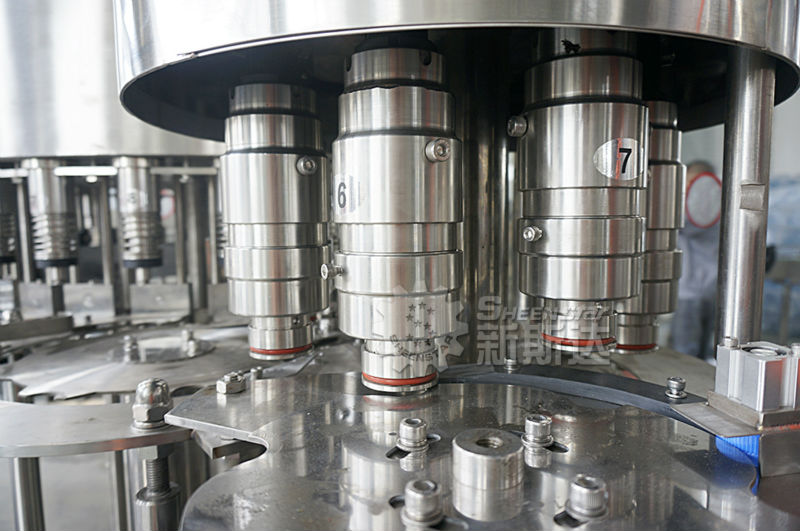

Rising Part & Filling part & Capping part

How to work?

The bottles will be automatically goes into the machine from conveyors by air fan.
The bottles will be washed, filled, capped automatically.
For more informations, please leave your inquiry here, we will send you videos for good presentation.

FAQ

Q: What capacity can you offer?

A: Refer to the capacy diagram above the pictures.

Q: Can you provide the complete mineral water produciton line?

A: Yes, we can!

Q: Do you have technical support after we purchased your machines.

A: Absolutely! We will arrange our professional engineers to go aboard to your factory, they will teach you how to install and maintainese the machines you purchsed. Or help you to fix machines if it is broken.

Q: If I buy your machines, can you offer us wear-out spare pats?

A: No problem! We will offer you 1 year free wear-out spare parts. As well as 1 year warranty. Once your machines are broken or doesn't work within 1 year and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or facetime. Secondly, if the phone solutions does't work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.

Our Services

Fast and effective after-sale service
Stable high quality of machines (Customer feedback & CE, BV, ISO Certificates & Alibaba Supplier Assessment)
Competitive price
Quality-packaging
1-year warranty

Therefore, any questions please leave your messages here, we will contact you soonly.

Company Information

Certificates

Packings

Packaging & Shipping

Type:	Filling Machine	Condition:	New	Application:	Beverage,Machinery & Hardware
Packaging Type:	Cans,Bottles,Barrel	Packaging Material:	Plastic,Glass	Automatic Grade:	Automatic
Driven Type:	Electric,Monobloc machine	Voltage:	380V	Power:	3.13kw
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	CHU	Model Number:	CGF24-24-8
Dimension(LWH):	1800 x 1500 x 2200 (mm)	Weight:	2500kg	Certification:	CE BV ISO
After-sales Service Provided:	Engineers available to service machinery overseas	Name:	Monobloc 3 in 1 table water production line	Brand:	SHEENSTAR
Category:	Bottle filling machine	Machine Material:	Sus304 stainless steel	Processing Type:	Plastic Bottle
Color:	Silver	Control:	PLC	Country of origin:	Jiangsu China
