This is a customized filling line suitable for 6kind of small candies
automatic filling, capping, labeling, sleeve etc
Applications:

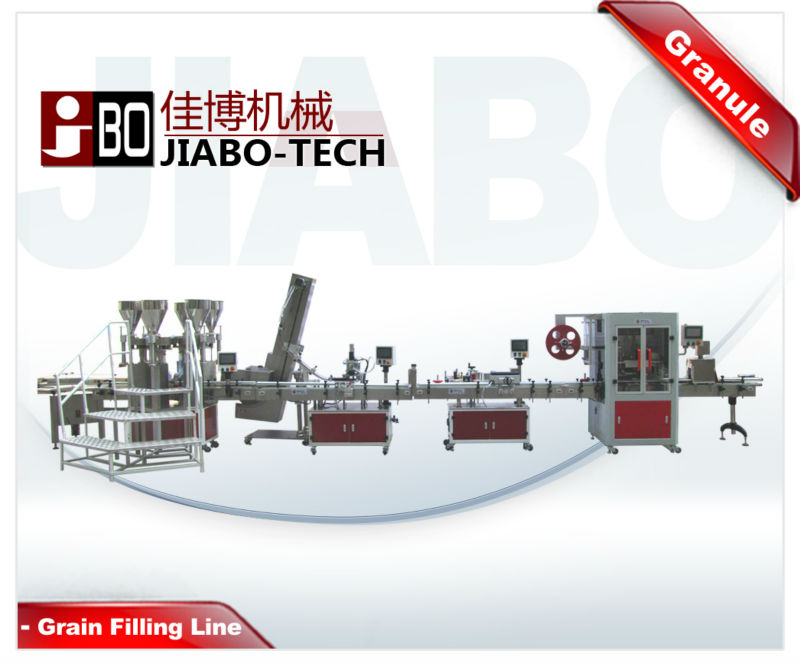

This is a customized filling line suitable for 6kind of small candies. Including automatic bottle feeder, 6 volume cup filler, automatic cap feed and capping machine, labeling machine, sleeve machine and shrink tunnel
It is also suitable for packing many kind of Seasoning and flavor
It is also suitable for packing small free flowing granule into bottle.
Details of each machine:
| Rotary Filling Machine RT-1500 |
|||
|
|
Main Parameter: 1.Motor:Step 2.Machine body:SS304 3.Turn table diameter:1500mm 4.Speed:0-80Bottles/min 5: 380V,50HZ, 3PHASE, 100W 6: Variable speed controller 7: Net weight: 80kg 8:Dimension:1400L*1200W*1000mm |
||
| Automatic Six Volume Cup Bottles Filling Machine SK-6 |
|||
|
|
Technical Parameter: |
||
| Fill Way |
Measuring cup |
||
| Feed Way |
Chain conveyer |
||
| Filling Volume |
20-100ml |
||
| Material |
Free flowing granule |
||
| Filling Accuracy |
± 0.3-1% |
||
| Speed |
10-40bottles/minute |
||
| Container |
Round bottle(According to the customers) |
||
| Power supply |
AC 220V ± 5% 50HZ 5KW |
||
| Contact Parts |
SUS304 |
||
| Weight |
1200KG |
||
| Overall Dimension |
1300*1400*2300mm |
||
| PLC controller |
Mitsubishi |
||
| Touch screen |
WEINVIEW,Colours,5.7 inches |
||
| Automatic Capping Machine (With cap feeder) CP-80 |
|||
|
|
Main technical parameter. 1.The lid transmitted by elevator 2.bottle and lid fix position by photocell 3. Use Cylinder press cap to bottle 4.Speed:0-40bottle/min 5.Cap diameter:60-80mm 6.Power:1.1KW , 220V,50/60HZ |
||
| Labeling Machine LB-150 |
|||||
|
|
Technical Parameter |
||||
| Label Width |
15-150mm |
||||
| Product Diameter |
Dia:8-20mm,Length:15-150mm |
||||
| Label Roll |
Outer: Φ300mm,Inner: Φ76mm |
||||
| Accuracy |
±1mm |
||||
| Speed |
40-80pcs/min |
||||
| Weight |
About 120KG |
||||
| Electric Source |
220V,50HZ |
||||
| Overall Dimension |
800L×600W×1200H(mm) |
||||
| The main electrical configuration |
|||||
| PLC |
Mitsubishi |
||||
| Touch Screen |
WEINVIEW ( TAIWAN ) |
||||
| Sleeve Machine+ Shrink Tunnel |
|||||
|
|
|||||
| Sleeve Machine SR-100 |
Shrink Tunnel ST-100 |
||||
| Bottle mouth diameter |
50-80mm |
Max Bottle Diameter |
120mm |
||
| Label Size |
Length:30-70mm, Thickness: 0.03-0.08mm |
Max Bottle Height |
400mm |
||
| Speed |
100Bottle/min |
Speed |
0-15m/min |
||
| Power |
1.2KW,220V |
Shrink |
6800W |
||
| Overall Dimension |
900L×900W×1800H ( mm ) |
Motor Power |
120W |
||
| Weight |
About 100KG |
Machine Length |
1000mm |
||
| Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Food,Medical,Chemical
|
| Packaging Type: |
Bottles
|
Packaging Material: |
Plastic
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Electric
|
Voltage: |
380v
|
Power: |
10KW
|
| Place of Origin: |
China (Mainland)
|
Brand Name: |
JIABO
|
Model Number: |
SK-6
|
| Dimension(L*W*H): |
10000*1000*2000mm
|
Weight: |
1400KG
|
Certification: |
CE
|
| After-sales Service Provided: |
Overseas service center available
|
Industrial Use: |
Candy
|
Material: |
Plastic
|
