chicken feet processing line,chicken feet peeling line,China MG price supplier

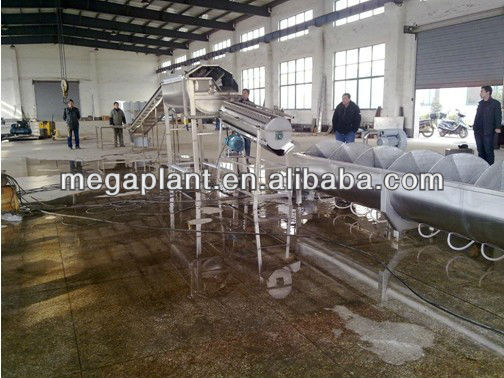

chicken feet processing line,chicken feet peeling line

technical specifications of equipments

01.automatic continuously chicken feet scalding machine

1.working ability: 2000 kg/h

2.Scalding time:40-60 seconds ( adjustable )

3.Scalding temperature: 58°C~62°C

4.Maximum pressure of the fan machine: 18 kpa

5.motor: 0.55+1.5=2.05KW/380V/50 HZ

6.dimension: 4.0/0.8/2.0m

02. Automatic continuously chicken feet peeling machine

1. Working ability: 2000 kg/h

2. Chicken feet skin peeling time: 30-45 seconds ( the size and quantity of the chicken feet will influent the time)

4.motor: 5.5 KW/380V/50 HZ

5. dimension: 3.0/0.5/1.6m

03. Chicken feet pre Cooling Machine

1. Working ability:2000 kg/h

2. Pre-cooling time: > 15 min ( adjustable)

3. Effective pre-cooling length: 5000 mm

4. motor: 1.5+0.55kw=2.05kw/380V/50HZ

04. Chicken feet belt Conveyor

Belt width: 300 mm, length: 3m, height:1.5m

Motor: 0.75 kw

Stainless stees made machine frame and the machine feet

Stainless steel made drum and plate

Stainless steel made tension equipment

Food level transmission belt, with baffles at both sides

Manually mechanical speed adjustable motor

05.Belt conveyor with working table

Belt width: 300 mm, length: 3m, height:0.8m

Motor:0.75kw

Stainless stees made machine frame and the machine feet

Manually mechanical speed adjustable motor
