Chocolate bar flow wrapping machine,China Papid price supplier

A dvantage:

    Avoid the traditional packaging industry needs a large number of employees,low efficiency,easy cause second pollution.

   S pecialized in automatic feeding packaging solutions,manufacture and development of series automatic feeding packaging lines,has been widely used in biscuits,cakes,Swiss rolls,bread,Dorayaki,waffles,chocolate,candy,frozen and other non-food fields

Technical specifications

Model: ZP-3 8 0

Packing speed: 35-180 bags/min

Bag size: (L)115-280mm(W)30-160mm(H)5-60mm

Film width : 90-350mm

Packing material: OPP/CPP,PT/PE,KOP/CPP,ALU-FOIL

Dimension: (L)4000X(W)950X(H)1600mm

Heat power: 2.1kw

Motor power: 0.55+0.75kw

Total power: 3.4kw

Overall weight: 60 0kg

Optional Devices

•Printer

•Spray Alcohol device

•Guess device

•Brush

•Convyer length

•The base of cuter with hole

Principal capability and structural features

1. The bag length is free of manual setting,the equipment may automatically detect and set the length.

2. Simplified mechanic gearing,easy to maintain,little vibration,little wear and "long life".

3. The main control circuit takes the single chip develop oped by our own company,digital screen display and controlled by transducer.Perfect inter face between operator and machine.Integrated,direct and convenient operation.

4. The capacity and the length of bag take double frequency converter control with stepless speed shift and wide adjustment.It can match well with the former working procedure of production line.

5. Highly sensitive respond photoelectric device can follow automatically and accurately.

6. Independent temperature control for each sealer to make the beautiful and tight sealing and suitable for a wide variety of flexible packing material.

7. Device for intermission charging and alcohol spray can be mounted.

Features of automatic plastic film packing production line:

Advantages of automatic sorting system:

1. Applicable to the products orderly or disorderly manner

2. Simple structure,easy operation, covenient adjustment

3. Easily to take off and cleam the PU food belt

4. Optional pneumatic deviation rectifying device

5. Distribution and conversion according to the feeding system and Packaging Machine state.

Advantages of automatic feeding system:

1. Precision,high speed positioning

2. Different products replacement easily operation,simple setting

3. The PU belts can be easily destuffing without tools

4. simple structure,conveient to clean

Advantages of automatic packing machine:

1. Double paer support roll device

2. Optional air inlet device or spray alcohol device

3. High quality components

Scope of application:

    Applicable for packing various solid regular objects,such as pie,cake,biscuit,bread,moon cake,medicine,ets.Any kind of products and so on.

Packing bag sample:

Our Service :

•We are a manufacturer of feeding machinery and packing machinery.

•Selling feeding and packing machine all over the world.

•Please visit our website for more details: http:www.ruipuhua.com

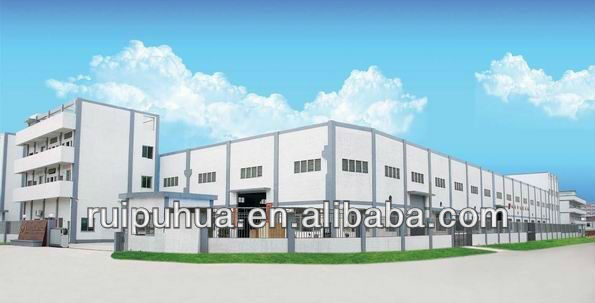

Our factory
