Chocolate Bar Packing Machine

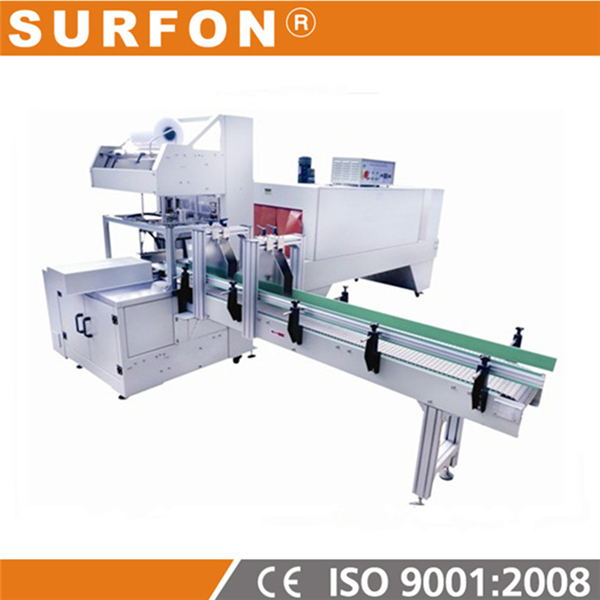

  GH-6030AH + SF-6040E Automatic Sleeve Sealer and Shrink Tunnel is designed for a single item or objects without tray. This machine can connect with other production machines with the function of automatically feeding, wrapping, sealing, shrinking and cooling, unmanned assembly-line to realize unmanned operation; There are many forms of packaging : 6 bottles (2 × 3), 8 bottles (2 × 4), 9 bottle (3 × 3), 12 bottles (3 × 4), 15 bottles (3 × 5), 18 bottles (3 × 6) , 20 bottles (4 × 5), 24 bottles (4 × 6) etc;

  GH-6030AH introduces internationally advanced technology and production process with reliable performance characteristic and also has automatic counting daily-output functions;

  The usage of Schneider PLC and touch screen to achieve the integrations of mechanism, electricity and pneumatic;

  The machine can change the packing forms according to the production requirements, such as two rows, three rows, or four rows without tray. When replacing packaging, you just convert the switch on the panel and replace the supporting material block;

  Feeding Conveyor and film-feeding is smooth with gear-box motor. When packaging color film, it needs to increase the color positioning system to make accurate positioning;

  A specially designed sealing knife makes sure solid sealing line, no cracking and anti-stick;

  Feeding conveyor can be designed in the left side or right side as per your demands;

  SF-6040E using imported double air circulation motors, so that the hot air in the oven can spread more evenly to get a good shrink effect;

  Using solid steel rollers covered by silicone tubes which makes chain conveyor durable. We can also choose different material conveying chain according to the different products;

  The use of French Schneider frequency inverter controls transmission speed which has the function of infinitive speed;

  Large volume of wind cooling system makes products rapidly cooling after heat shrinking. We also can add aluminum table for your option, so that the products will not drop;

  The machine is widely used in the lines of beer, mineral water, cans, glass bottles; round bottles without tray products’ shrink packaging.

The Parts we Use

  Pictures of Other Machine

  Packaging & Delivery

Packaging: wooden boxes

Delivery time: 30 working days

  We can also design the machine as your request, just tell us the size and weight of your products, we'll make suitable machine for  you.

If you want to know more information about this machine, welcome to contact us!

Pictures of the Certifications

Shrink Films Problems and Solutions

1.Burn Out

Solutions:

1.   No or not enough air evacuation holes in the shrink films bag. Increase the number of air evacuation holes.
2. Shrink tunnel temperature set too high. Lower the shrink tunnel temperature.
3. Shrink tunnel conveyor speed set too slow. Speed up the shrink tunnel conveyor speed .

2.weak seal

Solutions:

1.   The temperature of the sealing blade is too high. Lower the sealing blade temperature.
2.   Sealing line position is not suitable. Sealing line should be at the middle of the product.
3.   Seal pressure apply on the film is not even. Modify the sealing blade and make it even. Check the seal pad to see whether the pad is damage or not. If yes, replace the seal pad.
4.  Sealing surface of the sealing blade or sealing base dirty. Cleaning the surface of the sealing blade and sealing base.
5.   Damage of the seal pad or seal tape. Replace the seal pad or seal tape which is damage.
6.  The sealing cycle is too fast, not enough time to complete sealing. Slow down the sealing cycle.
