Chocolate Biscuit Bar Automatic Packing Machine,China YB price supplier

Chocolate Biscuit Bar Automatic Packing Machine

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month as customers

Payment Terms: US $4,300 - 4,500 / Set

Update Time:2014-09-28

Contact Supplier

Product Description

Chocolate Biscuit Bar Automatic Packing Machine
Paking rate:30-220pcs/min
High performance
PlC controller from

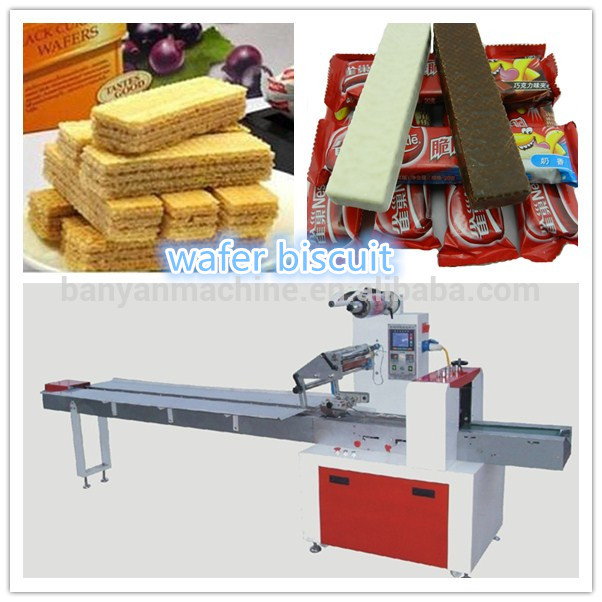

Chocolate Biscuit Bar Automatic Packing Machine

The sample

Photos of automatic soap Packaging machine

Usage

Applicable for packing bread,chocolate,biscuit,vitelline pie,lollipop,moon cake,ice cream,card,

wet issue,spoon,toothbrush,soap,slipper,scourer ball,syring,hardware and commodity and so on.

Function and features

1.PLC control system,high sensor photoelectric color chart tracing.

2.The bag length need to be set,machine could detect it automatically.

3.High performance machine,simple operation.

4.Gear system besides double frequency converter contoller,which making simpler

operation,high-speed wroking and more stable.

5.Color touch screen,the first third-generation pillow type packing machine in China.

Technical parameters

Model	YB-100
Packing speed	30-200bags/min
Width of film	90-220mm
Making bag size	L65-160mm,W30-100mm,H5-35mm
Total power	220V
Machine size	L4000 xW950 XH1600mm
Net weight	400kg
Warranty period	one year
Certificate	CE

Delivery of our machine from factory

PHOTO WALL(our achievements)

Type:	Other,wrapping machine	Condition:	New	Application:	Commodity
Packaging Type:	Bags,Film,Pouch	Packaging Material:	Plastic,Paper	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	220V	Power:	2.7KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	YB	Model Number:	YB-100
Weight:	400kg	Dimension(LWH):	L4000 X W950 XH1600mm	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Making bag size:	L65-160mm,W30-100mm,H5-35mm	Film width:	90-220mm
Controller:	PLC from Japan	Operate panel:	color touch screen from Taiwan	Sealing type:	pillow sealing type
Warranty:	one year	Gear system:	simpler operation	Paking speed:	30-220bags/min
Inverter:	double frequency
