Cinnamon Linear Vibrating Screen Machine,China zhenying Linear Vibrating Screen Machine price supplier

Cinnamon Linear Vibrating Screen Machine

FOB Price:Price can be negotiated

Production Capacity:300 Set/Sets per Month Linear Vibratin

Payment Terms: US $1,000 - 10,000 / Set

Update Time:2014-09-26

Contact Supplier

Product Description

Linear Vibrating Screen Machine
1.High output
2.20 years experience for vibrating screen
3.stainless steel

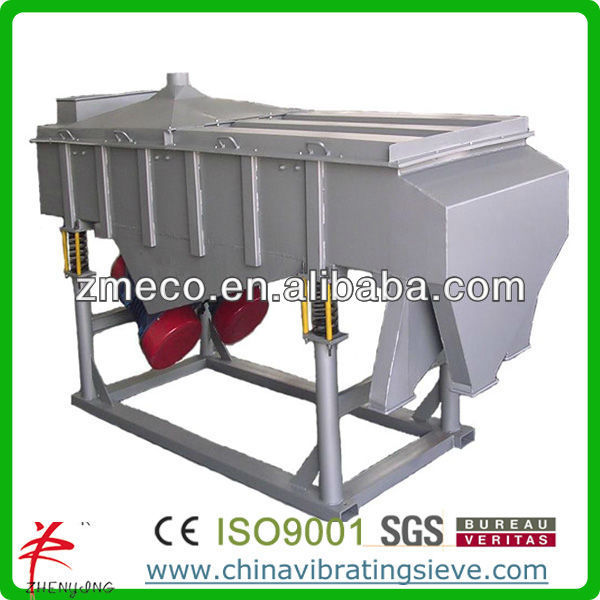

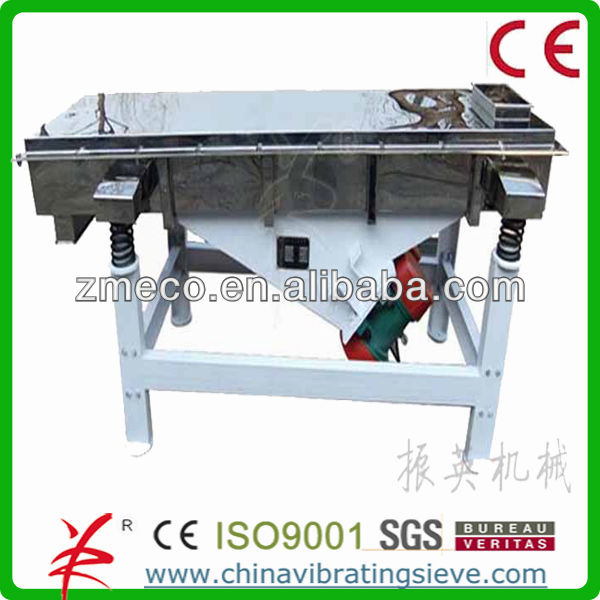

Linear Vibrating Screen Machine

Description

Linear Vibrating Screen Machine uses wonderful vibrant motor as power source,

so that the materials c an be thrown up on the sieve and forward to making a linear moving path.

Linear Vibrating Screen Machine can be equipped

with single or multi-deck to realize the grading, removing impurities, dust, testing,

washing selecting, dehydration and so on.

Advantage

1. Linear Vibrating Screen Machine have high sieving efficiency, high utilization

ratio of screen, with bouncing balls set under the

screen which eliminates mesh blockage, increasing precision of sieving.

2. Continuous working.

3. Fully enclosed structure avoids dust overflow, realizeng the request of sanitation.

4. Rubber springs may be used on customers’ requests, which would considerably reduce

running noise, improving labors’ working environment.

5. Simple and rational tensioning mode of screen, easy to replace.

6. The screen frame may be replaced as every different mesh numbers, saving running cost.

IN ADDITION: WE HAVE EXPERT GLOBAL MARKING EXPERIENCE FOR TEN YEARS SO WE

CAN RESPOND TO YOUR DEMAND QUICKLY

Model	Screen Specification (mm)	Layer	Mesh Size (mm)	Particle Size (mm)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (KW)
Model	Screen Specification (mm)	Layer	Mesh Size (mm)	Particle Size (mm)	Vibrating Frequency (r/min)	Double Amplitude (mm)	Power (KW)
ZY SZ525	500×2500	1--6	0.074-10	0.06-15	960, 1450	4--8	2×0.4, 2×0.75
ZY SZ1020	1000×2000	1--6	0.074-10	0.07-20	960	4--8	2×0.75, 2×1.5
ZY SZ1025	1000×2500	1--6	0.074-10	0.07-15	9,601,450	5--8	2×0.4, 2×0.75
ZY SZ830	800×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5
ZY SZ1030	1000×3000	1--6	0.074-10	0.1-20	960	6--8	2×0.75, 2×1.5
ZY SZ1224	1200×2400	1--3	0.074-10	0.1-23	960	6--8	2×0.75, 2×1.5
ZY SZ1230	1200×3000	1--3	0.074-10	0.1-23	960	6--8	2×1.5
ZYSZ1530	1500 × 3000	1--6	0.074-10	0.1-23	960	6--8	2×1.5

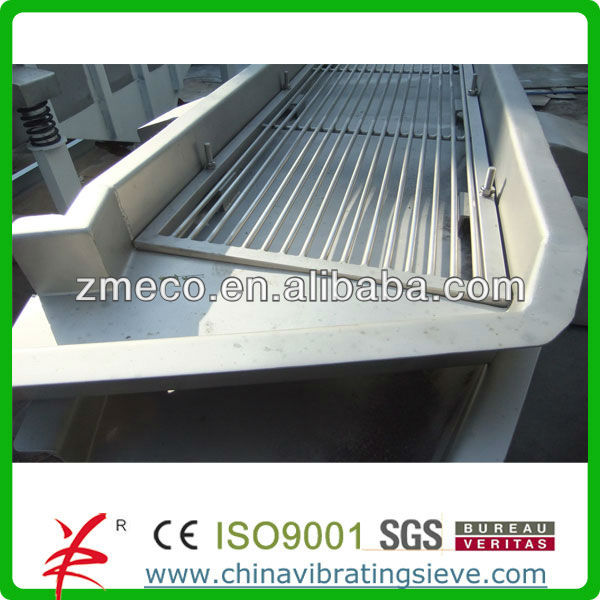

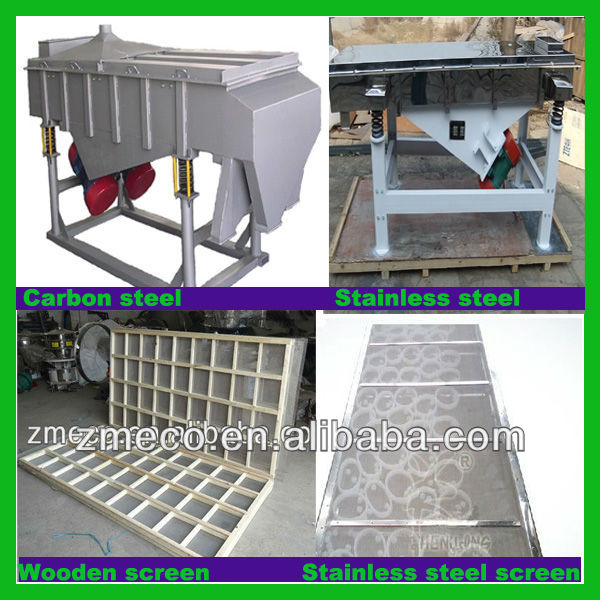

Sieve Mesh

Spring

Linear Vibrating Screen Machine

High Precision salt Vibrating Screen Design is widely used in grinding materials,

chemical, construction, chemicals, pharmacy, metallurgy, ceramics, fertilizers, coal

industry to screening and grading the granular and powder bulk materials.

Xinxiang zhenying machinery equipment co.ltd is one of the most professional

machinery factory which produces vibration machinery. We have abundant technical

force, well-appointed products and well-equipped examines. And the most important

aspect you choose our company is that we have the rich design, manufacture, debugging

tilter experience. Simultaneously, we have grasped advanced technology, have been

endeavoring to develop new products and established comprehensive technical cooperation

relations with many design research institutes as well as some universities and colleges.

Depending on first- level technology and superior quality our

products had obtaining mark-able economic and social efficiency.

Mobile phone:(86)15637390520

Skype: cnzhengying888

QQ: 1833271893

MSN:cnzhengying888(hotmail)

Condition:	New	Type:	Linear	Application:	cinnamonsand,silica sand,fertilizer,fine copper powder,coco seeds,coal
Place of Origin:	Henan China (Mainland)	Brand Name:	zhenying Linear Vibrating Screen Machine	Model Number:	ZYSZ
Voltage:	220V,230V,415V,480V	Power(W):	0.18--2.2KW	Dimension(LWH):	500*2000mm
Weight:	300kg	Certification:	CE&ISO9001:2008	Warranty:	13months
After-sales Service Provided:	Engineers available to service machinery overseas	Aplication:	cinnamon,wet sand,sand,silica sand,coco seeds.coal	Frequency:	50HZ,60Hz,optional
Capacity:	5-10Tons/hour	Material:	SUS304/316L,carbon steel	Layer:	single/double/three deck is suggested
Amplitude:	11mm	Function:	classification or remove impurity	OEM:	Available
Instruction Video:	Available	Noise:	<70db
