Circel Runout Tester|Coaxial Tester,China Cell price supplier

Circel Runout Tester|Coaxial Tester

FOB Price:Price can be negotiated

Update Time:2023-07-15

Product Description

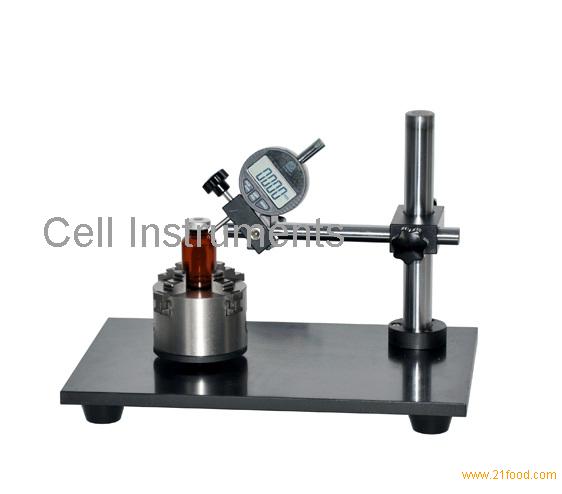

Circle runout tester measures the coaxial deviation of ampoule bottle and penicillin bottle. It is essential model for pharmaceutical companies and testing institutions. It's based on YBB00192003.

Principle

The bottle is fixed on a rotating plate and the bottle mouth is contacting with dial gauge. Record the maximum and minimum reading after rotating a full circle of 360 °. The 1/2 of the difference between the two is the vertical axis deviation value.

Technical Data

Sample Diameter: 5mm-80mm

Test Rage: 0-12.7mm

Division value: 0.01mm

Measurable Height: 15mm-300mm

Dimension: 330mm(L)*220mm(W)*230mm(H)

Weight: 12Kg

Standard

YBB00332002, YBB00192003, GB 8452, GB 2639

Configuration

mainframe, digital measuring head
