CNC cone making machine

Main Specification:

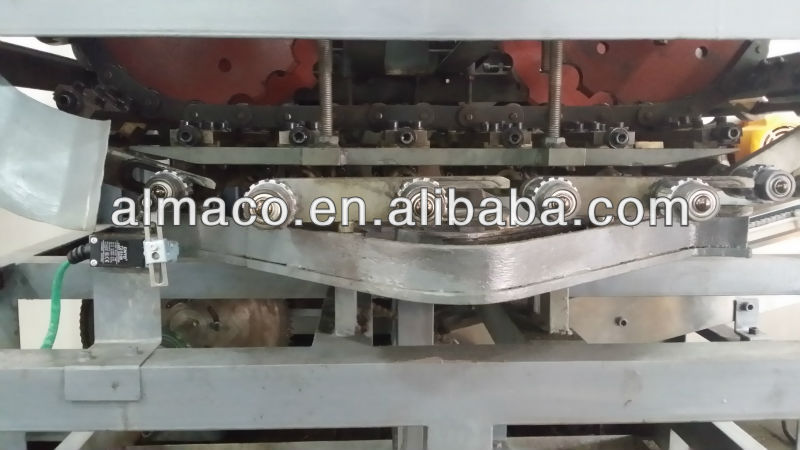

45 units baking plates sized: 260mm X 240mm are made of high

quality cast iron "QM#500" linked to form an endless chain,
connected with high temperature bushes and roller bearing, high
temperature food grade grease rilled in between, 24 hours
production is possible, each baking plate produce 2 wafers.

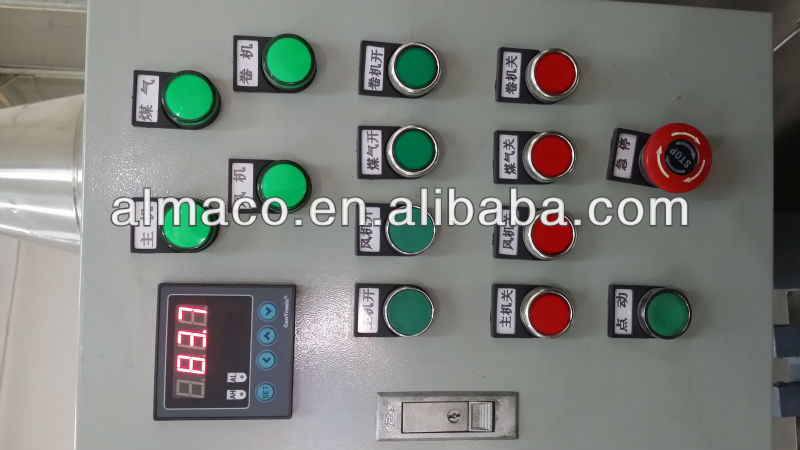

• Automatic pilot for gas oven, control panel with temperature
indicator.

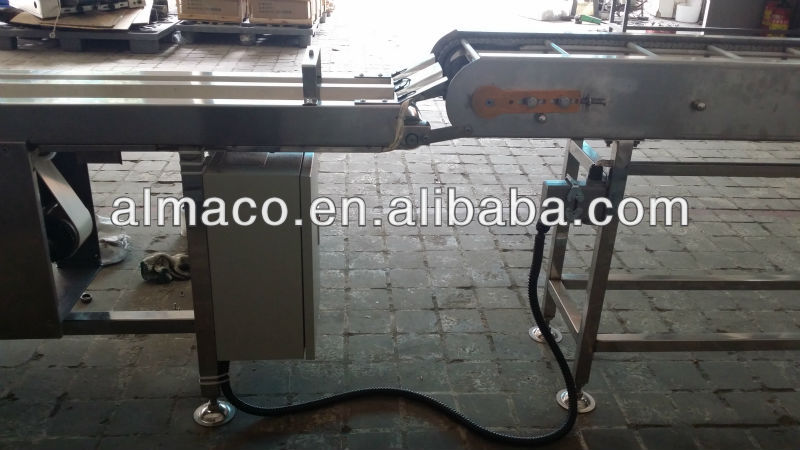

• One unit cooling conveyor, 6 meters in length. Electronic speed
control from 0.5 meter to 3 meters per minute in speed. FOOD
GRADE PVC conveyor surface table, frame made of #201
Stainless Steel.
• Design of sugar cone: Length 120mm ± 3mm; Flat topped cone,
angle 22° / 23°; diameter 48mm+2mm 0; top ring 3mm width;
Length 100mm ± 3mm; Heart shaped cone, angle 22 °/ 23°;
diameter 44mm+2mm 0; top ring 3mm width.

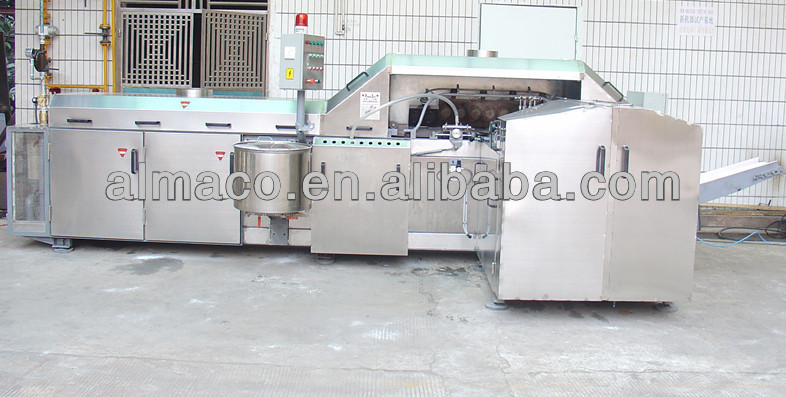

Automatic Rolled Sugar Cone Machine
One lot of Free-Supply of Accessories : ~
A Parts for Oven & Rolling system
1. Baking Plate 260 x 240 mm 1 Complete unit
2. 22/23 degree mould & shell with axle & gear shaft for standard cone 1 set
3. Take off knife
4. Spare roller filled with High Temp Food grade grease
5. Main axle for baking plate
6. Hinge axle
7. High Temp Bushes of various type & size, ample for
Complete oven & Rolling system overhauling
8. High Temp grease (Food Grade), German made
9. Piston seal for Batter pump ( 5 pcs/set)
10. Timing belt for Rolling system
11. Timing belt for batter pump
12. Claw stamp for take off arms
B Parts for Air-gas Mixing system
1. Gas solenoid control valve
2. Gas non-return valve
3. Air-Filter
C Parts for Electric Box
1. Solenoid switch for main box
2. Solenoid switch for control box
3. 24 volts transformer
4. 24 volts bulb
D Others
1. Cleaning knife for baking plate & graving
Optional:
1. Batter mixer - 240 Litres
2. Batter trolley - 320 Litres
3. 6 meters Cooling conveyor
4. 3 layers metal remover
5. G.J. Brand export grade metal
Detector
