1.Widely screening scope
2.No block mesh
3.Be available in one layer or more layers
4.Customizable

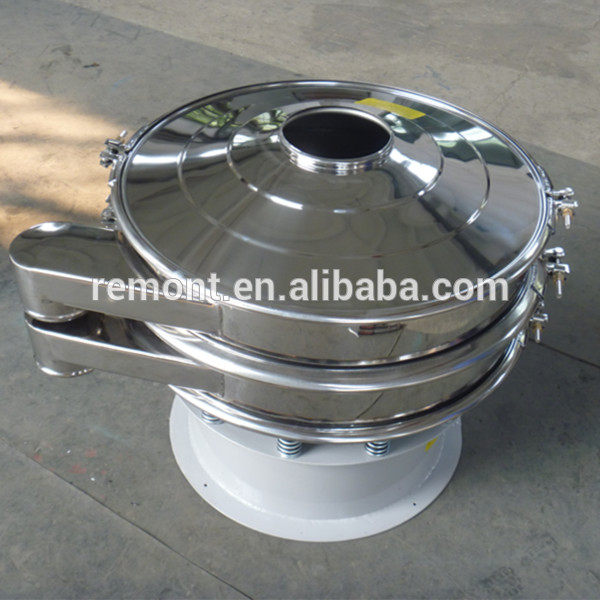

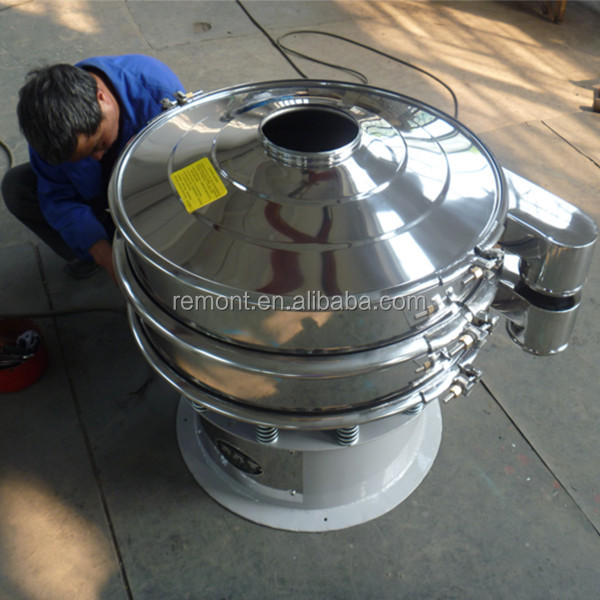

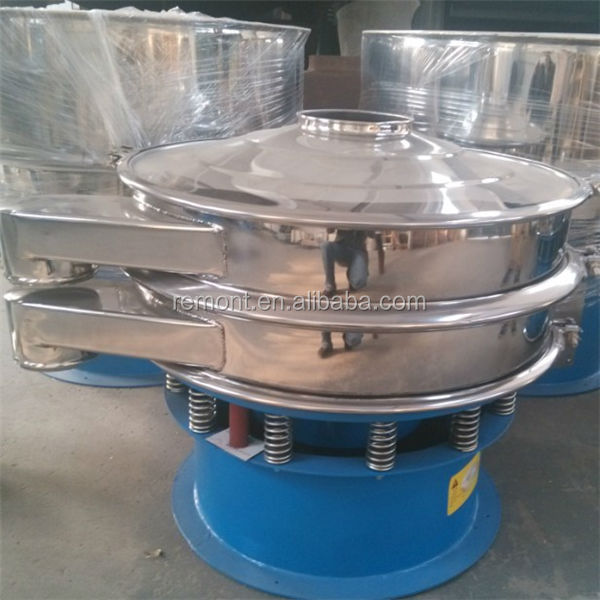

cocoa bean vibrating screen
Model | Power | Sieve diameter | Dimensions (mm) |
Layer |
M400-1s | 0.25kw | 350mm | 580*580*560 | 1 |
2s | 580*580*670 | 2 | ||
3s | 580*580*780 | 3 | ||
M600-1s | 0.55kw | 550mm | 800*800*750 | 1 |
2s | 800*800*890 | 2 | ||
3s | 800*800*1030 | 3 | ||
M800-1s | 0.75kw | 750mm | 900*900*750 | 1 |
2s | 900*900*890 | 2 | ||
3s | 900*900*1030 | 3 | ||
M1000-1s | 1.47kw | 950mm | 1160*1160*810 | 1 |
2s | 1160*1160*950 | 2 | ||
3s | 1160*1160*1090 | 3 | ||
M1200-1s | 1.84kw | 1150mm | 1360*1360*885 | 1 |
2s | 1360*1360*1050 | 2 | ||
3s | 1360*13601275 | 3 | ||
M1500-1s | 2.2kw | 1430mm | 1850*1850*990 | 1 |
2s | 1850*1850*1185 | 2 | ||
3s | 1850*1850*1380 | 3 | ||
M1800-1s | 3.0kw | 1700mm | 2200*2200*1050 | 1 |
2s | 2200*2200*1250 | 2 | ||
3s | 2200*2200*1450 | 3 |
1. Vibrating Separator installation,Debugging.
Provide sand vibrating sieve machineinstallation files, technical data and related soft
copies or videos etc
2. Vibrating Separator warranty
The provider guarantee the carbon black vibration screen could meet production technical standard and performance requirements indicated in the contract.
Warranty: 24 months for the machine after delivery,12 months for the motor after delivery.
3. Vibrating Separator technical support
Our company will make occasional call to find problems and solve them in time.
Provide technical support timely.
4. 24 hours website hot line service.
For big Circular vibrating screen order,to dispatch technician is negotiable. Aftersales Guarantee
Application
Warm Note
Please kindly fill the form and send it to us. it will save you lots of time in the following communication.
We ensure reply you with solution and price in 10 minutes!
Item | Specification |
Material | |
Density | |
Water content | |
Capacity( per hour) | |
Machine material | S U S or Carbon Steel |
We commit free life time replacement spares!!!
Condition: |
New
|
Type: |
Circular,M400-M1800
|
Application: |
Food Processing
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
Remont
|
Model Number: |
M1000
|
Voltage: |
220V/380V/460V
|
Power(W): |
1.47kw
|
Dimension(L*W*H): |
1160x1160x1090
|
Weight: |
365kg
|
Certification: |
ISO
|
Warranty: |
1 year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Power: |
0.25~3.0kw
|
Material: |
stainless steel
|
Diameter: |
350~1700mm
|
Sieve layer: |
1-5 layers
|
Shape: |
round
|
Design: |
customized
|
Keywords: |
cocoa bean vibrating screen
|
functions: |
Gyratory Screen
|
market: |
Asia, Europe, Africa, North America
|
