Cocoa grinding machine,China Xinan price supplier

Cocoa grinding machine

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month

Payment Terms: US $3,000 - 5,800 / Set

Update Time:2023-06-19

Contact Supplier

Product Description

1. High-Efficiency Crusher Machine
2.Model:GFSJ
3.Size of input:less than 10
4.size of output:12-120

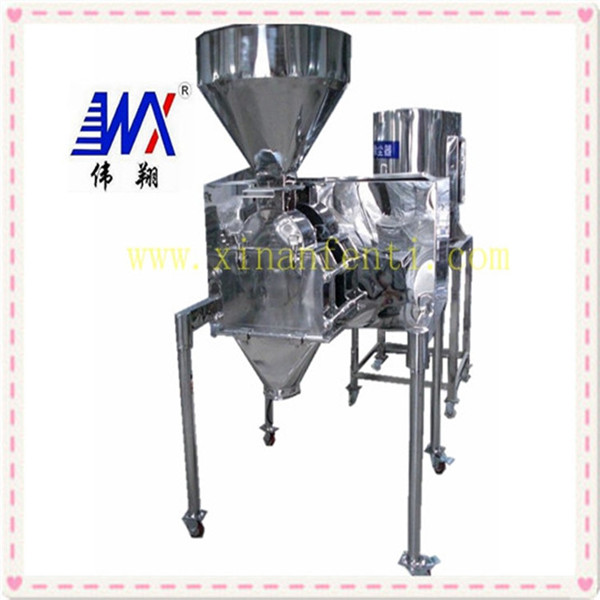

cocoa grinding machine

Main Application:

GFSJ Series High Efficiency Crusher is developed with the method of mixed powder jetting.This process is widely applied in the industry of pharmaceutics,chemical,food and etc.

Feature:

This machine has a simple structure and is easy to install or dismantle.Since it is designed according to GMP standard and made of stainless steel,the inner side is smooth enough to avoid dregs.This machine has the characteristics of stability and reliability in operation,low noise,low power consumption and rational construction.

Operating Principle:

This is high speed running equipment.It adopts a knife with a sharp edge blade and an impact blade.There are multiple choices of the knife figure and its size to crush different raw material.Granules size can be controlled by adjusting filters and the operating speed.

Technical specification:

Model	Production Capacity(kg/h)	Feeding Size(mm)
GFSJ-8	10-100	12-120
GFSJ-16	50-300	12-120
GFSJ-18	60-400	12-120
GFSJ-32	100-500	12-120

Power(kw)	Speed change(rpm)	Overall Size(L×W×H)	Weight(kg)
3	2350-4360	1050×600×1600	150
7.5	2400-4400	1100×860×1520	250
7.5	2400-4400	1000×1300×1600	320
11	2400-4400	1280×950×1600	320

Machine Parts:

Packaging & Shippment:

Certificate:

Activity:

Service :

One year guarantee for whole machine

24 hour technical support by email

Calling or door-to-door Service

User manual and detailed video/CD

Condition:	New	Type:	Pulverizer	Product Type:	Detergent Powder
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	Xinan	Model Number:	GFSJ
Voltage:	380V(or according to your requirement)	Power(W):	11kw	Dimension(LWH):	12809501600(mm)
Weight:	320kg	Certification:	ISO9001	Warranty:	One year
After-sales Service Provided:	Engineers available to service machinery overseas	Material:	Stainless steel

Company Profile

Name: Jiangyin Xinan Machinery Manufacturing Co., Ltd.

Main Products: Pulverizer,Pelletizer,Drying Machine,Mixing Machine,Crusher

Business Type: Manufacturer

Total Employees: 101 - 200 People

Established Year: 2013

Main Markets: Domestic Market, South America, Mid East, South Asia, Africa

Address: Zhutang

Our company is a professional enterprise producing mechanical products such as superfine pulverizer, cone mixer blender, high-efficient vibration sieve, grinder, trough type of blender, V type of blender, universal pulverizer, Chinese traditional medicine disintegrator and pendular granulator. With an advantageous location and convenient transportation, we are located in the center of Yang-tze River Delta which is an economic developed zone of Jiangyin Zhutang, near to Shanghai in the east and Wuxi in the south, and Jiangyin Bridge and Xicheng Highway in the north. more
