v Product Introduction

  Linear Vibrating Separator is used to separate materials into various particle sizes for further processing. Basically, it consists of the screen box, supporting device, driving unit, vibration isolation and etc.

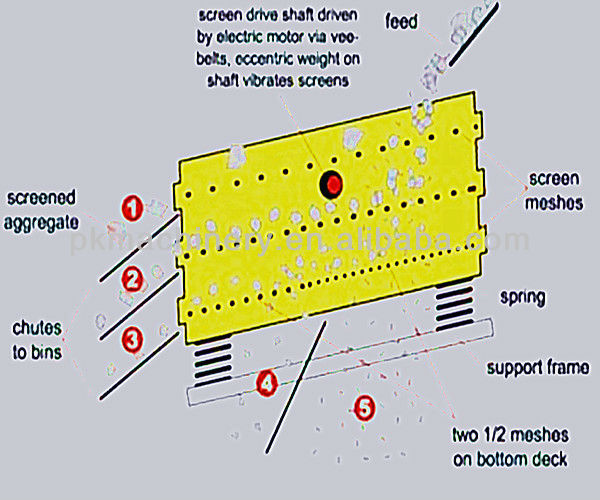

v   Working principle

  Linear Vibrating Separator uses double vibrating motors to drive, when two motors rotate synchronously and reversely, the exciting forces is generated by eccentric block are resolved in parallel to the direction of motor axis and then united as one across the motor axis direction, thereby causing the materials to be tossed and moved in a linear motion as the materials pass through the screen. The flexible balls are also available on the bottom of the Screener. The balls collide each other as the machine is in the motion, thus act as the mesh cleaning system that clear the screen and effectively prevent blocking of the materials. The scope of material size is ranges from 0.045mm—5mm, whereas the maximum size should be less than 10mm

v  Application area

The main application of  Linear Vibrating Separator  including coarse screening, grading and scalping the materials such as sand, fertilizer, gravel, limestone, soil and even grain.

ZS Series consists of dual-vibratory screener that ensures the quality of high efficient coarse screening equipment. It has two operational/driving modes: dual-vibration mode (light duty) and dual-vibration exciter mode (heavy-duty).

v  Main features

1.Low energy consumption, low noise,

2.High screening accuracy, large capacity, simple structure.

3.Fully enclosed structure, good sealing, prevent dust spillover, automatic discharge, more suitable for assembly line work.

4.Screen body parts are used copper plate and section welded together (part group between body for bolt connection) overall stiffness is good, strong and reliable.

5.Unique design of screen structure, convenient and quickly to change screen (only 3 to 5 minutes); And her mother screen fully supporting the fine screen, so fine screen can be long life, so as to reduce the consumables cost of the fine screen; In addition this design allows to using all kinds of screen (nylon, special dragon, PP network).

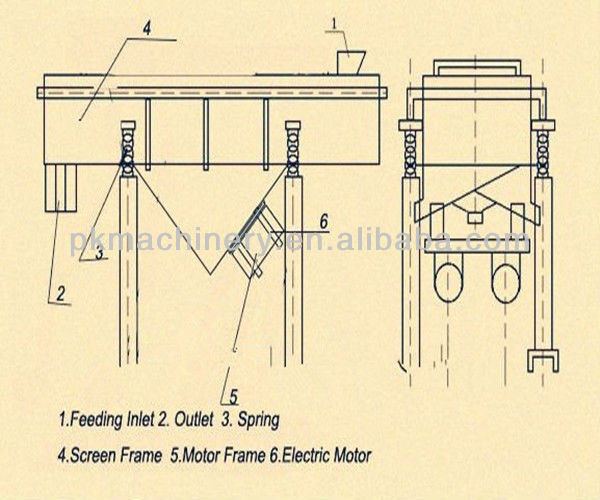

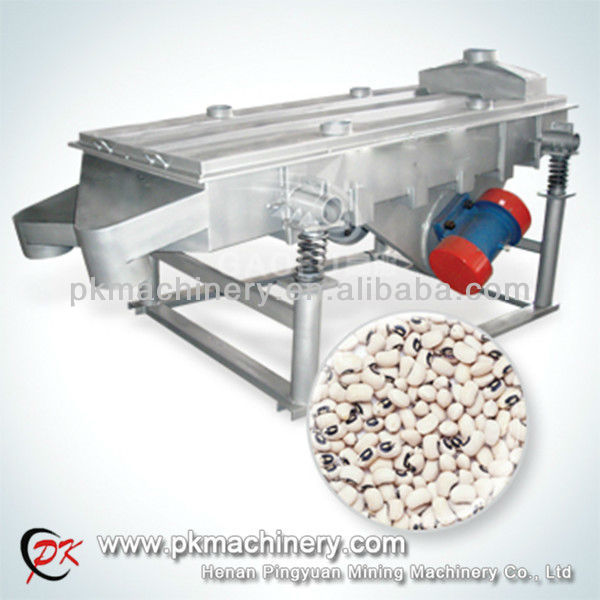

v   Machine picture

1.driving device(two kinds of driving device ,one is two vibrating motor, the other kind is ordinary motor device and exciter)

2. anti-blocking device-bouncing ball

3.damping device

v  Technical data

Notice :

When you ask quotation to us, please indicate the following contents. Thus, according to your specific requirements, we will help you choose the most suitable vibrating screen for you. we shall appreciate for your cooperation.

1.Name of the material

2.Actual throughput/ Processing capacity(t/h,m³/h)

3.Bulk density(t/m³)

4.Feeding size(mesh,mm)

  v    Welcome to visit our company

1.Customers from Germany to see the linear vibrating sieve

  2.Customers from England to see the linear vibrating sieve
