coconut water filling machine,China winmark price supplier

coconut water filling machine

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Year coconut water fi

Payment Terms: US $15,000 - 30,000 / Set

Update Time:2021-06-22

Contact Supplier

Product Description

COCONUT WATER Filling Machine
1. Water Filling Machine
2, Power: 6.5KW
3. Material: SS304

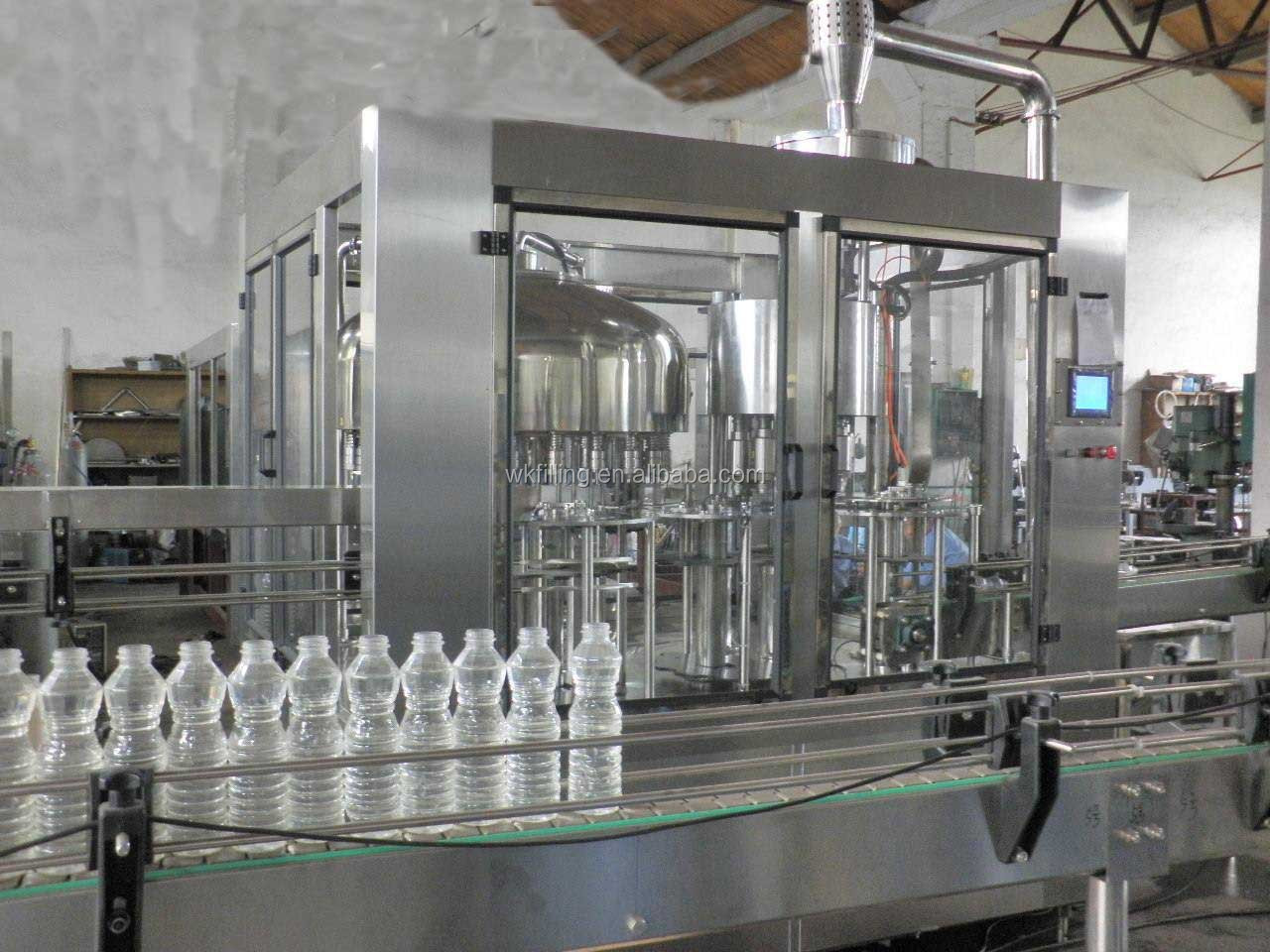

coconut water filling machine

Small Bottle water Filling machine (can fill 0.5L and 1.5L with one machine, but have to change some fittings)

These series model Tribloc Rinser Filler Capper work harmoniously with air-conveyor belt.

It especially design to fill water into pet bottle, the process chart is below:

Rinse the empty bottle with clean water ---filling the mineral water into the bottle ----capping the fillied bottles with screw caps

It integrates 3 functions in one machine.

Technical Parameter

Model	18-18-6
Filling Capacity	4000~6000 on 500ML PET Bottle, so for your 1.5L bottle is about 1300 to 2000BPH
Rinsing/Filling/Capping Head Quantity	18/18/6
Suitable PET bottle size	Diameter Φ50~Φ95mm Highness:160~320mm, Bottle neck: 28mm, for bottle 200-2250ml
Suitable to fill	Water, wine & other non-carbonated drink
Washing Water Required	1000 liter to 1200 liter per hour
Washing Pressure Required	0.4MPA
Working Power	220/380V AC 50/60HZ 3-phase, (other power supply is available)
Control Panel Power	24V DC
Filling Pressure	0.15-0.35MPa
Compressed Air Pressure (for caps arranger)	0.7MPa
Compressed Air Consumption (for caps arranger)	0.7 m3/min
Machine Size	2260x1820x2250mm
Gross Weight	3000kg approximately
Total Power	3.68 KW

Complete full automatic coconut water filling machine Main Technical Standards

Presentation:

model(XGF)	8-8-3	14-12-5	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15	72-72-16	80-80-18
cp	3000	4000	6000	10000	14000	18000	24000	28000	32000	36000
power	2.5	3.58	4.68	6.58	9.68	9.68	10.8	11	11	15

A utomatic PET Bottle filling machine/bottle plant Automatic PET Bottle filling machine/bottle plant

Automatic PET Bottle filling machine/bottle plant Automatic PET Bottle filling machine/bottle plant

Type:	Filling Machine	Condition:	New	Application:	Food,Beverage
Packaging Type:	Cans,Bottles,Barrel	Packaging Material:	Plastic,Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	depending on client	Power:	subject to model
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	winmark	Model Number:	CGF40-40-12
Dimension(LWH):	subject to model	Weight:	subject to model	Certification:	CE ISO
After-sales Service Provided:	Engineers available to service machinery overseas	brand:	winmark	material:	sus304
PLC:	SIEMENS Mittisubishi	Touch screen:	WeinView Taiwan	Electronics:	Schneider OMRON
Pneumatic:	FESTO Air-Tac	Motor:	the best Chinese W/N	capacity:	adjustable fully automatic
function:	PET bottle filling machine	origin:	China Jiangsu Zhangjiagang
