COCONUT WATER Filling Machine:
1.suit for all kinds beverage
2.washin,filling,capping 3-in-1 machi
3.full automatic
coconut water filling machine
main machines
| No |
Name |
Type
|
| A |
Water Treatment system |
|
| 1 |
Source water tank |
|
| 2 |
Water pump |
SUS304 |
| 3 |
Silic sand filter |
SYS-5 |
| 4 |
Active carbonic filter |
GHT-5 |
| 5 |
Precision filter |
JML-5 |
| 6 |
Hollow fiber filter |
RO-2 |
| 7 |
Ozone generator |
OF |
| 8 |
Storing water tank |
|
| total |
||
| B |
Washing filling capping 3-in-1 unit machine |
|
| 1 |
Rinsing-filling-capping 3-in-1 unit auto filling machine |
18-18-6 |
| 2 |
Transportation system (2m air convey tunnel 3m conveyor) |
SC-1 |
| 3 |
Ink jet printer |
IMAJE-france |
| 4 |
Bottle dryer |
CG-1 |
| 5 |
Lamp checker |
PMJ |
| Total |
||
| C |
Package system |
|
| 1 |
Auto sleeve labeling machine and shrinkage tunnel |
WD-S150 |
| 2 |
Bottle screw and label leading pole |
|
| 3 |
Steam generator |
WD-T200 |
| 4 |
Air compressor |
|
| 5 |
Auto PE film wrapping machine |
|
| Total |
||
coconut water filling machine
Advantage of water filling machine
A. High automation level, compact structure, attractive appearance, convenient and simple operation, safe and reliable and adjustable continuous production capacity, low labor intensity.
B. The main machine adopts advanced PLC control technology
C. The key electric elements adopt products made by international famous companies, such as Mitsubishi and Siemens.
coconut water filling machine
Technical Data of water filling machine
| Model | CGF16-12-6 | CGF18-18-6 | CGF24-24-8 | CGF32-32-8 | CGF40-40-10 | CGF50-50-12 | CGF60-60-15 | ||
| Washing,-Filling-Capping | 16-12-6 | 18-18-6 | 24-24-8 | 32-32-8 | 40-40-10 | 50-50-12 | 60-60-15 | ||
| Producing capacity (600ml) |
2000-4000 (bph) |
5000-7000 (bph) |
8000-12000 (bph) |
12000-15000 (bph) |
16000-20000 (bph) |
20000-24000 (bph) |
25000-30000 (bph) |
||
| Applicable bottle (mm) | φ=50-108 H=170-340 330ml-2.25L | ||||||||
| Pressure (kg/cm2) | 2~3 | ||||||||
| Outside vacuum pump power (kw) | Main motor 1.5kw |
Main motor 2.2kw |
Main motor 3kw |
Main motor 4kw |
Main motor 7.5kw |
Main motor 9.5kw |
Main motor 12kw |
||
| Overall dimension (mm) (LxWxH) |
2100x1400 x2500 |
2460x1720 x2650 |
3100x2100 x2650 |
3500x2500 x2650 |
4600x1800 x2650 |
5200x4500 x3400 |
6500x4500 x3400 |
||
| Weight(kg) | 2500 | 3500 | 4200 | 5500 | 6800 | 7600 | 9800 | ||
coconut water filling machine
pictures of water machine
coconut water filling machine

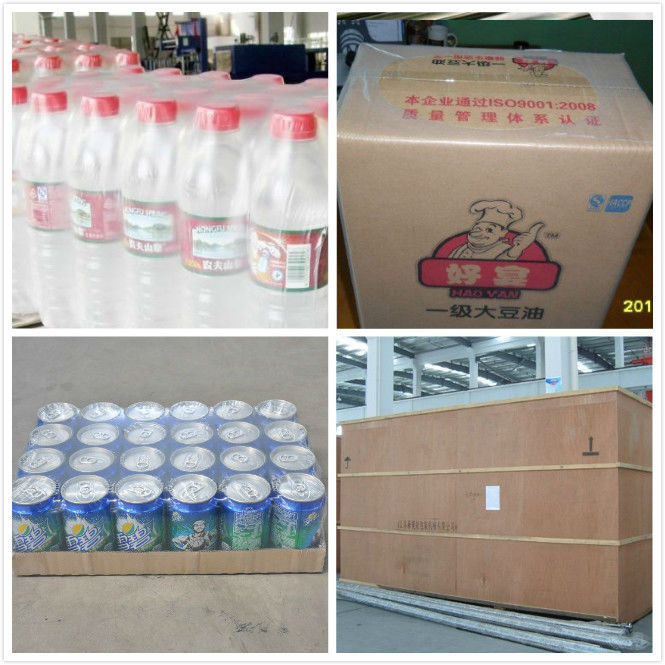

end product and package of water machine
| Type: |
Filling Machine
|
Condition: |
New
|
Application: |
Beverage
|
| Packaging Type: |
Case
|
Packaging Material: |
Plastic,Wood
|
Automatic Grade: |
Automatic
|
| Driven Type: |
Mechanical
|
Voltage: |
380V
|
Place of Origin: |
Jiangsu China (Mainland)
|
| Brand Name: |
WORITA
|
Certification: |
CE,ISO9001
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
| Processing: |
Filling Machine
|
Processing Types: |
Water
|
