coconut water processing line,China price supplier

coconut water processing line

FOB Price:Price can be negotiated

Production Capacity:4 Unit/Units per Month

Update Time:2014-09-16

Contact Supplier

Product Description

COCONUT WATER processing line
1.CE,ISO Certificate
2.Good after sale service
3.Warranty:1 year
4.SUS304
5.PLC control

coconut water processing line /liquid Filling Machine / Equipment / System Manufaturing In China Characteristics :

1. The suspending bottle-neck cramping design assures whole production line more stable during the working process and it also avoids malfunctions caused by the different bottle thickness or height. The design also dramatically reduces the required quantities of interchange parts which make it more convenient to change different types of bottles on washing, filling and capping.

2. Advanced gravity filling technology from Germany and Italy is applied on the machine, which assure quick filling and high accuracy of liquid level control.

3. Magnetic torque is applied on bottle screw-capping. Constant screw capping power can be adjustable stepless and therefore will not hurt the bottles at all.

4. Horizontal swirl cap sorting device is applied to avoid damaging caps. No caps, no capping; No caps, feeding system run automatically.

5. Human-machine interface touch-screen and PLC control system are adopted on the machine. Liquid level in the tank is controlled automatically. No bottles, no filling, no capping.

6. All parts connected with water are made of food grade stainless steel.

7. All main components makers are world-known manufacturers

Process of water filling line:

coconut water processing line / Equipment / System Manufaturing

Main technical parameters:

Model RFC-W series 16-12-6 18-18-6 24-24-8 32-32-8 40-40-10 50-50-12 60-60-15

Washing-Filling-Capping 16-12-6 18-18-6 24-24-8 32-32-8 40-40-10 50-50-12 60-60-15

Producing capacity
(600ml) 2000-4000
(bph) 5000-7000
(bph) 8000-12000
(bph) 12000-15000
(bph) 16000-20000
(bph) 20000-24000
(bph) 25000-30000
(bph)

Applicable bottle (mm) φ=50-108 H=170-340 330ml-2.25L

Pressure (kg/cm2) 2~3

Outside vacuum

pump power (kw)
Main motor
1.5kw Main motor
2.2kw Main motor
3kw Main motor
4kw Main motor
7.5kw Main motor
9.5kw Main motor
12kw

Overall dimension (mm)

(LxWxH) 2100x1400
x2500 2460x1720
x2650 3100x2100
x2650 3500x2500
x2650 4600x1800
x2650 5200x4500
x3400 6500x4500
x3400

Weight(kg) 2500 3500 4200 5500 6800 7600 9800

coconut water processing line/ Equipment / System Manufaturing In China Pictures:

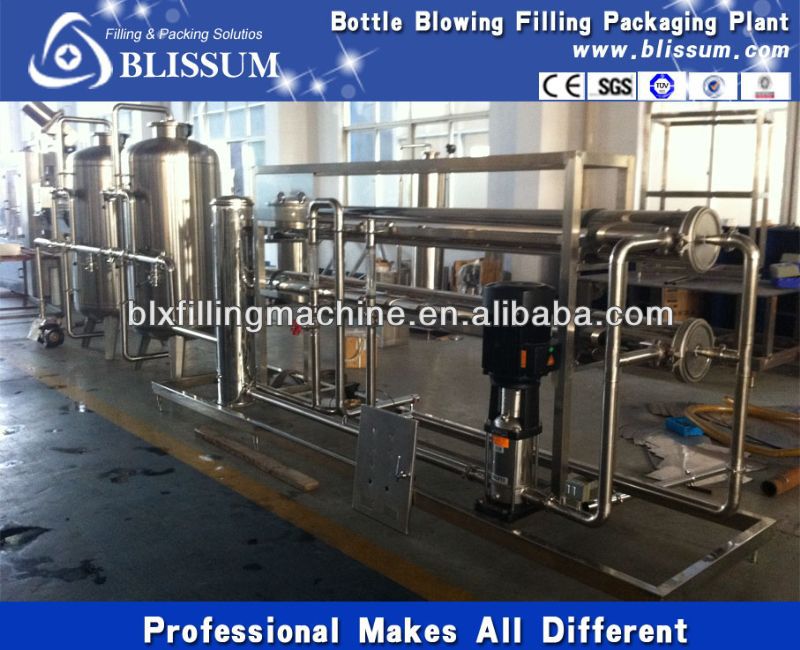

A) Water Filling Line --Water treatment system

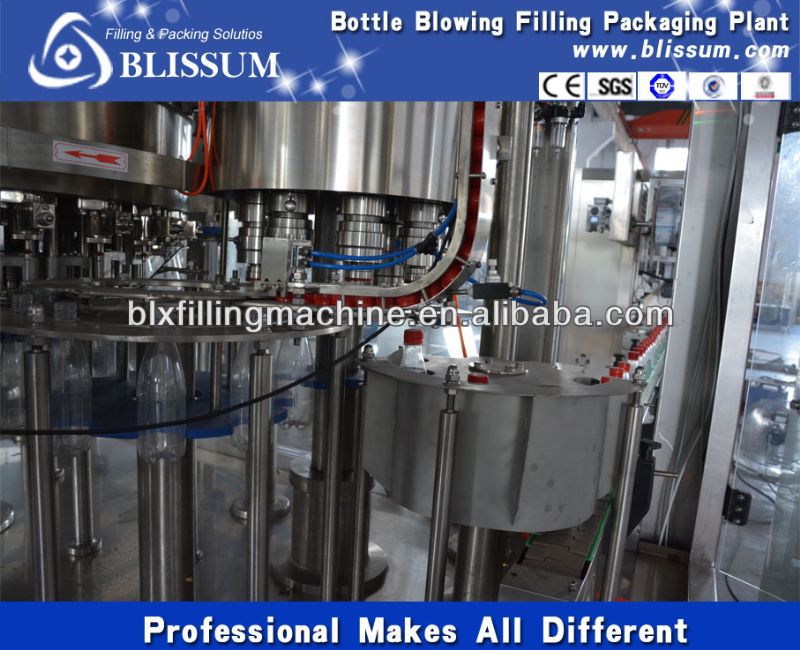

B) Water Filling Line --3 in 1 Filling Machine (washing+filling+capping parts)

a) Washing part

l All 304 stainless steel rinser heads, water spray style inject design, save water consumption & more clean

l 304 Stainless steel Gripper with plastic pad, ensure minimal bottle crash during washing

l 304 stainless steel washing pump

b)Filling

l High precision filling nozzle, PLC variable signal control, ensure high filling precision & filling smoothly & steadily,

l Filling volume adjustable in fine rank, same liquid level after filling

l All 304 stainless steel contact parts & liquid tank, fine polish, no death corner, easy to clean

l 304 stainless steel filling pump

l no bottle no filling

c)Capping

l Place & capping system, electromagnetic capping heads, with burden discharge function, make sure minimum bottle crash during capping

l All 304stainless steel construction

l No bottle no capping,

l Automatic stop when lack of bottle

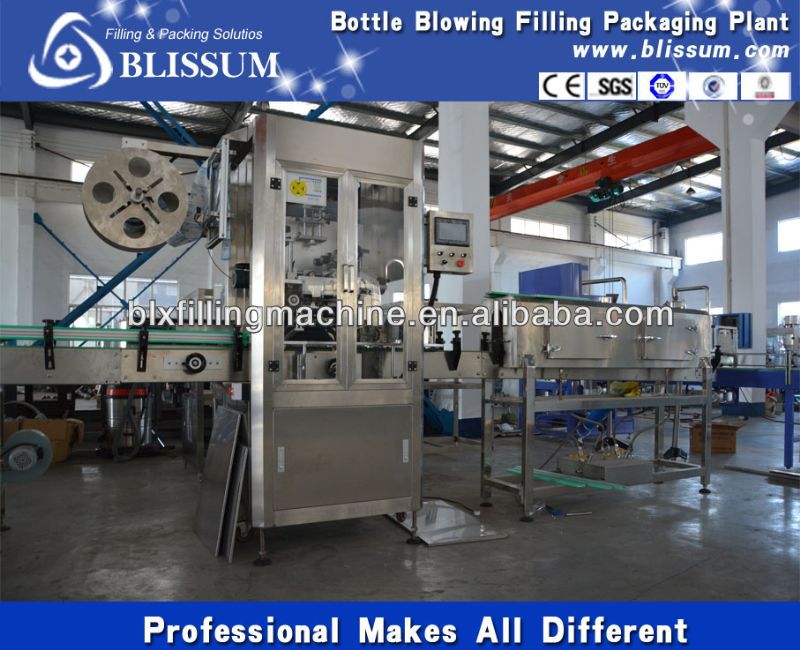

C) Water Filling Line --Labeling machine

D) Water Filling Line --PE film shrink wrapping machine

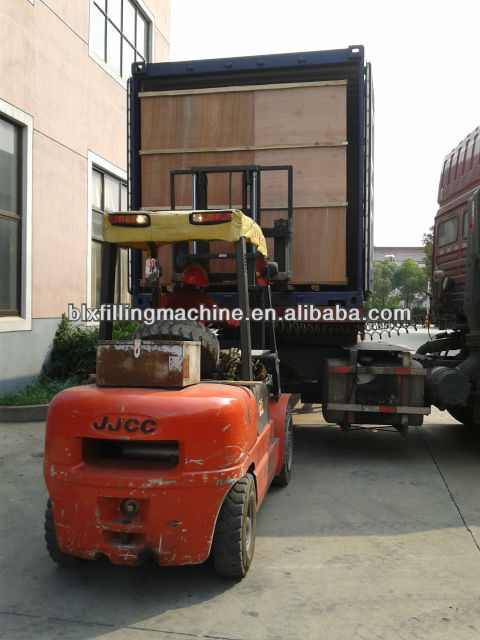

E) Water Filling Line --Woode case sh ipping

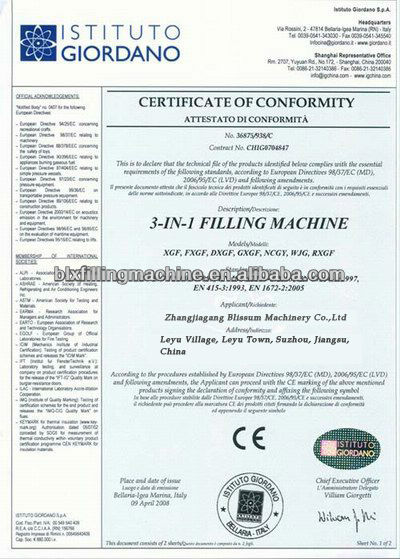

Water Filling Line --Certification

Welcome to come to us to check the quality of our machines!

0086+13759873389

Mike Zhang

Model RFC-W series	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15
Washing-Filling-Capping	16-12-6	18-18-6	24-24-8	32-32-8	40-40-10	50-50-12	60-60-15
Producing capacity (600ml)	2000-4000 (bph)	5000-7000 (bph)	8000-12000 (bph)	12000-15000 (bph)	16000-20000 (bph)	20000-24000 (bph)	25000-30000 (bph)
Applicable bottle (mm)	φ=50-108 H=170-340 330ml-2.25L
Pressure (kg/cm2)	2~3
Outside vacuum pump power (kw)	Main motor 1.5kw	Main motor 2.2kw	Main motor 3kw	Main motor 4kw	Main motor 7.5kw	Main motor 9.5kw	Main motor 12kw
Overall dimension (mm) (LxWxH)	2100x1400 x2500	2460x1720 x2650	3100x2100 x2650	3500x2500 x2650	4600x1800 x2650	5200x4500 x3400	6500x4500 x3400
Weight(kg)	2500	3500	4200	5500	6800	7600	9800
