Complete fully automatic mineral water production line,China SHEENSTAR price supplier

Complete fully automatic mineral water production line

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month mineral water pr

Payment Terms: US $1 - 10,000 / Set

Update Time:2014-09-16

Contact Supplier

Product Description

Mineral Water production line
1.304 316
2.PLC control
3.BV CE SGS ISO
4.Capacity:1000-20000bph

Complete fully automatic mineral water production line

Product Description

Mineral water production line description

(1) This bottling machine is mainly used for washing, filling and capping PET bottle which can fill non- carbonated drinks such as mineral water, pure water, wine and so on.

(2) Bottle washing, filling and capping are achieved in one machine.

(3) The contact time is shorten between Material and the outside. And improved the health conditions, production capacity and economic benefits.

(4) CGF series bottling machine adopts hanging type conveying-bottle structure to make changing bottle mold more convenient, faster and more laborsaving.

(5) The main machine adopts advanced PLC control technology. The key electric elements adopt Mitsubishi, Omron, Siemens, etc international famous products.

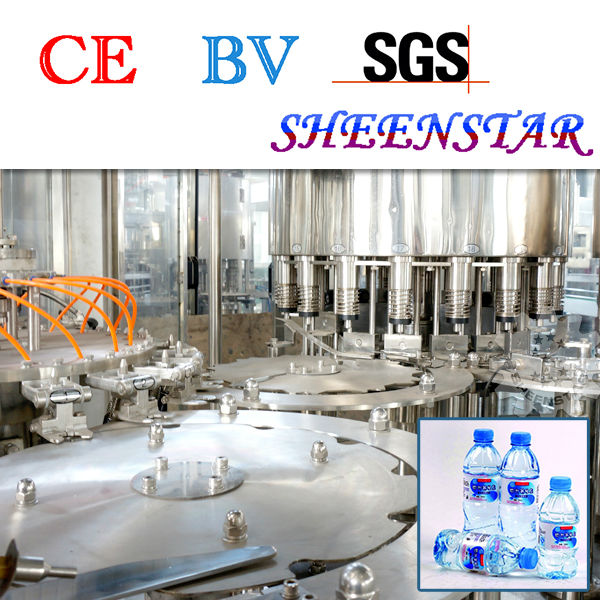

The whole machine image

Inside

Washing the bottle before filling

Filling the water into the bottle

Capping part

Water filler Flow chat

Water filler technical data

Model	CGF12125	CGF18186	CGF24248	CGF323210	CGF404012	CGF505012	CGF606015	CGF808020
Number of washing, filling and capping heads	12-12-5	18-18-6	24-24-8	32-32-10	40-40-12	50-50-12	60-60-15	80-80-20
Production capacity(600ml) (B/H)	2000-4000	5000-7000	8000-12000	12000-15000	16000-20000	20000-24000	25000-30000	35000-40000
suitable bottle specification(mm)	φ=50-110 H=170 volume=330-2250ml
Motor power(kw)	2.2kw	2.2kw	3kw	5.5kw	7.5kw	11kw	15kw	19kw
Overall dimensions (mm)	2400×1650 ×2500	2600×1920 ×2550	3100×2300 ×2800	3800×2800 ×2900	4600×2800 ×2900	5450×3300 ×2900	6500×4500 ×2900	76800×66400 ×2850
Weight (kg)	2500	3500	4500	6500	8500	9800	12800	15000

Packaging & Shipping

Company Information

About Sheenstar

Production Capacity

We can produce 10 complete lines ,30 machines per month !

Cooperation brand

To make the machine has a long life,r educe the maintenance ,we buy the materials from famouse company,who has branch all over the world,who can quikly help you some problems.

Our Services

The sample service

1.We can send you the video of the running machine.

2.You are welcome to come to visit our company to see the machine running in our factory ,we can pick you up from the station near our city.

3.If we get the permission of our customer,we can tell you our old customer contact imformation .

Customized service

1.We can design the machines according your requirements (materil ,power,filling type,bottles, and so on),at the same time we will give you our professional suggestion,as you know,we have been in this industry for many years.

2. We offer free technical support and consultation ,such as draw the factory layout for you, alalyze the source water report and so on.

After-sales service

1.We will delivery the machine and provide the bill of load on time to make sure you can get the machine quickly.

2.When you finish the Preparation conditions ,our fast and professional after service engineer team will go to your factory to install the machine,give you the operating manual ,and train your employee until they can operate the machine well.

3.We provide one year warranty with spare parts free .

4. We ask the feedback from our customer and offer some help when the machine have been used for some time.

Any question about this machine or our factory ,contact with us please.We will send you detail quotation and video about.Welcome to visit our factory to see the machine running in the factory, Sheenstar staff are happy to service for you at the any time.

Type:	Filling Machine,washing filling capping	Condition:	New	Application:	Beverage
Packaging Type:	Bottles	Packaging Material:	Wood	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V 50Hz or by order	Power:	2-19kw
Place of Origin:	Jiangsu China (Mainland)	Brand Name:	SHEENSTAR	Model Number:	CGF 18-18-6 MZ
Dimension(LWH):	Up to the capacity	Weight:	2000kg-9000kg	Certification:	BV,CE,ISO,SGS
After-sales Service Provided:	Engineers available to service machinery overseas	Material:	SUS 304 316	Structure:	rotated
Key words:	mineral water production line	Filling pressure:	normal pressure	Bottle size:	50ML-5L
PLC:	Mitsubishi or by order	Electric appliances:	siemens and schneider or by order	Bottle shape:	round or square
Bottle height:	150-310mm

Other Products

Automatic coconut water machine

hot filling coconut water machine

coconut water bottle filling plant

Automatic coconut water processing plant

Company Profile

Name: Zhangjiagang Sheenstar Technology Co., Ltd.

Main Products: Beverage machine: Filling machine (Water filling machine,Carbonated drink filling machine,Juice/tea filling machine),Water treatment system(producing only beverage)

Business Type: Manufacturer, Trading Company

Total Employees: 11 - 50 People

Established Year: 2010

Main Markets: Mid East, Southeast Asia, Domestic Market, South America, Africa

Address: Zhaxi Village, Leyu Town, Zhangjiagang

Zhangjiagang Sheenstar Technology Co., Ltd. is a professional manufacturer of beverage packaging solutions. We supply water treatment, water filling production line, carbonated drink making filling production line, juice making filling production line, 5 gallon filling production line, labeling machine and shrink packing machine. With our machines, bottles can be plastic bottle, glass bottle barrel and cans. In other words, customized machines can be produce according to client's requirements.
We supply our machines Mainly to South East Asia, Middle East, Africa and South America and South East,more than 40 countries.
We have been focusing on the researches and developments, since they are our key of enterprise innovation. They make us better doing in production, technical services and marketing sales.
We supply high quality machines and great professional after-sale services. Our goal is to make customers satisfied and value maximized. We normally provide 12 months warranty and 12 months wear out spare parts. Engineers are available to go to customer's factory and install machines,teach them the way to maintain the machines.
Sheenstar is located in the Yangtze River Industrial Park of Zhangjiagang City which is near by Shanghai. Transportations are very convenient.
Welcome to visit our factory and evaluate our products. Hope to cooperate with you. more
