ConLon milk uht,China changlong price supplier

ConLon milk uht

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month customizing

Payment Terms: US $24,590 - 81,970 / Set

Update Time:2022-06-29

Contact Supplier

Product Description

milk uht
Semi automatic
Full automatic
PLC control
Touch screen

milk uht

1. Product description:

production capacity:1~20 t/h.

With such features an high heat recovery, compact and beautiful structrue, stable temperature control etc.

Control methods: semi-automatic control, full-automatic control (PLC control, touch screen disnplay)

The system adopts ultra-high temperature processing method, which can strictly sterilize the dairy,tea Beverage and fruit etc. and then transfe to aseptic packaging.The sterilizing temperature is 135~14 0 °C and the heat preservation period is 4~5 seconds, so an to maintain the original nutrition, color and FLAVOR of beverage and dairy.

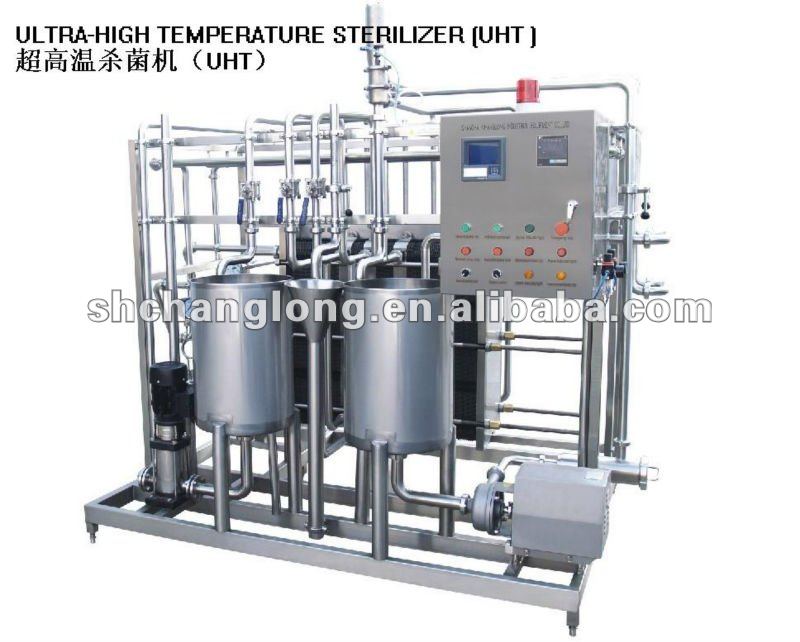

2. Realted pictures

3. Technical Parameter

Name		BR16-UHT-10B	BR16- UHT- 20B	BR26- UHT- 28B	BR26- UHT- -45B	BR26- UHT- -85B	BR56-UHT- 150B
Production capacity	t/h	1	2	3	5	10	20
Heat exchanging area	m ²	13	26	38	55	105	190
Temperature of material inlet	°C	5	5	5	5	5	5
Temperature of material outlet	°C	5	5	5	5	5	5
Sterilizing temperature	°C	137	137	137	137	137	137
Heat preservation period	s	4	4	4	4	4	4
Ice water temperature	°C	1	1	1	1	1	1
Ice water consumption	multiple	3	3	3	3	2	2
Hot water consumption	multiple	1.2	1.2	1.2	1.2	1.2	1.2
Steam pressure	Map	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6	≥0.6
Connecting size	mm	38	38	51	51	63	76
Outline dimension	mm	150015001800	220020001800	260020002200	280020002200	320020002200	380020002200

Processing:	Sterilizer	Place of Origin:	Shanghai China (Mainland)	Brand Name:	changlong
Model Number:	BR-UHT-500-20000L	Processing Types:	Milk
