Corn Starch resin
2.vacuum/ high pressure
3.stainless steel
4.agitating sets
5.CE
corn starch resin
1.Introduction:
Reactor is the main chemical reaction of the typical production equipment, which is widely used in resins, adhesives, paint, cosmetics, pharmaceutical and other chemical production. To break down or combined the materials through mixing, filling and cooling, to promote the reaction of polymerization. The reactor consists of body, gears, mixing devices, heating devices, cooling devices, seal composition and some corresponding auxiliary equipment: distillation column, condenser, water separator, collecting cans, filters ect. It's the practical and effective machine.
2. Parameter of reactor:
Specifications |
Effective volume (L) |
Heating |
Heating(colding) structure |
Shaft seals |
Material within the cylinder |
Remarks
|
FYF-50L |
50 |
HTF
|
Jacket
|
Single mechanical seal
|
304 321 316 Q235 |
1, the motor power size, stirring speed level determined according to actual requirements.
|
FYF-100L |
100 |
|||||
FYF-200L |
200 |
|||||
FYF-300L |
300 |
|||||
FYF-500L |
500 |
|||||
FYF-1000L |
1000 |
|||||
FYF-1500L |
1500 |
|||||
FYF-2000L |
2000 |
|||||
FYF-2500L |
2500 |
|||||
FYF-3000L |
3000 |
|||||
FYF-4000L |
4000 |
|||||
FYF-5000L |
5000 |
|||||
FYF-6000L |
6000 |
|||||
FYF-8000L |
8000 |
|||||
FYF-10000L |
10000 |
|||||
FYF-12000L |
12000 |
|||||
FYF-16000L |
16000 |
|||||
FYF-20000L |
20000 |
|||||
FYF-25000L |
25000 |
|||||
FYF-30000L |
300000 |
3. used in the production:
1. unsaturated resins, alkyd resins, acrylic resins, polyurethane resins and other complete sets of production equipment;
2. lotion, white latex, PU glue, adhesive sets of production equipment;
3. waste silica gel pyrolysis, recycling equipment;
4. paint sets of production equipment;
5. complete sets of all kinds of fine chemical production equipment.

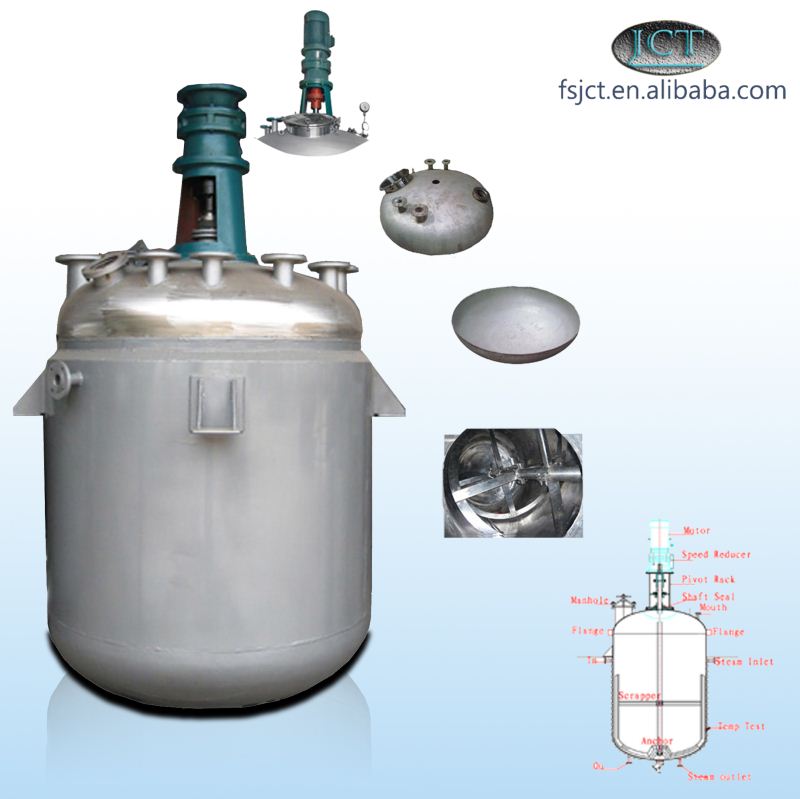

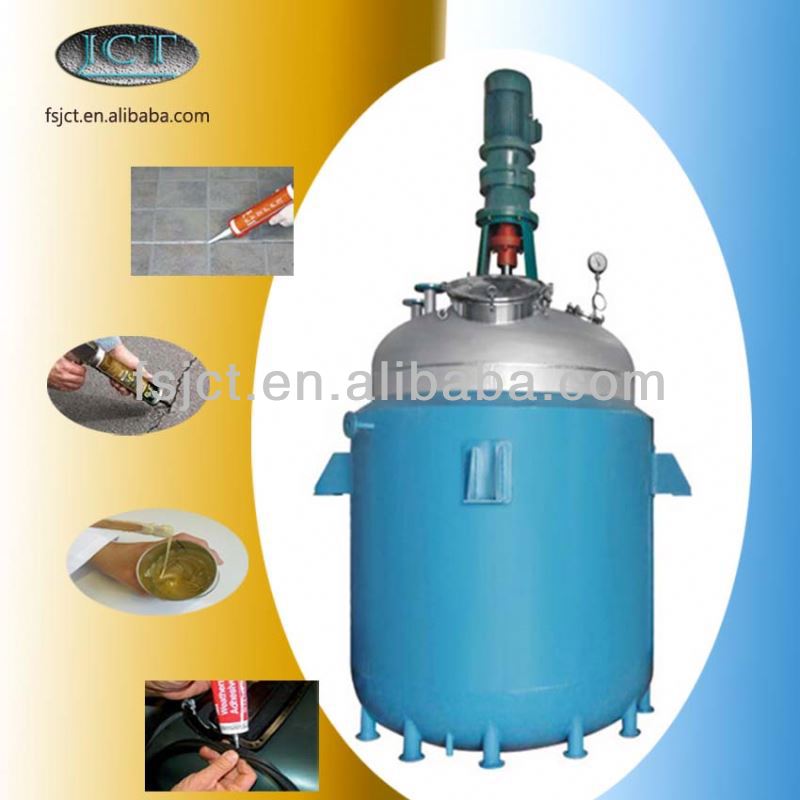

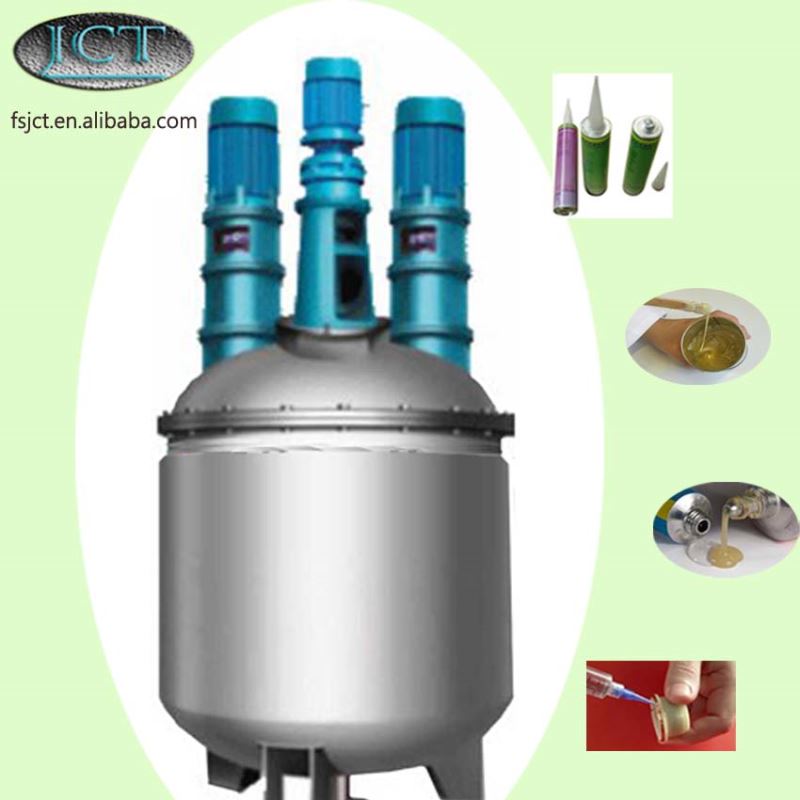

4. pictures of reactor and its products:
5. reactor in our factory:
6. our team and clients:
7.Please feel free to contact me:
Machine Type: |
reactor machine
|
Product Type: |
adhesives, cosmetics, chemical products,food, pharmaceutical
|
up cover method: |
hydralic up cover
|
heating methods: |
electric heating, steam heating, heated in water
|
material: |
SS304, SS316, Q235-B carbon steel
|
motor: |
explosion proof motor
|
heat transfer structure: |
jacket, outer half-tube, inner coil type
|
speed control:: |
inverter for frequency control
|
stirring methods: |
anchor paddle, block, ribbon, turbine type, a dispersing disc, modular
|
reaction pressure: |
-0.1~0.6Mpa
|
