Cup Filling & Sealing Machine For Drinking Water/ Coconut Water

FOB Price:Price can be negotiated

Production Capacity:100 Set/Sets per Month

Update Time:2023-05-04

Contact Supplier

Product Description

High efficiency, four cups can be filled at one time automatically, sealed, and trimmed at the same time.

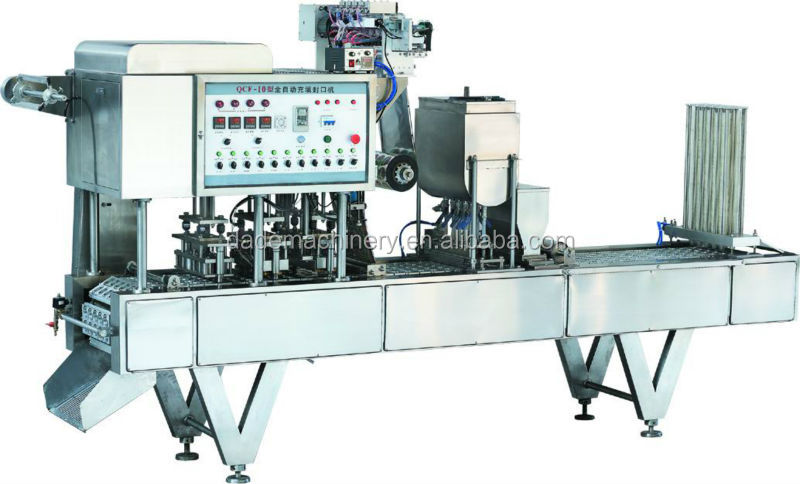

Cup Filling & Sealing Machine For Drinking Water/ Coconut Water

Name	Cup Filling & Sealing Machine For Drinking Water/ Coconut Water
Model	QCF-4(4 heads filling the jelly)
Volume	According to the requirement by the user
Cup diameter	According to the size provided by the user
Capacity	1500-2000 Pcs/h

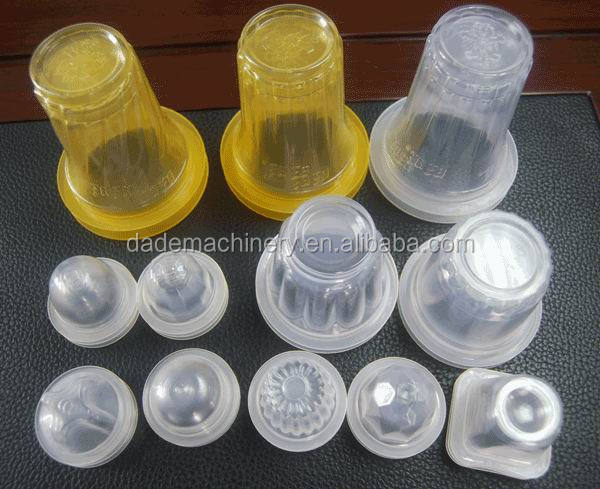

Cup &film material	Preformed PP. cups, laminated film, such as, PET/Al/PE, etc.
Thickness of the film	0.055—0.065mm
Pneumatic	0.6 m³/min
Power	5.5kw
Voltage	380V/50Hz 3 phase 4 lines
Machine material	Stainless steel, Al-alloy
Weight	800kg
Dimension	Approx.L3000W800H1680mm

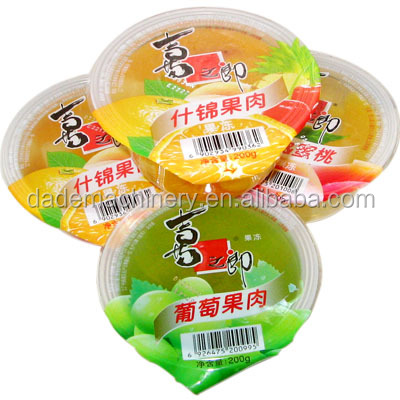

Automatically put cups, two times fill, seal and separate the finished products, and collect the scrapped film automatically. Can fill various liquid or paste, such as, milk, juice, tea, ketchup, jam, jelly, or other drinks into cups and seal

1. This machine is suitable for filling and sealing cup with jam, honey, Margarine, jelly etc.

2. Electric and pneumatic combined driving are used, resulting in stable driving in order to save man power and reduce cost. Supply of cups, filling , sealing, trimming, output of products and take -up of waste film are fully automatic.

3. High efficiency, four cups can be filled at one time automatically, sealed, and trimmed at the same time in the machine.

4. Revision device of photoelectric sensors are installed in the machine to auto revise the positive of sealing film through detection of color mark, assuring the accurate position of the sealing pattern.

5. Hot sealing device, tight sealing, and absolutely reliable quality.

We service at 24 hours and welcome to visit our factory at any time.

Type:	Filling Machine"> Filling Machine	Condition:	New	Application:	Food,Beverage,Medical,Chemical,Machinery & Hardware
Packaging Type:	Cans,Bottles,Capsule	Packaging Material:	Plastic	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V/50Hz 3 phase 4 lines	Power:	5.5kw
Place of Origin:	Guangdong China (Mainland)	Brand Name:	DADE	Model Number:	QCF-4
Dimension(LWH):	Approx.L3000W800H1680mm	Weight:	800kg	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas	Volume:	According to the requirement by the user	Cup diameter:	According to the size provided by the user
Capacity:	1500-2000 Pcs/h	Cup &film material:	Preformed PP. cups, laminated film, such as, PET/Al/PE, etc.	Thickness of the film:	0.055-0.065mm
Pneumatic:	0.6 m³/min	Machine material:	Stainless steel, Al-alloy
