Customize 1-5 layer vibration screen for black pepper,China Jinzhen price supplier

Customize 1-5 layer vibration screen for black pepper

FOB Price:Price can be negotiated

Production Capacity:490 Set/Sets per Month

Payment Terms: US $2,875 - 5,995 / Set

Update Time:2014-09-25

Contact Supplier

Product Description

Customize 1-5 layer vibration screen for Black Pepper
1.Material:SUS304
2.Screening rate>95.68%
3.Noise<75db
4.CE, ISO

Customize 1-5 layer vibration screen for black pepper

Product introduction- vibration screen for black pepper

JZS series rotary vibration sieve is a high-precision powder griddle through a number of patented technological innovation (rapid beam ring design, the flange motor design) , low noise, high efficiency, quick changer only needs 3 - 5 minutes, fully enclosed structure, it is suitable for tablets, powder,mucus, etc. materials screening filter.

Working principle- vibration screen for black pepper

The basic principles of vibration screening is installed under hammer motor shaft (unbalanced hammer), let motor rotary motion into horizontal, vertical, inclined three per exercise, then this movement passes to the screen surface. Adjusting the upper and lower ends of heavy hammer of the phase angle, it can change the material in the sieve surface trajectory.

By changing the eccentric block’s included angle (the upper and down),the motion material moves on the mesh ill be changed. So that the screening target will be realized.

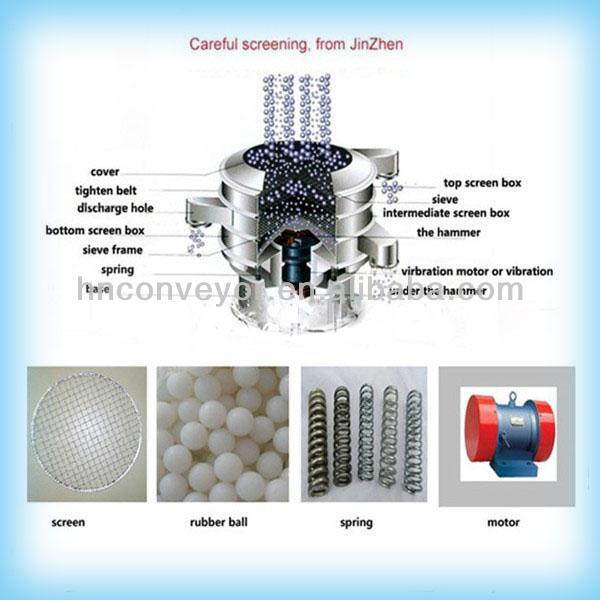

Product parts- vibration screen for black pepper

Application- vibration screen for black pepper

Foods - pea grading, Instant Coffee powders, and Bread crumbs, etc.

Pharmaceuticals industry - antibiotics. aspirin. bulk.pharmaceutics.
hormones.injectables.lipids.lithium.microspheres.peptides.proteins, etc.

Chemicals - polyvinyl chloride, polyethylene, polypropylene and other plastic pellets, melamine, phenolics, cellulose acetate, polystyrene, calcium carbide, copper sulfate, detergents, adipic acid, iron oxide, and sodium cyanide, etc.

Minerals and Metals - metal powders, barytes, silica, bauxite, cement, brick clay, coke, fluorspar and nepheline syenite, etc.

Advantages- vibration screen for black pepper

1.High efficiency - elegant design and durable, available for any powder and viscous liquid.

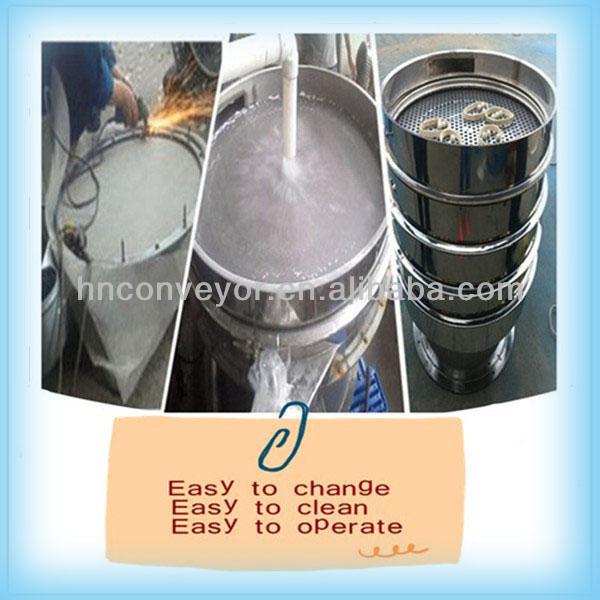

2.Easy of cleaning and operating - the unique grid design, mesh will use a long time, for only 3-5 minutes to replace net.

3.Lower noise - less than 75dB.

4.Double screen - mother screen can be fixed,child screen can be detachable,easy to change screen and use for long time.

Technical parameters- vibration screen for black pepper

Model NO.		JZS-400	JZS-600	JZS-800	JZS-1000	JZS-1200	JZS-1500
Screen diameter(mm)		340	540	730	900	1100	1400
Screen area(m 2 )		0.0907	0.2289	0.4183	0.6359	0.9499	1.5386
Screen specification		2-500 mesh / hour
Plies NO.			1-2	1-2	1-2	1-2	1-2
Power (kw)	Vibrate motor	0.18	0.25	0.55	1.1	1.1	1.5

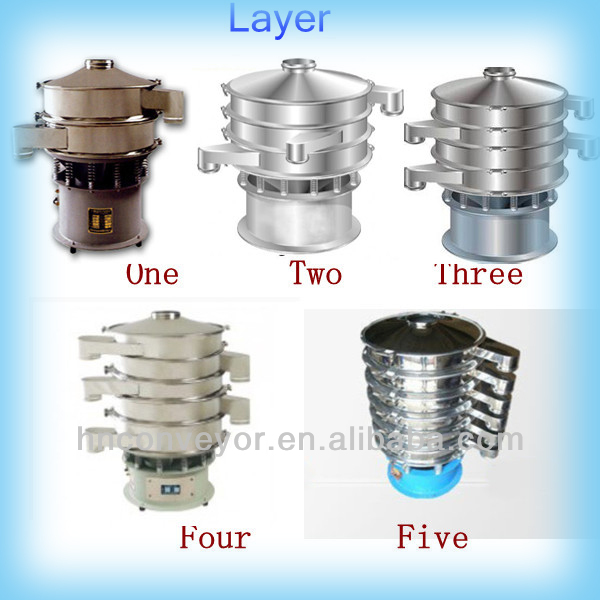

Product kinds- vibration screen for black pepper

Producing process- vibration screen for black pepper

WLECOME TO JINZHEN

Sign the contact:
our products are sold in home and abroad in over 15 country.

Transportation:
we send you one engineer for installation,training your worker.

Certification:
CE,Supplier Assessment,Letter of Patent, Quality Authentication.

Delivery Detail:15 days after deposit.

Packaging:Fumigation-free wooden case.

Any problems pls feel free to contact me as follows!

Condition:	New	Type:	Separating Plant,separating Plant	Product Type:	Detergent Powder
Place of Origin:	Henan China (Mainland)	Brand Name:	Jinzhen	Model Number:	JZX- 002
Voltage:	220V.380V.415V and others	Power(W):	0.18kw - 2.2kw	Weight:	230kg - 750kg
Dimension(LWH):	1220920800 mm	Certification:	CE, ISO	Warranty:	1 year,12 Month for vibration screen for black pepper
After-sales Service Provided:	Engineers available to service machinery overseas	Screen mesh:	5-500 mesh for vibration screen for black pepper	Layer:	1-5 deck screen (2-6 outlets)

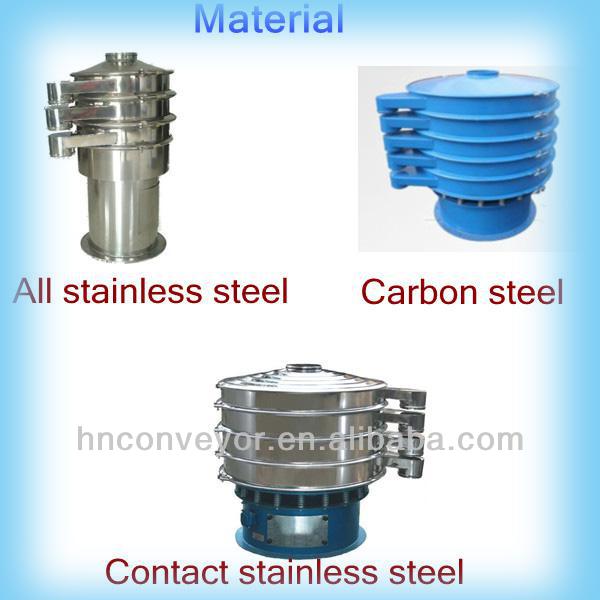

Capacity:	object to customers' request	Surface treatment:	polish, sand blast, paint, galvanize	Material:	carbon steel.SS304.316L stainless steel
Diameter:	400-2000mm vibration screen for black pepper	Noise:	below 75db vibration screen for black pepper	Working time:	continuous vibration screen for black pepper
