DLZ-420E Continuous Stretch-packaging Vacuum Packaging Machine For Shrimps

FOB Price:Price can be negotiated

Production Capacity:500pcs/month

Payment Terms: FOB Qingdao

Update Time:2024-09-04

Contact Supplier

Product Description

DLZ-420E Automatic Continuous Stretch

Vacuum Packaging Machine

DLZ-420E Continuous Stretch-packaging Vacuum Packaging Machine For Shrimps

1. Range of Application:

Food, sea food product, meat product, vegetable and fruit product, pickles, chilled meat, electronic, hardware, chemical, pharmaceutical and other dried products. Especially suitable for all kind of leisure food, such as: dried tofu, cheese, steak, egg etc.

2. Technical Parameters

Machine Dimensions	60009501860mm
Upper film width	393-394mm
Lower film width	422mm
Total Weight	2200KG
Power	380V/50HZ
Capacity	18-20KW
Vacuum：	≤200Pa
Compressed air：	≥0.6MPa

3. Configuration：

DLZ-420E Continuous Stretch-packaging Vacuum Packaging Machine For Shrimps

l Germany SIEMENS S7-200 smart programmable logic controller (PLC) control, large capacity input and output

l SIEMENS 10 inch smart line new generation of brilliant color series man-machine interface touch screen control panel, push-pull design

l 1.5KW German SIEMENS servo system control high speed and high precision stepping speed

l REGINA (European famous brand) chains Imported from Italy.

l Temperature control module system from Japan, multi-channel intelligent heating function, precise temperature control

l imported electrical appliances. (including SIEMENS motor starter, Schneider contactor, German Si color sensor, Schneider breaker, Izumi Japanese Yangming button switch, solid state relay, Yangming power protection, German Si proximity switch, buzzer alarm Korea etc.)

l Pneumatic parts adopt Japanese SMC valve terminal type pneumatic system.

l Adopt with original German (BUSCH) RA0203D vacuum pump and RA0040F vacuum pump.

l Imported photoelectric tracking system, available colorized tectorial membrane, guarantee for design position precisely.

l The machine adopts aluminum magnesium alloy panelized construction, guide rail and wallboard are for integral extrusion forming.

l Forming, sealing and lifting adopt pneumatic lever independent lifting locking system.

l Combination sealing mould, integral sealing cushion, and sealing-heating plate are multiple heating tube inlay.

l Cross-cutting knife operates independently and controlled by computer. This system can be turned on or off through the touch screen.

l The upper and lower film use the new control system.

l Equipped with imported automatic recycle system for wasted and scrap.

l Equipped with warning and protection system for power default phase, reverse phase and overtension, and lubrication of machines, which can help for operator use and adjust easily.

l Forming, sealing, horizontal knife and longitudinal knife are all equipped with safety protection system and safety cover. System can automatic stopping in case of emergency. At the meanwhile, screen can show faults of system and appropriate solutions.

l Overall length of this equipment is about 6meters.

l With two sets of mold

4. Price

Terms of price： FOB Qingdao
Payment item： TT 30% in advance, balance before delivery.
Delivery time: 20-30 working days after receiving advanced payment.
Validity of quotation: 7 days
Packing Item: Free fumigation wooden case

*If with Laser Inkjet Printer, total fee will add USD 10500

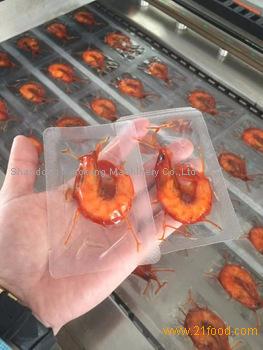

5. Picture

DLZ-420E Continuous Stretch-packaging Vacuum Packaging Machine For Shrimps

6. DLZ-420E Main parts List

Part Name	BRAND
PLC,Siemens S7-200 Smart	SIEMENS(GERMAN)
10.0inch Siemens Smart Line Touch Screen	SIEMENS(GERMAN)
Siemens(German)Servo Driving System 1.5kw	SIEMENS(GERMAN)
Schneider Circuit, Ac Contactor	SCHNEIDER(FRANCE)
Vacuum Pump（BUSCH,RA0203D）	BUSCH(GERMANY)
Vacuum Pump（BUSCH,RA0040F）	BUSCH(GERMANY)
Chains	REGINA(ITALY)
Pneumatic Element	SMC(JAPAN)
Air Cylinder	SMC(JAPAN)
Button Switch	IDEC(JANPAN)
Power	SIEMENS(GERMAN)
Computer Temperature Control System	AZBIL(JAPAN)
Auto Cooling System Using German Tech	XIAOKANG
Alloy Wallboard,20MM Thick,Anti-Corrosion	CHINA National No.101 Military Factory
Alloy Track for Chain	CHINA National No.101 Military Factory
Siemens Motor Starter	SIEMENS(GERMAN)
Color Mark Sensor	SICK(GERMANY)
Power Protector, Solid State Relay	FOTEK(TAIWAN)
Optical device As below for Movable Coding system
0.4kw Servo Driving System	SIEMENS(GERMAN)
Siemens S7-200 Smart Programmable Logic Controller	SIEMENS(GERMAN)
Three sets of mobile synchronous belt module
