Double Layers Circular Corn Starch Grading and Screening Equipment,China Tongxin price supplier

Double Layers Circular Corn Starch Grading and Screening Equipment

FOB Price:Price can be negotiated

Production Capacity:50 Set/Sets per Month negotiate

Payment Terms: US $950 - 5,000 / Set

Update Time:2014-09-27

Contact Supplier

Product Description

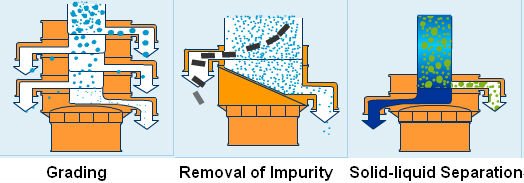

1.Multi Function-grading,removing impurity,solid-liquid separation,washing
2.High Efficiency-up to 500 mesh
3.ISO9001:2008, CE

1. Operating Principle -its vertical motor, which is installed eccentric hammers on the top and bottom, is regarded as a vibratory source. The eccentric hammers change rotation into horizontal, vertical and inclined movement, and then pass the movement to the sieving surface. Adjusting the phase angle on the top and bottom can change trajectories of the materials on the sieve.

2. Functions

3. Structure

4 . Applications -It is widely used in chemical, abrasive, ceramic, pharmaceutical, paper-making, metallurgy, mining, food industry,etc.

5. Features

1) Elegant design & durable, available for any powder and viscous liquid, easy moving and space saving

2) High screening efficiency- screen up to 500 mesh(0.028mm)

3) Easy to operate, easy to change the screen cloth(3-5 minutes), easy to clean

4) Automatic discharge of impurities and coarse materials, continuous operation

6. Technical Parameters

Model	600	800	1000	1200	1500	1800	2000
The Effective Diameter of Screen Surface(mm)	φ540	φ730	φ900	φ1100	φ1400	φ1700	φ1886
Effective Screening Area	0.2281	0.4183	0.6359	0.9499	1.5386	2.2687	2.7922
Screen Size	2 - 500 mesh
Layers	1-5	1-5	1-5	1-5	1-5	1-3	1-3
Vibration Motor Power (KW)	0.55	0.75	1.1	1.5	2.2	3.0	3.7

7. Note: Can be customized according to different requirements of customers, such as mounting hopper, water spray device, etc.

Place of Origin:	Henan China (Mainland)	Brand Name:	Tongxin	Model Number:	XZS
Type:	Grading, sifting and washing,Circular/round	Material:	Carbon steel, stainless steel	Diameter:	400-2000mm (16 inch-71 inch)
Screen mesh:	2-500 mesh	Deck:	1-5	Motor:	Single vertical motor
Application:	Food, chemical, ceramic, pharmaceuticals industry, etc.	Certification:	ISO9001:2008, CE
