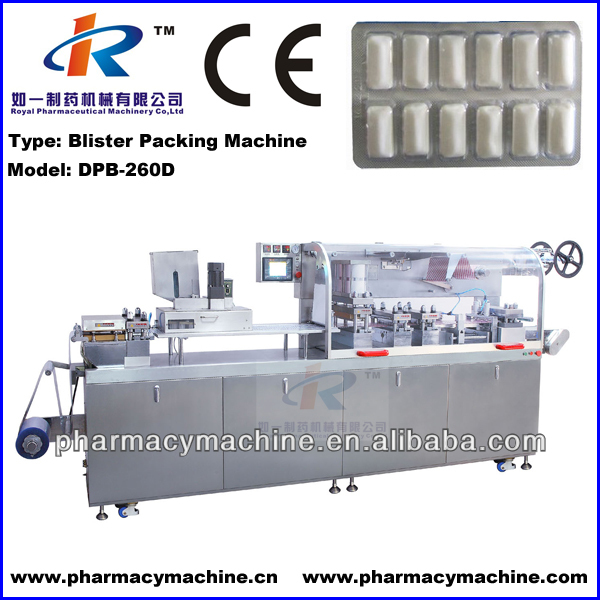

DPB-260D Energy Chewing Gum Blister Packing Machine

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month energy chewing g

Update Time:2014-09-25

Contact Supplier

Product Description

energy Chewing Gum blister packing machine
ALU-ALU,ALU-PVC
Multifunction, practical
for food,medicine, hardware
GMP,CE

Application:

High-tech blister packing machine for aluminum-aluminum,aluminum-plastic, paper-plastic packing
Adopting PLC, frequency converter and man-machine interface
Ease for operation, stable running and qualified with GMP
Large forming area and more plates per cutting (standard sheet: 5 plates once)
Especially for candy and milk tablet etc packing in food industry.

Process flow diagram:

DPB-260D Energy Chewing Gum Blister Packing Machine

Product Name	Energy Chewing Gum Blister Packing Machine
Product model	DPB-260D
Product specify	It is suitable for capsule, tablet, big honey pill, candy, liquid, paste, one injector as well as irregular shape Al-plastic, paper-plastic composite and Al-Al sealing packing in pharmacy, healthcare, food, cosmetics, medical equipment industry etc.

1. Features:

1. Features:

1. Blister forming, heat-sealing, lot number printing, avulsion line impressing and cutting all adopt gear mandrel orientation, each can move freely in the mandrel when rotating the hand wheel.
2. Manipulator towing, adjustable travel range, which can fit for blister packing of different sizes.
3. Positive pressure forming matched with mechanical punch ensures well blister forming.
4. Collocate with special automatic feeder to fit for different goods such as ampoule, vial, syringe, big honey pill, medical appliance or other special shapes.
5. Main transmission part adopts parallel axis and bevel wheel speed reducer.
6. Forming, heat-sealing and impressing moulds adopt bolt orientating which leads to precise orientation, easy to change moulds and material saving.
7. Detachable design makes the machine easy to be carried and installed according to user’s requirement.

Notes:

•Eye marking sealing device with sensor trace can be added for option
•Ink-jet printer can be added for option

• Camera detection and ejection system can be added for option.

2. Main technical parameters:

2. Main technical parameters:

Model		DPB-140B	DPB-250B	DPB-260D	DPB-320B	DPB-350B	DPB-400B
Cutting frequency(times/min)	Al-Al	6-25	6-25	40	6-25	6-25	6-25
	Al-plastic	6-50	6-50	70	6-50	6-50	6-50
	paper-plastic	6-50	6-50	70	6-50	6-50	6-50
Sheet's quantity of one cutting(blisters)		2	3	4	4	5	6
Standard plate(mm)		80*57	80*57	80*57	80*57	80*57	80*57
Production capacity(blister/hour)	Al-Al	720-3000	1080-4500	1440-6000	1440-6000	1800-7500	2160-9000
	Al-plastic	720-6000	1080-9000	1440-12000	1440-12000	1800-15000	2160-18000
	paper-plastic	720-6000	1080-9000	1440-12000	1440-12000	1800-15000	2160-18000
Max Forming area and depth(mm)	Al-Al	13013014	24015015	25018015	31015015	34015015	39015015
	Al-plastic	13013026	24015026	25015026	31015026	34015026	39015026
	paper-plastic	13013026	24015026	25015026	31015026	34015026	39015026
Travel range(mm)		40-140	40-160	0-180	40-160	40-160	40-160
Capacity of air compressor((m3/min) )		0.4-0.6	0.4-0.6	0.4-0.6	0.4-0.7	0.4-0.7	0.4-0.7
Power supply		380V/220V 3.6Kw	380V/220V 6.2Kw	380V/220V 6.2Kw	380V/220V 6.2Kw	380V/220V 6.2Kw	380V/220V 6.2Kw
Main motor power(Kw)		0.75	1.5	1.5	1.5	1.5	1.5
Packing material(mm) Roll	Forming Alu	(0.1-0.15)*140	(0.1-0.15)*250	(0.1-0.15)*260	(0.25-0.5)*320	(0.25-0.5)*340	(0.25-0.5)*400
	PVC	(0.25-0.5)*140	(0.25-0.5)*250	(0.25-0.5)*260	(0.25-0.5)*320	(0.25-0.5)*340	(0.25-0.5)*400
	Aluminum foil	(0.02-0.035)*140	(0.02-0.035)*250	(0.02-0.035)*260	(0.02-0.035)*320	(0.02-0.035)*340	(0.02-0.035)*400
	Dialysis paper	(50-100g)*140	(50-100g)*250	(50-100g)*260	(50-100g)*320	(50-100g)*340	(50-100g)*400
	Paper card	<400g*140	<400g*250	<400g*260	<400g*320	<400g*340	<400g*400
Mould cooling		Tap water,circulating water or water chiller	Tap water,circulating water or water chiller	Tap water,circulating water or water chiller	Tap water,circulating water or water chiller	Tap water,circulating water or water chiller	Tap water,circulating water or water chiller
Overall dimensions(mm)		23005601410	30007301600	39007301600	33007751600	33008001600	33008501600
Weight(Kg)		750	1600	1600	2000	2100	2300

3. Installation drawing:

3. Installation drawing:

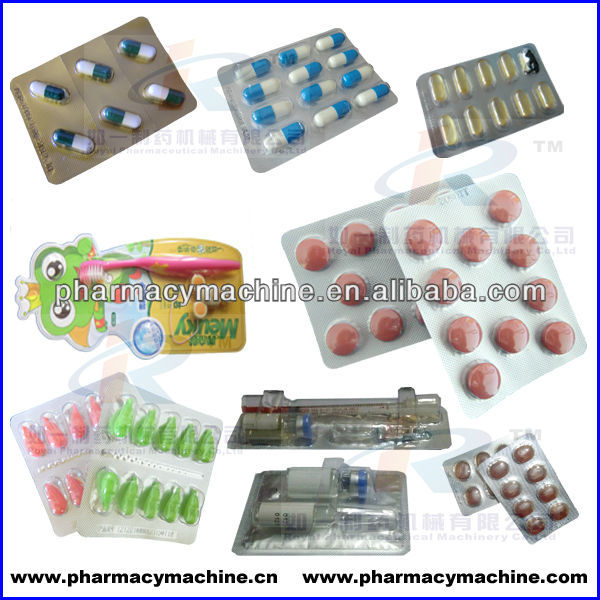

4. Finished product packing samples:

4. Finished product packing samples:

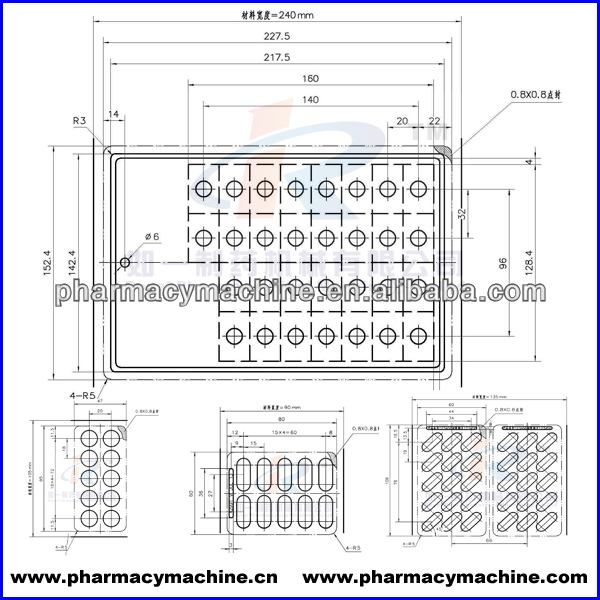

Sample's drawing:

5. Export standard package:

5. Export standard package:

6. Certificates:

6. Certificates:

7. Royal services:

7. Royal services:

Installing and Commission:

We will install and test the machine in best working condition before shipment. If customer requires our technician to adjusting the machine and train technician at arrival place, we will send technician there. All our expenses including round-trip air ticket to the nearest airport, local conveyance to your factory, Lodging&Boarding expenses shall be payable by you. In case the stay of our technician, additional service fee will be charged .

Warranty period:

One year for fully machine guarantee. And in this year if the machine broken caused by mechanical problem, all of the spare part is free. The service of the machine all though the machine’s life.

8. Contact us:

8. Contact us:

Any other query, please feel easy to contact with us.

...

Type:	Packaging Machine"> Blister Packaging Machine	Condition:	New	Application:	Food,Medical,Chemical,Machinery & Hardware
Automatic Grade:	Automatic	Driven Type:	Electric	Voltage:	380V/220V
Power:	6.2kw	Place of Origin:	Shanghai China (Mainland)	Brand Name:	Royal energy chewing gum blister packing machine
Model Number:	DPB-260D energy chewing gum blister packing machine	Dimension(LWH):	33008001600mm	Weight:	2100Kg
Certification:	CE,GMP	Warranty:	One year	After-sales Service Provided:	Engineers available to service machinery overseas
Keyword:	energy chewing gum blister packing machine	Packing Material:	PVC Rigid Sheet;PTP Aluminum Foil;Dialysis Paper	Packing:	For solid packing
Principle:	Flat plate thermoforming and heat sealing	Travel Range:	Adjustable	Use:	Pharmacy factory
Cutting Frequency:	6-70 times/min	PVC Rigid Sheet:	0.25-0.5*260mm	PTP Aluminum Foil:	0.02-0.035*260mm
Dialysis Paper:	50-100g*260mm
