DW series mesh belt drying machine for food industry,China JIANDA price supplier

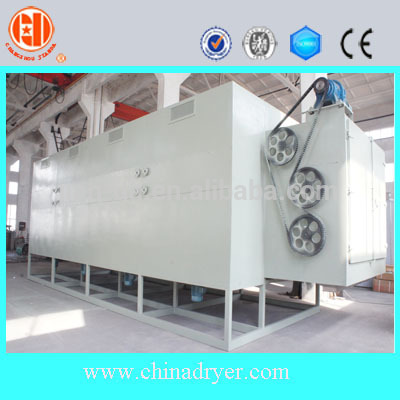

DW series mesh belt drying machine for food industry

FOB Price:Price can be negotiated

Production Capacity:6 Set/Sets per Month

Payment Terms: US $1 - 100,000 / Set

Update Time:2021-11-19

Contact Supplier

Product Description

apply for Dehydrated vegetable,union, garlic,fruit, organic,plastic, rubber, wood,electronics elements,calcium,chemical products

DWT Series mesh belt dryer

JIANDA brand mesh belt dryer: Advanced drying capacity, low energy consumption,qualified product, fast drying speed.

Application:

DWT Series belt dryer is automatic and continuous type drying equipment. It is used for drying piece, Noodle shape and granule products with good ventilation. This machine is also suitable for producing dehydration vegetable and fruit, herbal medicine of traditional Chinese medicine and others, which with high moisture containing and low drying temperature. The machine owns the advantages, that its drying speed is fast, the evaporation strength is high and the product quality is good.

Principle of work

The materials are uniformly load on the mesh-belt by feeder. The mesh-belt uses generally 12 - 60 mesh stainless steel screen and it is drawn and moved inside mesh belt dryer by a transmission device. The drier is composed of several units. For each unit, the hot air is circulated separately. Temperature in each unit is separately controlled. Air blowing speed and exhausting moisture humidity is also measured by probes.

Drying process is : hot air passes through the mesh-belt from the top to the bottom or from the bottom to the top, and this will complete the heat and mass transfer process. The air pipe of the top is connected with fan, one part of air is circulated, some exhausted gas is discharged with a special moisture exhausting blower, and other waste gas is controlled through an adjustment valve. The unit amounts can be selected according to the demand.

Model	DW3-1.2-8	DW3-1.2-10	DW3-1.6-8	DW3-1.6-10	DW3-2-8	DW3-2-10
Unit number	4 × 3	5 × 3	4 × 3	5 × 3	4 × 3	5 × 3
Belt width (m)	1.2		1.6		2.0
Drying section length (m)	8 × 3	10 × 3	8 × 3	10 × 3	8 × 3	10 × 3
Thickness of the material to be covered (mm)	10-80
Temperature (°C)	50~150
Steam pressure (Mpa)	0.2~0.8
Steam consumption (kg/h)	360~600	420~720	450~840	480-960	1510-1080	630-1350
Heat exchange area(m 2 )	816	1020	1056	1320	1344	1680
Drying strength (kgH2O/h)	150-450	240-650	220-600	280-750	300-600	350-850
Fan amount	14	17	14	17	14	17
Total power of the blower (kw)	30.8	32.6	30.8	32.6	54.2	56
Total power of the equipment (kw)	35.3	37.1	35.3	37.1	58.7	60.5
Overall dimensions (L × W × H)	9.77 × 2.2 × 4.7	11.7 × 2.2 × 4.7	9.77 × 2.6 × 4.7	11.7 × 2.6 × 4.7	9.77 × 3.06 × 4.7	11.77 × 3.06 × 4.9
Weight (kg)	4800 × 3	5780 × 3	5400 × 3	6550 × 3	6350 × 3	7800 × 3

Place of Origin:	Jiangsu China (Mainland)	Brand Name:	JIANDA	Model Number:	DW
Type:	grain Processing Equipment"> Grain Processing Equipment	Processing Types:	Fruit & Vegetable	Processing:	Dryer
