egg cooking machine/to cook canned mushrooms,China wanbao price supplier

egg cooking machine/to cook canned mushrooms

FOB Price:Price can be negotiated

Production Capacity:200 Set/Sets per Month

Update Time:2021-06-10

Contact Supplier

Product Description

egg cooking machine/to cook Canned Mushrooms
1.low power
2.All SUS304

egg cooking machine/to cook canned mushrooms

1. Introduction of Fruit Jam making jacketed pot /Stainless steel Jacket pot with mixer

The jacketed kettle is suitable for mixing, concentrating and decocting the material in pharmaceutical, foodstuff and chemical industry etc. It is the best choose for jam making such as the matt jam and strawberry jam making, tomato sauce making. and candy, medicine, dairy, alcohol, cake, beverage, sweetmeat.

Attached the below final product from the electric stainless steel jacketed pot

2. Structure of Stainless Steel electric jacketed pot with mixer

We have the jacketed kettle with vertical type and tilting type. For the tilting type, the jacketed kettle is consist of pan, plank ,worm wheel and worm. The pan can turn with 180°.So it is easy for taking out the material. The jacketed kettle can configure the mixing system according to diffeent craft demand Steam heating and electric heating and gas heating are for your options.

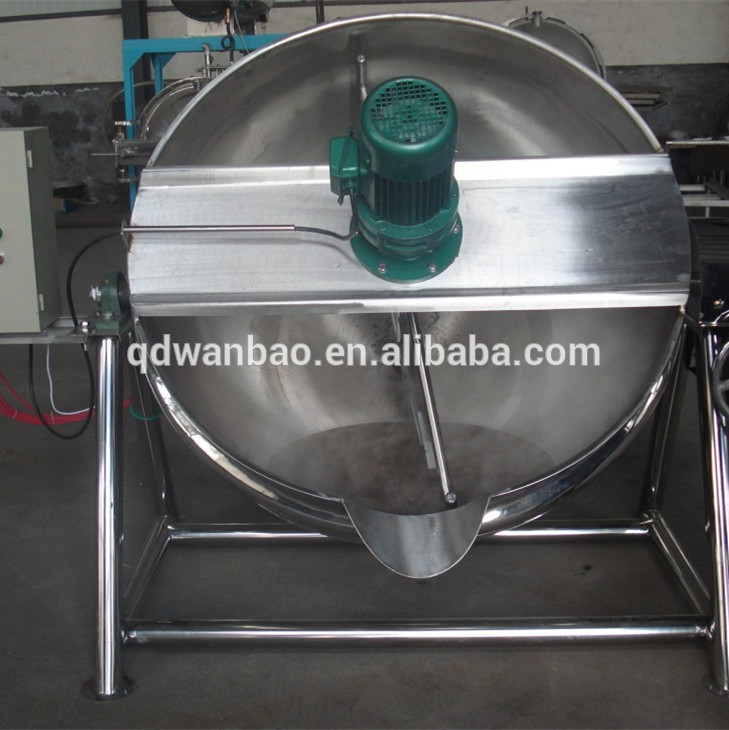

This type is tilting type with electric motor and stirrer.

3. Features of Stainless Steel electric jacketed pot with mixer

Machine material:SS304/316L

Capacity ::Normally is 50L-600L but can be as your demand

Type: tilting or vertical

Heating model: electrical, Steam or Gas

Agitator: available

4. Characteristics of Stainless Steel electric jacketed pot with mixer

1) Full burning, smokeless,dust-free, little carbon, and no environmental pollution.

2) Flame temperature can be regulated optionally, highest temperature 300 °C or so.

3) Reasonable structure and convenient operation.

4) Energy saving, fierce fire, thermal efficiency is increased by 25% or so compared with similar products.

5) Fuel: liquefie d petroleum gas (LPG), pipe coal gas, natural gas, and oil is strictly prohibited.

6) Gas consumption: about 20% lower than the similar products

7)Uniform heating

5.Technical parameters-- electric jacketed pot :

Model		50	100	200	300	400	500	600	800	1000
Caliber(mm)		Φ 600	Φ 700	Φ 800	Φ 900	Φ 1000	Φ 1100	Φ 1200	Φ 1400	Φ 1500
Depth of Pot(mm)		400	450	530	630	680	730	780	830	900
Heating area(m2)		0.45	0.58	1.12	1.42	1.75	2	2.3	3.2	3.9
Boiling time(min)		5	8	11	14	18	22	25	34	40
Interface size	Steam pipe	3/4 ”			1 ”				2 ”
Interface size	Condensate pipe	3/4 ”				1 ”
Working pressure		≤ 0.09Mpa/0.25Mpa/0.5Mpa(can be adapted according to customers ’ requirement)
Stirring speed		36 r/min(can be adapted according to customers ’ requirement)
Stirring power(Kw)		0.55	0.55	0.75	1.1	1.1	1.5	1.5	2.2	2.2
Scraping edge stirring power(Kw)		0.75	0.75	1.1	1.5	1.5	2.2	2.2	3	4

6. electric jacketed pot pictures for reference:

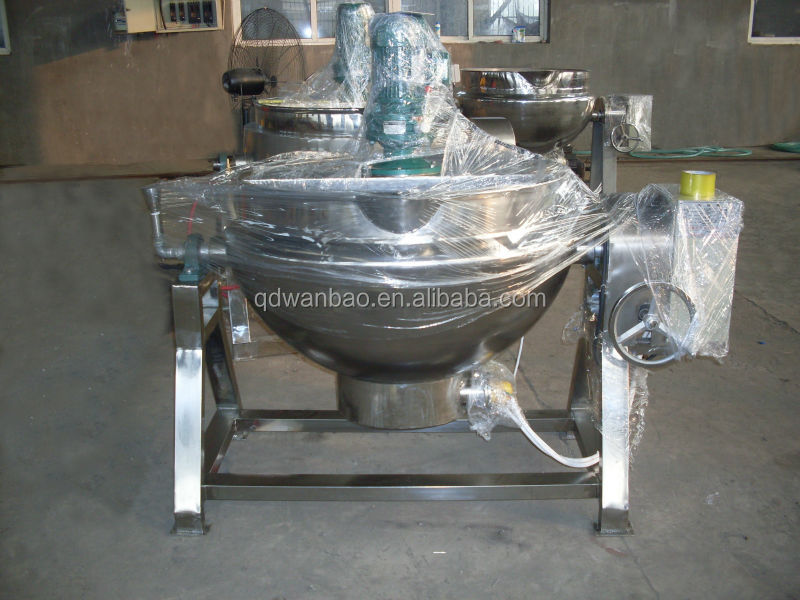

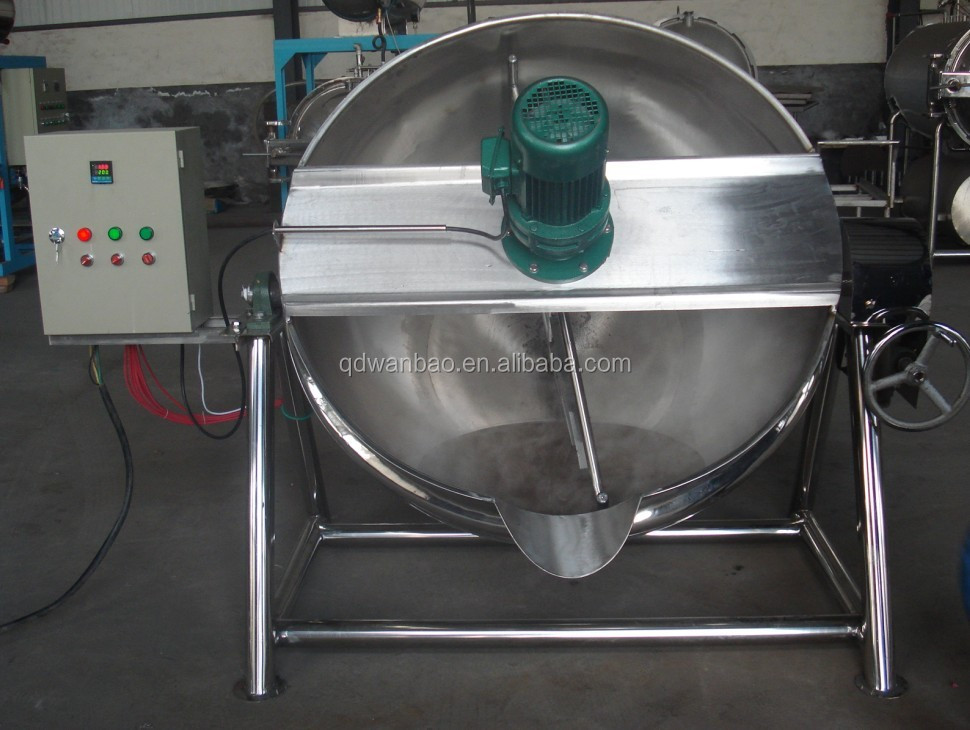

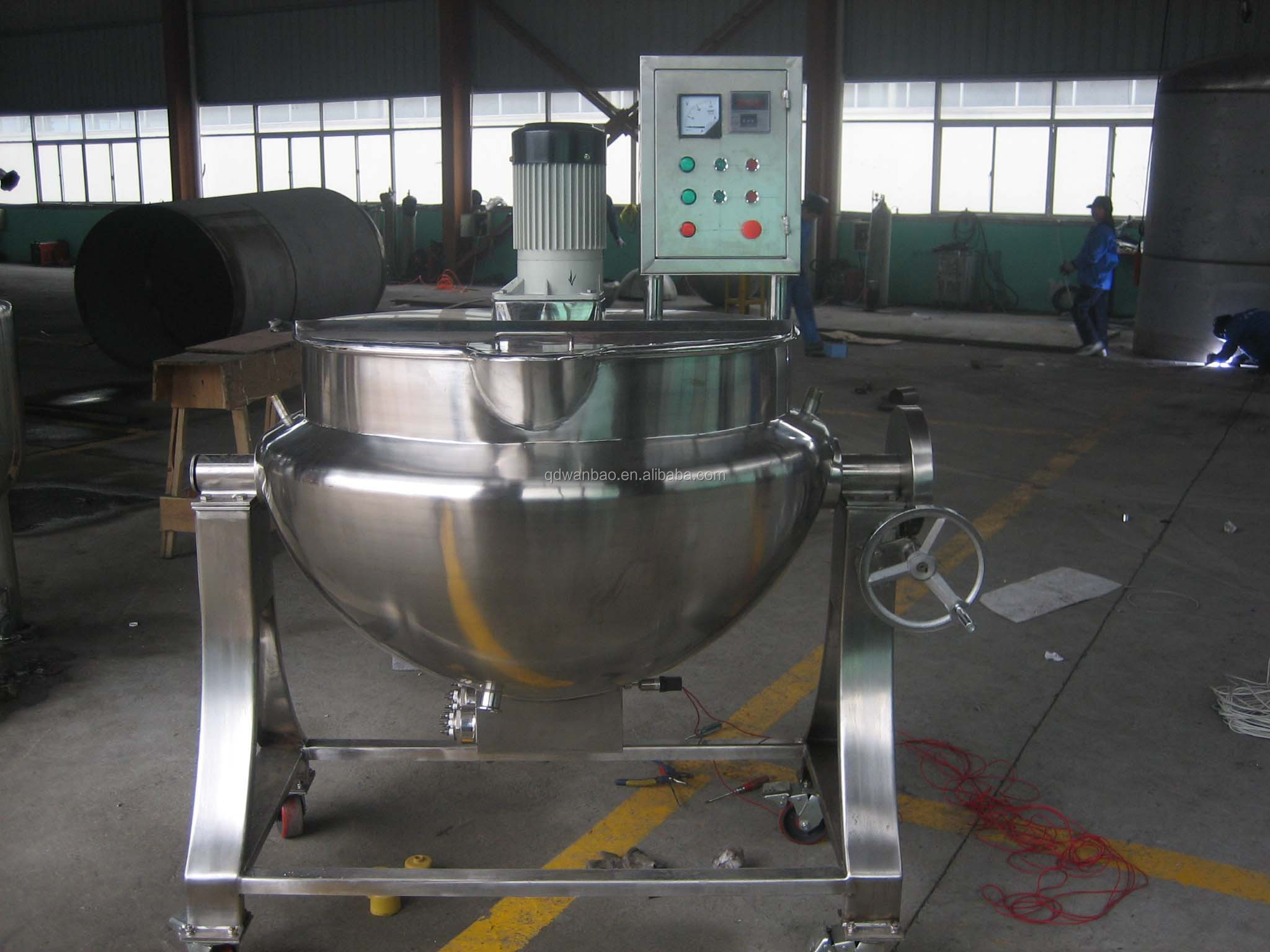

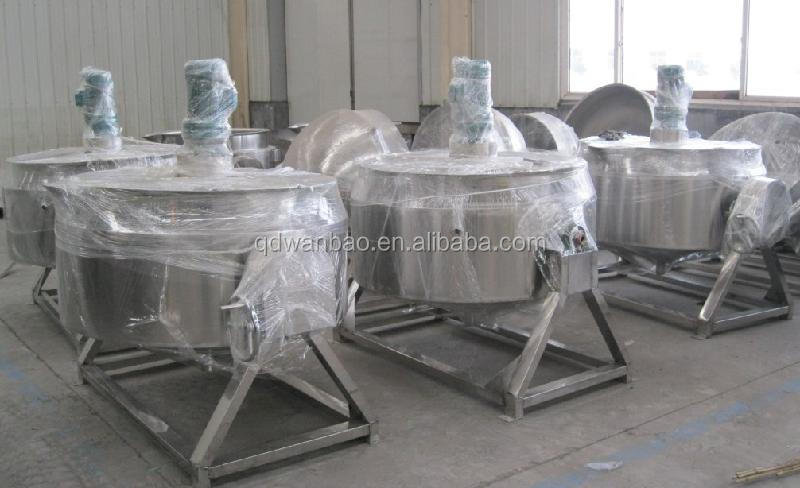

1)electric jacketed pot with mixer-can be overthrown

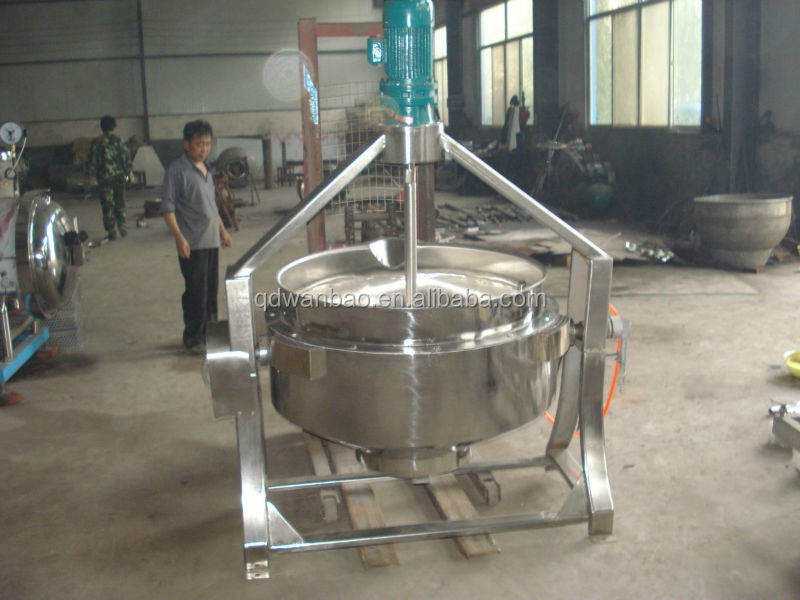

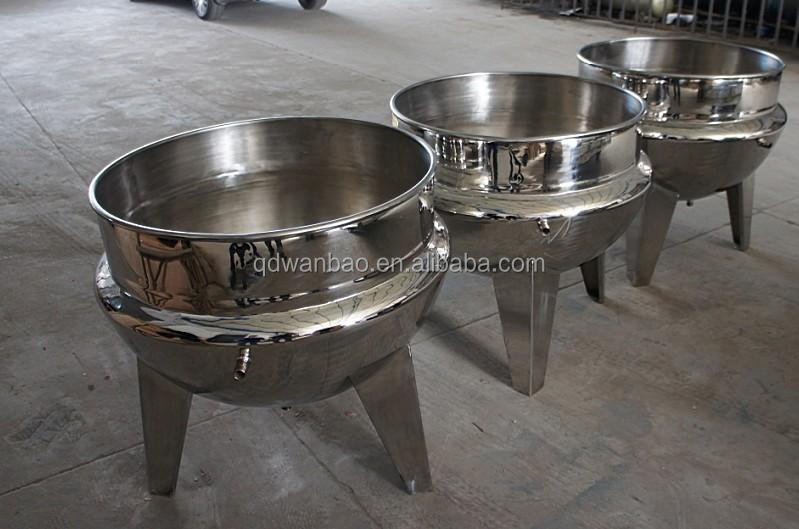

2)electric jacketed pot --fixed type

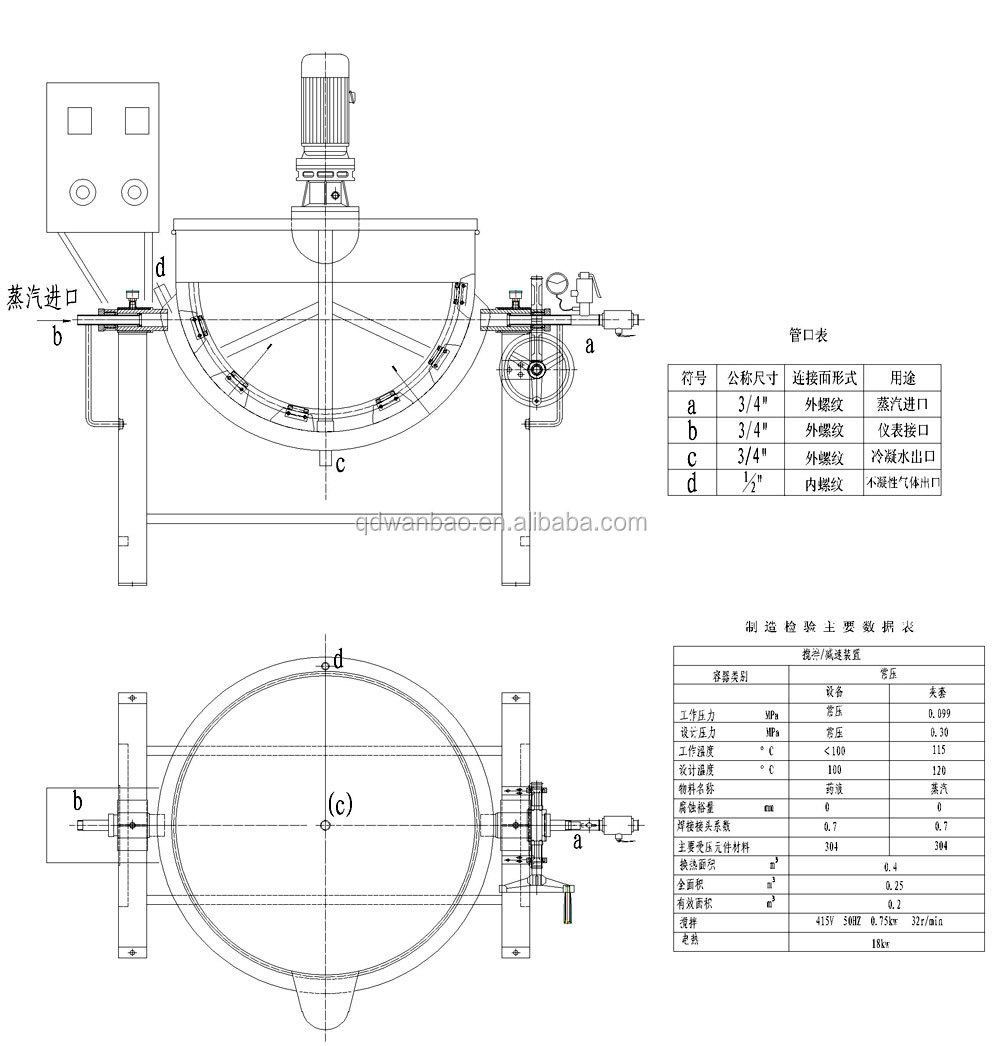

7.jacketed pot structure

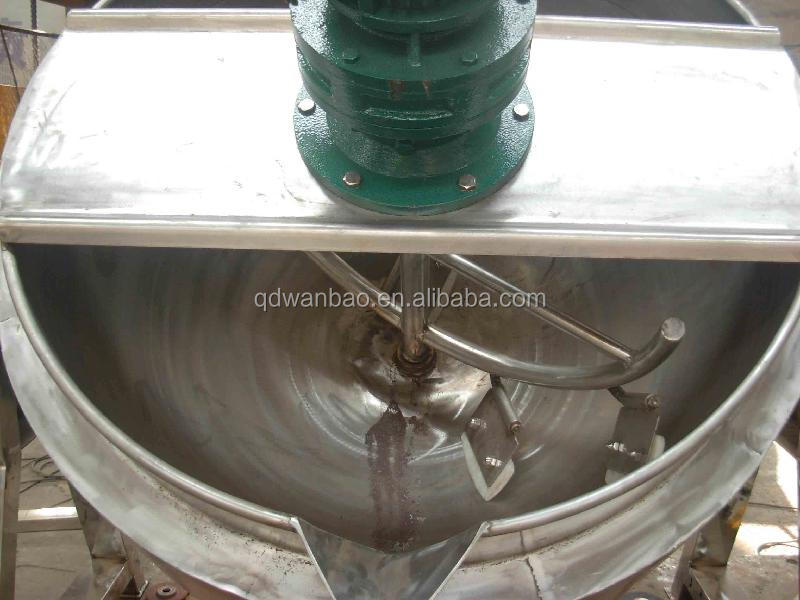

8.Electric jacketed pot mixer(stirrer/agitation ) picture shows:

9. contact information

Place of Origin:	Shandong China (Mainland)	Brand Name:	wanbao	Model Number:	wb-100
Type:	Cooking Equipment	After-sales Service Provided:	Engineers available to service machinery overseas
