EPE Foam Sheet Thickener(FC-1200),China FC EPE Foam Sheet Extruder Line price supplier

EPE Foam Sheet Thickener(FC-1200)

FOB Price:Price can be negotiated

Production Capacity:100 set per year

Payment Terms: FOB

Update Time:2024-07-11

Contact Supplier

Product Description

EPE Foam Sheet Thickener description:

FC-ZH Series foam sheet (pearl wool) bonding machine is essential special equipment for deep processing. It is used to bond double or multi-layer when the thickness of once forming sheet is insufficient. The thickness after processing can reach 4-100mm thus expand the applied range of PE foam sheet.

This machine is based on air as heat transfer medium and use high-temperature wind to bond two pieces of PE foam sheets by extruding to make the foam sheets compound thickening. After bonding, the strength and thickness of foam sheet can be improved. The bonded product is widely used in electronic products packaging, building inner layer, sound insulation and thermal insulation etc.

Structure characteristicof EPE Foam Sheet Thickener:

1. The bonding machine consists of unwinder, heating bonding, roll-in and pulling, the structural design is close-knit and reasonable, running steadily.

2. The power of bonding machine is 2.2kw and it adopts frequency control manipulation easy to adjust freely, manipulation easy to adjust freely.

3. The heating box adopts pneumatic opening and closing, far-infrared heating tube and temperature meter intelligent temperature control

4. The pulling adopts torque motor control and automatic tension.

Machine Unit of EPE Foam Sheet Laminating Machine:

1: Heating Roller:

Size: Size of laminating— Heating roller: 270mm× 1600mm

Laminating— roller Pressure: 3-7kg/cm2

Laminating material: Surface treatment by teflon

Heating Method: Electric heating

There is conducting hot oil inside laminating roller, the conducting effect is very good.

Temperature of hot roller: 90-130

Heating power: 18KW

2: Rubber Roller:

Size of rubber roller: 270mm*1600mm

Rubber hardness: HS-A700

Drive power: 1.5KW

3: Winding motor: 8N. M

4: Expending roller: 100mm× 1600mm× 1set

5: Winding unit torque motor control

Driving method: Gear box driven by motor, direct transmission, easy operation, safety and beauty.

6: Control unit:

Electric control cabinet one set

For temperature control: Adopt high accuracy intelligent temperature controller, set PID controller inside, guarantee the working temperature control accuracy for motor control: Adopt inveter control it. Adjust and choose rotating speed by working condition

Equipped with meter counter. Length can be freely set as needed. After reaching the set length, meter counter will give signal. Signal ringing.

Light curtain protection unit one set, if the body or something will enter into the gap of heating roller carelessly, the curtain will send a signal to make the rollers separate to ensure body safe and equipment undamaged.

EPE Foam Sheet Thickener and products:

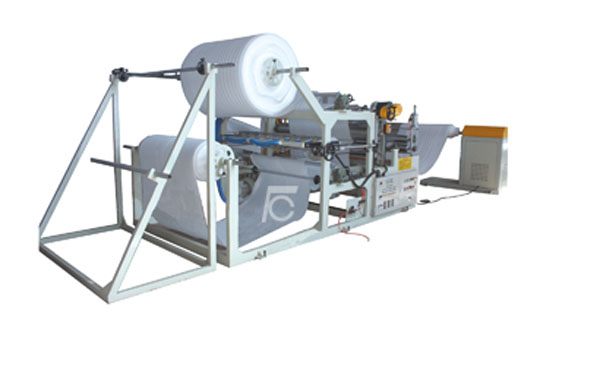

Our EPE Foam Sheet Thickener：

The main products of EPE Foam Sheet Thickener：

Please contact me:My name is Lewis and I work with Longkou FuChang Packing Machinery Co.,Ltd. We are factory specializing in the manufacture and export of paper pulp moulding machine ,egg tray machine, epe foam sheet extruder ,epe foam fruit net/pipe extruder etc since 1995.Our egg tray machine and epe extruder machine have acquired the CE Certification

Main Technical Parametersof EPE Foam Sheet Laminating Machine:

Model	Unit	FC-1200	FC-1500	FC-1800
Product W idth	mm	1200	1500	1800
Heating Method		Electrical heating
Driving P ower	k w	1.5	2.2	2.2
Installed Power	k w	20	25	30
Dimension	m	4 .5x1.8x1.8	4 .5x2.2x2	5x2.4x2.2
W eight	t	2	2.5	3
