Experimental Sterilizing Machine

1. Product Features

Adjustable flow rate:1)Through serial connection with the homogenizer, frequency conversion control to the flow rate of the homogenizer can be realized:Semi quantity or full quantity (steples speed adjustment) 2)Under the condition of no serial connection with the homogenizer, the flow rate can be controlled through adjusting diaphragm valve.

Adjustable temperature: Input temperature requirements and the sterilizing temperature can be automatically adjusted by PLC, which is adjustable within the range of 63-140.

Applicable to different varieties: Through numerous desings, it can satisfy pulp, jam and liquid materials containing granules.

Bench scale experiment: It can satisfy bench scale experiment of 3-5L, which can save the experimental cost to the maximum extent (the equipment memory is 1.5L).

Working environment :The equipment is provided with 8kw power without the need of additional power supply.

Standard accessories: homogenizer 120L/h 60Mpa,3000kw ice water machine unit

Optional :yoghourt fermenting tank, aseptic canning operation desk.

2. Brief introduction

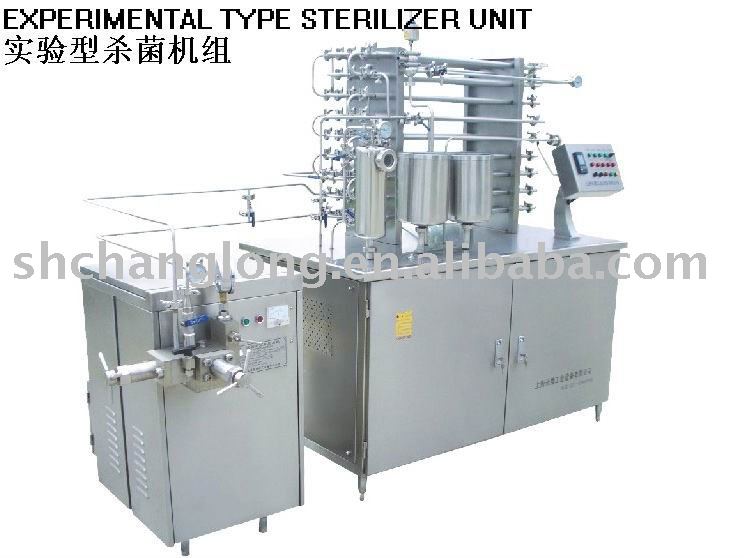

The experimental type sterilizer unit is a tubular sterilizer unit specially designed to obtain test data for the laboratory. Integrating heating, Sterilization, cooling and heat recovery,it fully simulates the actual production situation of the workshop and truly reflects the production data for the laboratory. The sterilizer unit is provided with pasteurization, high temperature instant sterilization and ultra-high temperature sterilization, which can realize the aseptic status if equipped with aseptic canning (or aseptic sampling valve).

Applicable products:

It is applicable to FRUIT JUICE containing pulp with granules under 3mm, jam, Soy milk, chocolate milk, cocomilk, condensed milk, thin cream, milk lactobacillus, beverage and other similar heat sensitive materials. It can satisfy CIP cleaning for the equipment.

The equipment is provided with touch screen and PLC programmable logic controller, which can dynamically reflect all parameters such an temperature and flow rate of products with simple and flexible operation

3. Production capacity

Pasteurization: 30~100L/h 5°C-10°C→65°C(Homogeneous)→85°C~95°C15S→5-43°C

High temperature instant sterilization:100L/h 5°C-10°C→65°C(Homogeneous) →120°C15S→5°C

Ultra-high temperature sterilization(UHT): 30~50L/h 5°C-10°C→65°C(Homogeneous) →140°C4S→25°C

4. Technical Parameter

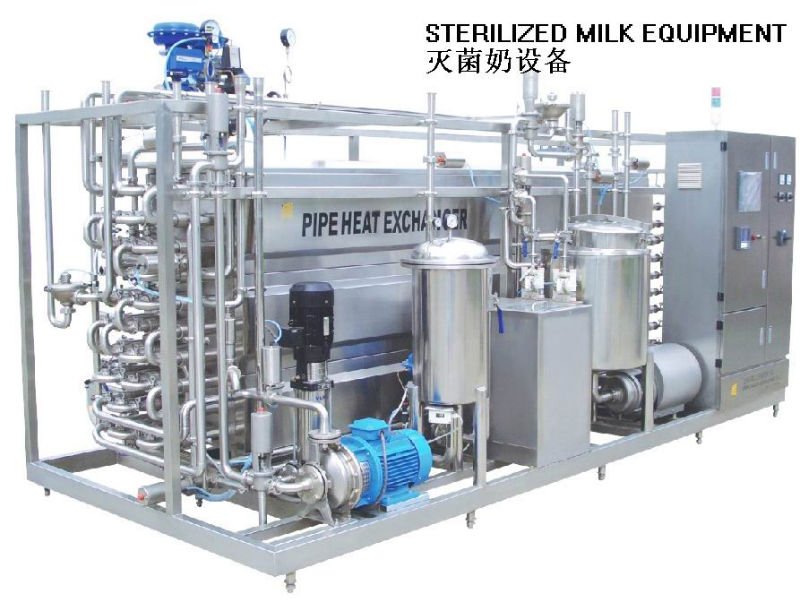

 5. product pictures
