filling capping machine for cocoa powder,China NF price supplier

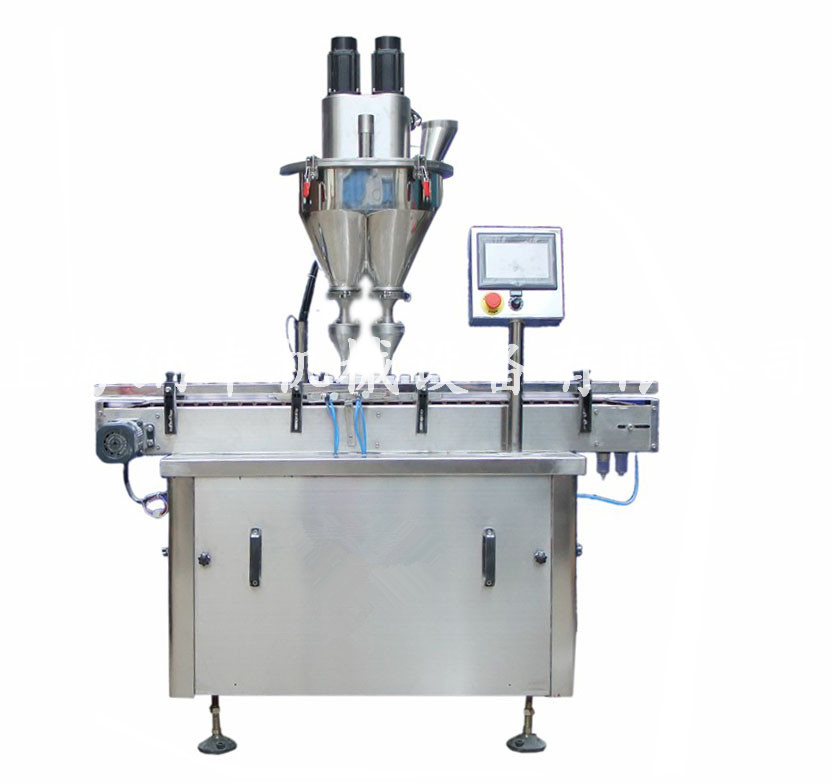

filling capping machine for cocoa powder

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $12,000 - 12,800 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

1.SS304 cover
2.Screw dosing
3.Filling and capping

Product Description

1. meet GMP standard

2. high output due to 8 or 12 noses for filling and stoppering

3. adopt PLC control and touch screen for display and operation

4. adopt frequency conversion to control productive capacity

5. ceramic pump , stainless-steel pump and creeping pump is optional for Filling Machine

6. If there no vial ,the machine can automatically stop filling and stoppering.

7. servo system is for optional for filling (Deta,Mitsubishi, Siemens)

8. the filling machine is adopted horizontal synchronous belt to convey bottles with its features of high-speed ,accurate and easy to change part

9. the stoppering part is adopted horizontal belt for stopper feeding and horizontal disk for stopper inhaling,which is easy to observe ,convenient and high-speed to feeding

Main Technical Parameters

Power Supply	380V, 50HZ
Suitable Specifications	2-20ml
Power	2KW
Measuring Error	filling volume :1ml
Breaking rate	≤0.1%
Qualified rate of cork-putting	≥98%
Pumping rate of Vacuum Pump	20m³/h
Gross Weight	approximate 600KG
Production Capacity	30-60 bottles/min
Dimension	2000(L)×1000(W)×1500(H) mm

Type:	Filling Machine	Condition:	New	Application:	Beverage,Commodity,Medical
Packaging Type:	Bottles	Packaging Material:	Plastic,Metal,Glass	Automatic Grade:	Automatic
Driven Type:	Electric	Voltage:	380V	Power:	2.0KW
Place of Origin:	Shanghai China (Mainland)	Brand Name:	NF	Model Number:	NFGX-5/50
Dimension(LWH):	200010001500MM	Weight:	600KG	Certification:	CE
After-sales Service Provided:	Engineers available to service machinery overseas

Company Profile

Name: Shanghai Nafeng Machinery Equipment Co., Ltd.

Main Products: bottle arranging machine,washing bottles machine,filling and capping machine,tablets counting machine,sealing machine

Business Type: Manufacturer, Trading Company

Total Employees: 51 - 100 People

Established Year: 2011

Shanghai Nafeng Machinery Equipment Co., Ltd. is a manufacturer of filling and capping machines with well-equipped testing facilities and strong technical force.

With a wide range, good quality, reasonable prices and stylish designs, our products are extensively used in food and pharmaceutical field and other industries.

Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.Specializing in all kinds of machines production, including: filling machine, capping machine, crewing machine, bottle washing machine,counting machine,labeling machine and so on.

We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success! more
