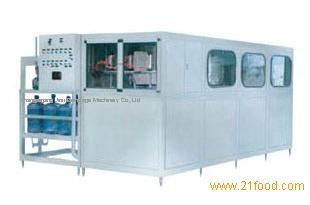

filling machine Usage:
The parts that touch with the raw materials made of stainless steel, the main electronic components are Mitsubishi, Ohm Company’s products, the filling machine is controlled by PLC programming
Main Technical Parameter:
| Throughput(drum/h) | 100-120barrels/hour |
| Washing Two Size | 3*2 Washing Position, 1*2 Dripping Position |
| Filling and Capping mouth | 1*1 |
| Power(kw) | 2.2 |
| Water Consumption(kg/h) | 500 |
| Dimension(mm) | 3800x770x1600 |
| Weight(kg) | 800 |
QGF-600 Barreled Machine Filling machine-Main Technical Parameter
| Model | QGF-80 | QGF-120 | QGF-240 | QGF-300 | QGF-450 | QGF-600 |
| Filling Mouth | 1 | 1 | 2??? | 2 | 3 | 4 |
| Barrel Size(mm) | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 | Φ276×490 |
| Throughput (barrel/hour) | 80-100 | 120 | 240 | 300 | 450 | 600 |
| Gas Pressure | 0.4-0.6Mpa | |||||
| Gas Consumption | 0.6 | 0.6 | 0.8 | 0.9 | 1.8 | 2.5 |
| Power KW | 1.38 | 1.75 | 2.1 | 3.0 | 3.8 | 6 |
| Rated Voltage | 380V/50HZ | |||||
| Dimension(mm) | 3100×650×1550 | 3190×650×1550 | 3100×900×1650 | 3100×900×1650 | 3550×1100×1800 | 3800×1100×1800 |
| Weight(kg ) | 680 | 800 | 800 | 1000 | 1600 | 2300 |
| Capacity | 18.9 L | |||||
The factory is specialized in producing the equipments for production lines forcarbon dioxide-bearing beverage and varieties of non-carbon dioxidebearing
beveerage. The technology of ourfactory is always in the lead and the products
have a nuique style we products is reliable and the consummate service after sale
is trustworthy Products of our factory, not only gorgeously but practically will have??you ageat success.??
????Wish you lucky and welcom the friends from all parts of China.
????The factory is specialized in producing the equipments for production lines for carbon dioxide bearing beverage and varieties of non carbon dioxidebearing
beveerage. The technology of ourfactory is always in the lead and the products
have a nuique style we products is reliable and the consummate service after sale
is trustworthy Products of our factory, not only gorgeously but practically will haveyou ageat success.
|
|
|
|
|
|
|
|
|
|
|
|
|
|
