1,flour.html" style="text-decoration:underline;font-weight:bold;" target='_blank'>Wheat Flour mill machine
2,Have passed ISO9001
4,Reasonable Price
5.Rich experience in export
Technological process:
The total power: 10 KW
power consumption per ton wheat: 10KW.H, the voltage: 380V,50HZ.
6FD-35/40 STYLE FLOUR-MILLING MACHINE
6FD-35/40 style flour milling machine is the latest products designed by our factory.
The advantage of it is : no groundhole, lifting the wheat, receiving the bran and flour on the ground,
operating, maintaining and operating is easy, which can process the wheat auto matically and reduce
the intensity of labour.
No |
style |
output |
power |
Packing size: L×W×H (mm) |
20’ container |
1 |
6FD-30 |
300kg/h |
8.6 |
2000x950x1400 |
1/10 |
2 |
6FD-35 |
300-400kg/h |
8.6 |
2300x1000x1400/900×800×800 |
1/9 |
3 |
6FD-40 |
350-450kg/h |
12.5 |
2300x1020x1400/950×900×900 |
1/9 |
4 |
6FD-50 |
450-550kg/h |
17.2 |
1150x800x700/2000x1000x1320 |
1/8 |
5 |
6FD-60 |
550-650kg/h |
20.7 |
1250x800x750/2300x1100x1400 |
1/7 |

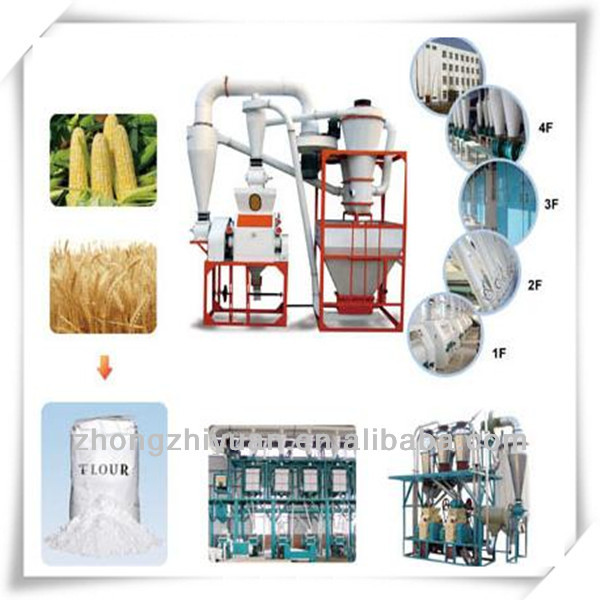

1-1000Ton wheat flour milling machine
|
|
|
We provide Turnkey project 10T-1000T/24H complete flour milling machinery. |
|
Advanced technology support and customized design. |
|
Floor structure and steel structure design |
|
Thorough crafts and rational allocation. |
|
Dust-free design and low power consumption. |
Perfect after-sales service. |
|
|
One year guarantee. |
For example :Hard wheat
Flour extraction
Product structure: can product one kind flour, can also be combined a variety of flour .
Standard : 75-80 % Ash content :less than 0.80%
Grade 2 : 72-75% Ash content :less than 0.72%
Grade 1 : 67-72% Ash content :less than 0.68%
Production Capacity : 500Sets per year
20 years experience in flour mill industry
Best solution for wheat and Maize processing system
The biggest flour mill machine manufacturer and exporter in China
Exporting to more than 40 countries with a presence world wide.
High quality and efficiency technology
Our products are exported to Australian, America , Canada, Belgium, Egypt, Algeria, Zambia, Congo, Kenya, Ethiopia, Uganda, Yemen, Tanzania, Tajikistan, Afghanistan, Vietnam, Israel, Mozambique,Kazajastan and other country
Packaging Details: |
|
||
---|---|---|---|
Delivery Detail: | 2 MONTHS AFTER THE downpayment
|
Condition: |
New
|
Place of Origin: |
Henan China (Mainland)
|
Brand Name: |
ZZY
|
Model Number: |
6FD
|
Production Capacity: |
1000Kg
|
Voltage: |
380
|
Power(W): |
10kw
|
Weight: |
2400
|
Dimension(L*W*H): |
1400*1410*1850m
|
Certification: |
ISO9001:2008
|
Warranty: |
one year
|
After-sales Service Provided: |
Engineers available to service machinery overseas
|
Maximum power consumption: |
less than 80kw/t
|
size: |
1400*1410*1850m
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
