Flow Wrapping Machine For Chocolate Bar Packing LineJY-660/DXD-660,China JOYE price supplier

  Applications:

This is flow wrapping machine is suitable for packing products as chocolate, products coated with chocolate,biscuits, wafer, bread, Cakes and so on.

 Picture of reference:

  chocolate bar Packing LineJY-660/DXD-660" data-width="600" data-height="600" ori-width="600" ori-height="600" />

Main Technical Parameters :

1. Max. Production Capacity: 700bags/min

2. Packing Range: Length of Bag: 55-72mm

Width: 15-35mm

Height: 5-20mm

3. Max. Dia of Film: Ø300mm

4. Max Width of Film: 150mm

5. Gross Power: 7.8Kw

6. Power Supply: 380V 50Hz

7. Gross Weight: 1300kg

8. Overall Dimension: 7150*1000*1700mm

( This parameters is for customers' reference only, we can design and produce machine according to customers'

special needs.)

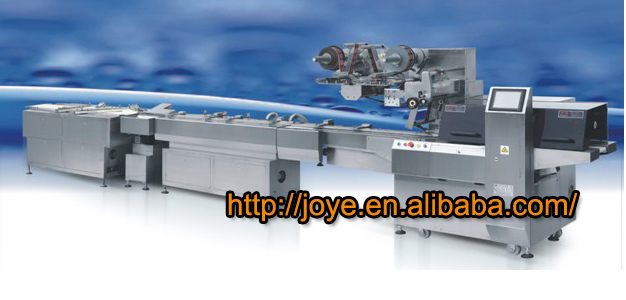

  Machine picture:

Main function and features:

1.Flow Wrapping Machine For Chocolate Bar Packing Line adopts full servo intelligentized control and runs with low noise, which makes the working condition more comfortable.

2.Flow Wrapping Machine For Chocolate Bar Packing Line is highly automated. It can be connected to Production Line directly; the processes of feeding,forming, filling and sealing are fully automatic.

3.Flow Wrapping Machine For Chocolate Bar Packing Line adopts industrial touch screen, human-machine interface. It intuitively shows the parameter and has the menu operation, which makes operators easier to use.

4.Flow Wrapping Machine For Chocolate Bar Packing Line has device for film auto-connection, which makes processes of packing more smoothly.

5. Unique design of machine makes high speed auto-packing of products with smaller size come true.

Production Flow:

           Products Production Line -- Tiding -- Conveying -- Arranging -- Pillow Type Packing

  Language:

1. English

2. Chinese

Other DeviceWe Can Supply :

  Date Printer

our  factory:

...
