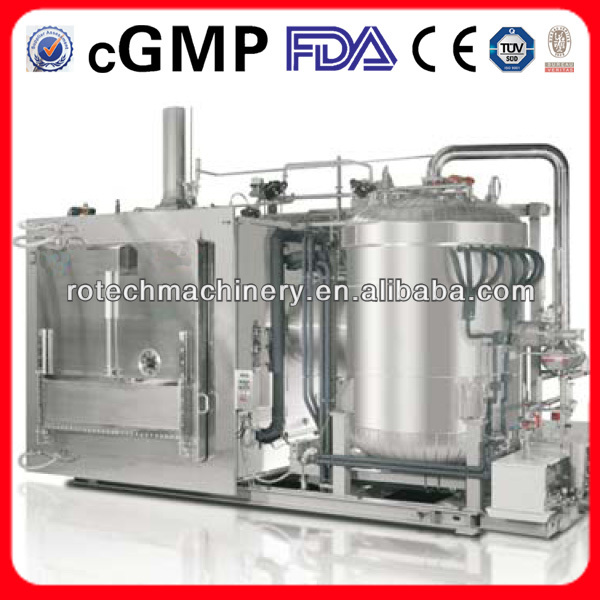

Steam Sterilizable Lyophilizer(FDA&cGMP Approved)
Rotech Steam Sterilizable Lyophilizer is widely used in Food&Drug Processing
Steam Sterilizable Lyophilizer(FDA&cGMP Approved)
Design and Manufacturing According to FDA&cGMP Standard
20 Years Manufacturing Experience
Detailed Product Description
Mainly applied for pharmaceutical industries blood , bacterin and antibiotics production.
The dryin capacity from 200KG to 400KG.
Mainly applied for pharmaceutical industries blood , bacterin and antibiotics production. The drying capacity from 200KG to 400KG. The machine has compact design to reduce the occupation of plant area. Machine compliance with GMP, all the system has modular design, more easily for maintenance and operation, and its best choice before mass production started.
Features
Compact design, Reliability running under high performance, vacuum or air filled stoppering, Eutectic device detector are available. Control system designed with multi-recipe, user can choose different recipe for different process. The control system can automatically validate the machine performance before each production cycle, thus the safety for each production cycle can be ensured.
Customer Option
1:Eutectic point detector
2: Organic solvent collector.
3: Inter-shelf distance adjust mechanism
4: Vacuum or air filled stoppering (with pressure adjustable)
5: Auto moisture judgment on control system
6: CIP/SIP
7: Chamber isolation valve with mushroom/butterfly type.
8: Constant height loading
9: Chamber door with auto/manual lock
10: Chamber vacuum adjust function
Technique Date :
Type |
LYO-10.0 |
LYO-13.0 |
LYO-16.0 |
LYO-20.0 |
Shelf area (m2) |
9.72 |
12.96 |
15.84 |
19.80 |
Shelf size (L*W*T)(mm) |
1200*900 |
1200*1200 |
1200*1200 |
1500*1200 |
Useable Shelf No. |
9 |
9 |
11 |
11 |
Vial loading quantity Φ16 Φ22 |
40000 20000 |
56000 28000 |
68000 34000 |
80000 40000 |
Inter. Shelf distance |
100 |
100 |
100 |
100 |
Ice capacity (KG) |
200 |
260 |
320 |
400 |
Shelf ultimate cooling temperature |
-55 |
-55 |
-55 |
-55 |
Condenser ultimate cooling temperature |
-75 |
-75 |
-75 |
-75 |
Ultimate vacuum(Pa) |
≤1.0 |
≤1.0 |
≤1.0 |
≤1.0 |
Installation dimension(L*W*H)(mm)
|
6000*1750*3800 |
6800*2000*3800 |
6800*2000*4200 |
7500*2000*4200 |
Weight(Kg) |
10000 |
12500 |
15000 |
17500 |
Power(KW) |
63 |
78 |
92 |
120 |
Place of Origin: |
Shanghai China (Mainland)
|
Brand Name: |
Rotech
|
Model Number: |
Lyo-10
|
Type: |
Dryer"> Dryer
|
Application: |
Pharmaceutical Use
|
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
![]() |
