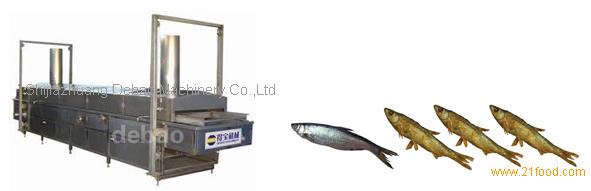

Equipment introduction DBF fish continuous fryers are specially developed for fish and sea food.
Equipment introduction :
- Made by stainless steels
-
Automatic oil temperature control
-
It can filter the dreg automatically and also can be equipped with frying circulation-filtering system
-
Convenience washing
-
Automatic oil-filling
-
Heating way can be electricity , LPG or gas
-
Electricity leaking protector
-
When the temperature anomaly, the safeguard will work and give an alarm
technical data |
DBF-300 |
DBF-400 |
DBF-500 |
DBF-650 |
size |
3000*1350*1950mm |
4000*1350*1950mm |
5000*1550*1950mm |
6500*1550*1950mm |
frying area |
2200*450mm |
3200*450mm |
4200*650mm |
5400*650mm |
oil capacity |
150L |
330L |
410L |
600L |
weight |
350KG |
420KG |
520KG |
850KG |
electrical power |
0.75KW |
1.1KW |
1.47KW |
1.85KW |
power |
36KW |
90KW |
150KW |
200KW |
voltage |
380V |
380V |
380V |
380V |
frequency |
50HZ |
50HZ |
50HZ |
50HZ |
output |
60KG |
150KG |
250KG |
350KG |
temperature |
0-260 |
0-260 |
0-260 |
0-260 |
