Full Automatic Canned Mushroom Production Line ( Filling Sealling and Labeling Line)

FOB Price:Price can be negotiated

Production Capacity:100 Unit/Units per Month

Payment Terms: US $1,000 - 9,999 / Unit

Update Time:2024-09-14

Contact Supplier

Product Description

Use Servo drive., Improve production efficiency and stable performance.Screw Bottle Feeding Device:Use screw feeding system

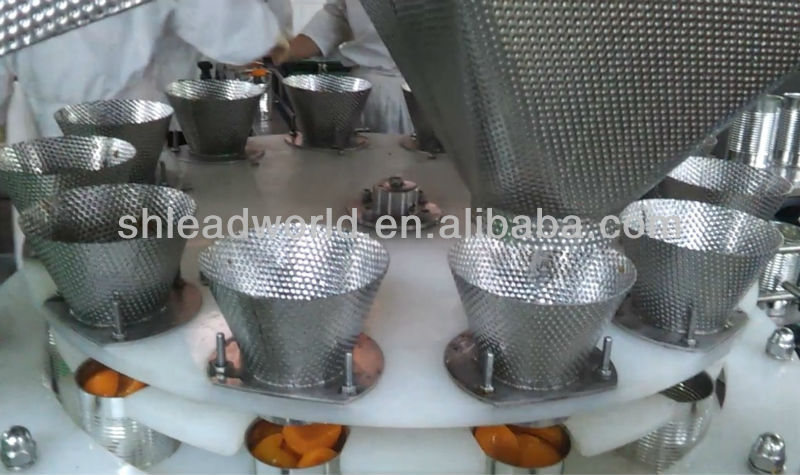

LW-AS60 1 4 A Automatic Rotary Weighing Type Solid Filling System is

c onsists of A utomatic S crew Feeding B ottle Device , R otating D evice, F illing M echanism,

1. Features :

Rotary B ottle Conveyor D evice : Use Servo drive. , Improve production efficiency and stable performance

. Screw Bottle Feeding Device : Use screw feeding system, can solve the problem of bottle falling down

and bottle Stuck , Greatly improve the stability. Conveyor : Flexible connection mode , can choose

according to the location request. It is the most humanized product design.

T echnical P arameters :

Model : LW-AS60-1 4 A Packing Speed : 30-60 bottle/ min Voltage : 220V 50Hz W orking air pressure : 0.5 MPa Total Power : 2.45kw G as consumption : 0.2m 3 /min

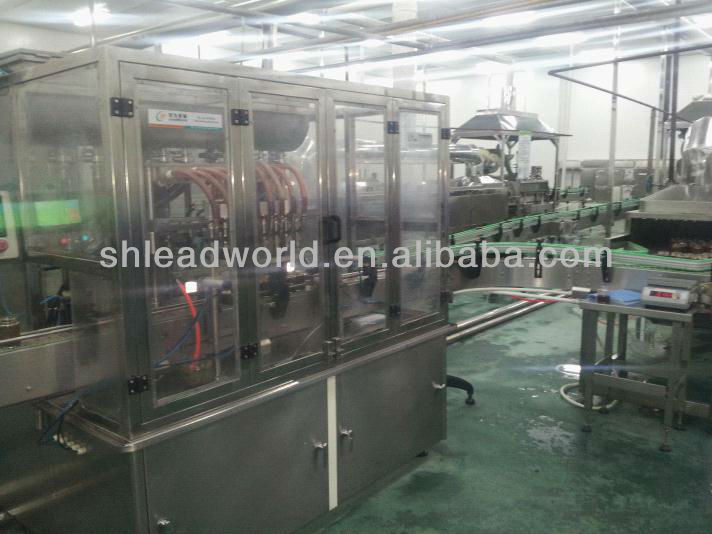

2. Soup Filling Machine :

Technical Parameter :

Filing Head : 12 heads

Capacity : 2 000-3500BP/H

Filling Accuracy : According to the national metrology technical specification

P roduct percent of pass : 0.4%

Air pressure : 0.6MPa

Air Comsumption : 0.3M 3 /min

Filling Type : Atmospheric gravity filling

Filling material : S oup for Mushroom

Total Power : 1.3KW

Rated Voltage : 22 0V

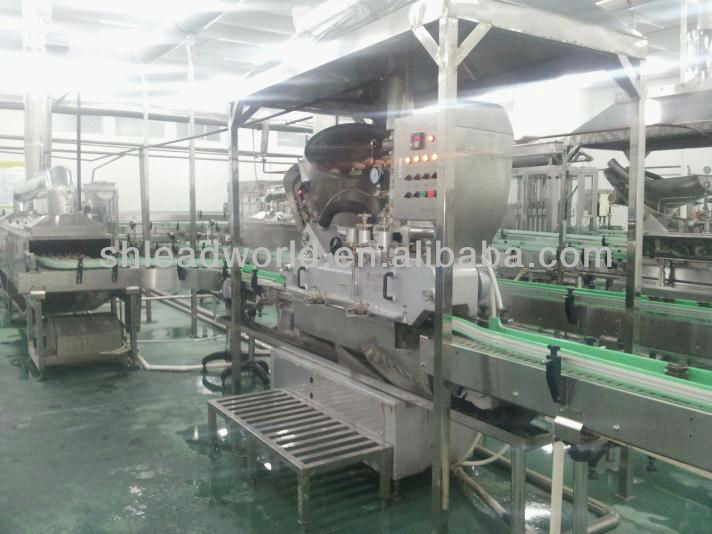

3. Steam Hydrojet T ype Glass Bottle Vacuum Sealing Machine

Technical parameter :

Capacity ( Bottle / min )		100 ~ 6 00
Suit for bottle height ( mm )		60 ~ 280
Suit for bottle Diameter ( mm )	Normal	50 ~ 100
	Big Type	90 ~ 120
	Small Type	40 ~ 80
Cap diameter (mm )	Normal	50 ~ 90
	Big bottle type	90 ~ 115
	Small bottle type	30 ~ 60
Steam demand qty ( Kg / h )		>180
Steam demand pressures ( Mpa )		>0.4
highest vacuum part in the bottle ( Mpa )		≥0.066

Condition:	New	Place of Origin:	Shanghai China (Mainland)	Brand Name:	Leadworld
Model Number:	LW	Type:	Washer	Voltage:	80V
Power(W):	15kw	Weight:	2500kg	Dimension(LWH):	500012002000
Certification:	CE	Warranty:	one year	After-sales Service Provided:	Engineers available to service machinery overseas
grade:	Food grade	material:	Stainless steel	color:	gray
automatic grade:	full automatic	appication:	food canned food

Company Profile

Name: Shanghai Leadworld Machinery Technology Co., Ltd.

Main Products: filling machine,packing machine,conveyor

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 2009

Main Markets: North America, Eastern Asia, South America, Southeast Asia, Oceania

Address: No.551TongLi Road Songjiang Disrict, Shanghai

Shanghai Leadworld Machinery Technology Co., Ltd. is specialized in developing researching and manufacturing various whole sets of packing production systems, and we own marketing, import and export ability. Based on enormous technology strength, we regard market demand as our guide and production development as our responsibility. We can design the best economical reasonable solutions and programs.

Advanced design, professional technology and precise manufacture are our remarkable characteristics. Our company adheres to ISO9001:2000 International Quality Management System and has established a Quality Guarantee System based on integrity to ensure the quality and performance of our products.

Our company is devoted to digesting and absorbing internationally advanced science of processing and automatic equipment. We have cooperated with customers from Canada, Italy, Germany and Switzerland for a long time, and have developed various whole sets of advanced filling packing and conveying equipment reaching professional advanced level. Our automatic production system is widely used in food, beverage, dairy product, canned product, cosmetic, lube, medicine, chemistry and other fields.

Leadworld can supply the best solution of whole sets of automatic production, filling, packing and logistics system.

Our goal is leading the world! more
