Automatic Candy Machine
1.two/three -color candy,filled hard candy,mint candy etc
2.PLC cont

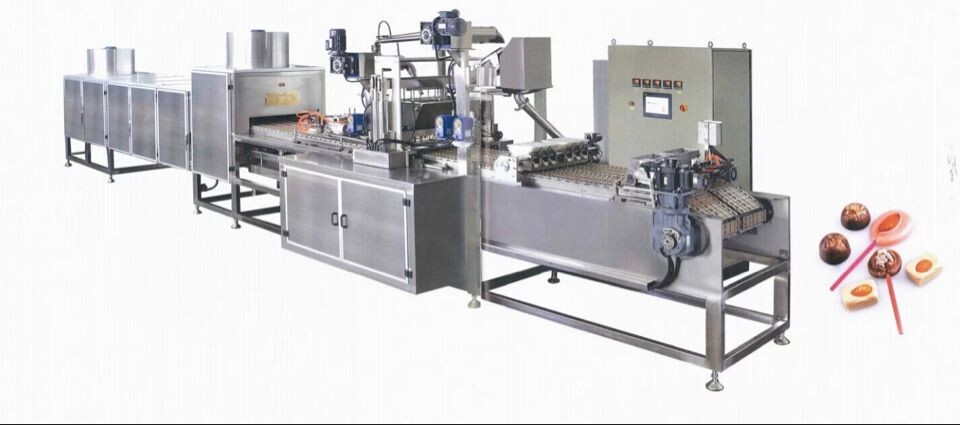

Full automatic hard candy machine
MAIN FEATURES:
* PLC /computer process control available;
* An LED touch panel for easy operating;
* Optional (mass) flowing controlled by Frequency inverters ;
* In-line injection, dosing and pre-mixing techniques for the proportional addition of liquid(milk); Dosing pumps for the automatic injection of colors, FLAVORs.html" style="text-decoration:underline;font-weight:bold;" target='_blank'> Flavors and acids
* One set of extra chocolate paste injection system for making chocolate-central candies; "two/three-color striped depositing”,” two /three–color double layers depositing", "central filling", "clear" hard candies, lollipop can be made.
* Moulds can be made according to the candies samples provided by the customer."
WORKING PROCESS:
Raw material dissolving→Conveying→Filting→Storaging→Constant syrup converying→Pre-heating→Micro-film vacuum cooking→Mixing with flavor and color→Depositing→Stick Inserting→ Cooling→De-moulding→ Conveying→Packing→Final products
PARAETERS:
MODEL |
JW150 |
JW300 |
JW450 |
JW600 |
Capacity(kg/hr) |
150(kg/hr) |
300(kg/hr) |
450(kg/hr) |
600(kg/hr) |
Max candy weight |
26g |
26g |
26g |
26g |
Lollipop Diameter |
Flat:18-28mm Ball:Max 25mm |
|||
Depositing speed |
55-65n/min |
55-65n/min |
55-65n/min |
55-65n/min |
Stick Specification |
60-100mm |
60-100mm |
60-100mm |
60-100mm |
Compressed air requirement |
0.2m³/min, |
0.2m³/min, |
0.2m³/min, |
0.2m³/min |
Working condition |
Temp:20-25°C |
Temp:20-25°C |
Temp:20-25°C |
Temp:20-25°C |
Total Power |
18kw/380V |
27kw/380V |
34kw/380V |
38kw/380V |
Total Length |
17m |
19m |
19m |
22m |
Total Weight |
3500kg |
4000kg |
Condition: |
New
|
Place of Origin: |
Shanxi China (Mainland)
|
Brand Name: |
jiawang
|
Model Number: |
JW-300
|
Application: |
Candy
|
Voltage: |
380v
|
Power(W): |
14kw
|
Weight: |
4000kg
|
Dimension(L*W*H): |
10000*1200*2100mm
|
Certification: |
CE
|
Warranty: |
1 year free
|
After-sales Service Provided: |
Overseas service center available
|
