Full-Automatic juice Plate UHT Sterilizer,China genyond price supplier

Full-Automatic juice Plate UHT Sterilizer

FOB Price:Price can be negotiated

Production Capacity:10 Set/Sets per Month

Payment Terms: US $10,000 - 200,000 / Set

Update Time:2025-04-24

Contact Supplier

Product Description

Plate Pasteurizer for Milk
1.Milk plate pasteurizer
2.capacity:1t/h
3.PLC control
4.Touch screen

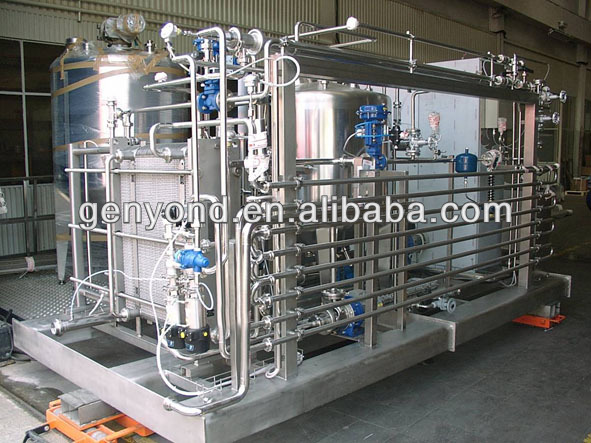

Description of Plate milk pasteurizer

Field of application: In dairy and other liquid food industries. The plate heat exchanger unit is designed for pasteurizing and cooling of milk and juice. The pasteurization temperature is typically 72 – 120C for 12-30s seconds holding.

Standard design: The unit is pre-assembled and tested before it leaves the factory. The installation on site only require connection to external service such as product inlet and outlet, water, steam, air and electricity.

The unit comprises:
- Frame work
- Set of plate heat exchangers with
          Regenerating section
          Pasteurization section
         Hot water section
          Cooling section
- Balance tank
- Product pump
- Holding tube
- Hot water pump
- Control panel with:
          PLC controller
          Color HMI interface
          Alarm for high and low temperature
         Alarm for high temperature and low flow in hot water section
         Start/stop buttons for pumps
          Indicator and record for control of pasteurizing temperature
- Set of internal pipes, valves and fittings
The unit is designed for CIP via recirculation over the balance tank and dosing of chemicals automatically.

Features & Advantages
1.Modular system for complete flexibility
2. Pre-assembled and factory-tested
3. Automatic control
4. Less product loss
5. Integration with existing control system
6. Skid-mounted for flexible relocation

Parameters
Temperature profile: 4°C→65°C→85°C / 15S→10°C→4°C

Model	Capacity	Heat exchange area(m²)	Power(kw)	Steam consumption (kg/h)	dimension(L×W×H) mm	Weight (kg)
GY16-BS-0.5	0.5t/h	5	5.2	52	1200×1200×1500	790
GY16-BS-1	1 t/h	8	5.2	60	1500×1500×1800	880
GY16-BS-2	2 t/h	13	6	104	1800×2000×1800	980
GY26-BS-3	3 t/h	20	6	156	2000×2000×2200	1080
GY26-BS-4-5	4-5 t/h	30-45	8	260	2250×2000×2200	1250
GY26-BS-6-8	6-8 t/h	35-50	8	400	2250×2000×2200	1250
GY26-BS-10	10 t/h	60	11	520	2800×2000×2200	1650
GY35-BS-15	15 t/h	75	11	780	3000×2200×2200	2150
GY35-BS-20	20 t/h	80	11	945	3300×2200×2200

Processing:	Sterilizer,sterilizetion	Condition:	New	Place of Origin:	Shanghai China (Mainland)
Brand Name:	genyond	Model Number:	gy-529	Processing Types:	Milk
Voltage:	220v,380v	Power(W):	30kw	Weight:	1500kg
Dimension(LWH):	3500x2000x2500	Certification:	iso9001	Warranty:	1 year
After-sales Service Provided:	Engineers available to service machinery overseas
