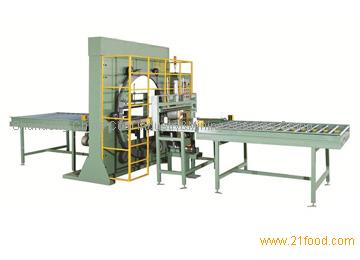

GG1200 Horizontal Wrapping Machine
Functions:
This is a semi-automatic wrapping machine specialized for horizontal shapes such as lumber, steel rod, pipe, floor board, the wrapped package is well-protected & sealed & looks more tidy. The machine can be connecting to the packing line for automatically wrapping.
Installation:
The machine shall be mounted on flat & hard ground, where the ground load should be more than 1 ton/m2.
Wrapping Station:
Double-ring & double-rub wheel devices make working more safe stable & energetic.
Friction between driving wheels and ring is adjustable.
Speed of the ring is adjustable by inverter.
Soft start and stop.
Wrapping position reset.
Packing material tension could be adjusted.
Widely packing material adopted by material frame.
Protect guardrail for safety operation.
Overlapping is adjustable from 10%-90%.
Conveyor System:
Conveyor rollers for protecting the surface of the product.
Unpowered entrance conveyor system and outlet conveyor system.
Place the wood door on the conveyor line, and push it to the wrapping station.
PLC&HMI control system:
PLC and program makes machine able to do automatic wrapping according your packing goal.
Indicator alarms automatically when trouble occurs.
Separate control panel makes operation & maintenance easily.
Interface operation.
Automatic mechanical feeding & cutting system:
Automatic material feeding for film.
Automatic material heating cutting for film.
Length of the conveyor (Optional)
Length of conveyor is optional for your requirement.
Technical parameter GG1200:
Object size:
Length: >1600mm
Width: 500-1100mm
Height: 77mm
Entrance conveyer length: 1000mm unpowered conveyor roller
Outlet conveyer length: 1000mm unpowered conveyor roller
Ring speed: 20-60r/min
Power output: app. 1.8kw
Power voltage: AC 380v, 60Hz
Material:
LLDPE stretch film/HDPE film
Width: 250mm, OD: 100-250mm, ID: 50mm
