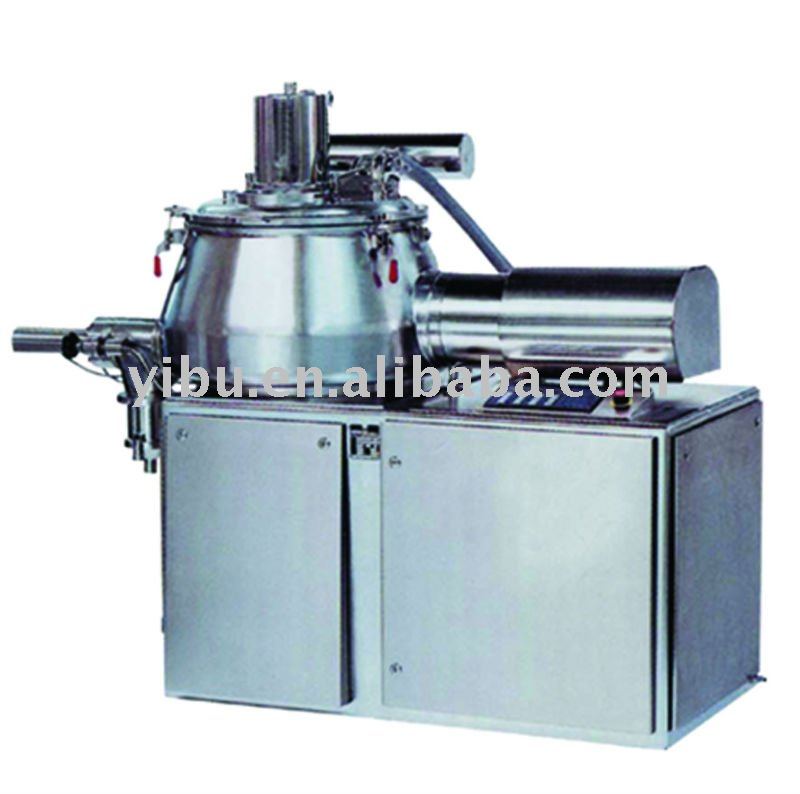

GHL Series High Speed Mixing Granulator

FOB Price:Price can be negotiated

Update Time:2014-09-20

Product Description

Lass="description"> GHL High Speed Mixing Granulator. is used for Pharmaceutical industry,Foodstuff,cocoa,coffee,milk powder,juice of granulate,etc

GHL High Speed Mixing Granulator

Features:

1) The machine adopts horizontal cylinder structure, its structure is very reasonable.
2)Air filled seals drive shaft . When washing , it can be changed into water.
3) To granulate in the state of fluidization , the granule is around ball shape. Its flow ability is
good.

4) Compared with traditional process, 25% of adhesive can be sved ,and the drying time is shortened.

5) Two minutes for dry mixing per batch,1 to 4 minutes for granulating. its efficiency is 4to 5 times than tranditational one's.

6)Dry mixing ,humid mixing and granulating are finished in the same sealed
container. It can save some steps of process.It is in conformity with the requirements of GMP. 7)

The whole operation has strict safe and protective measures.

8) Can make it into Jacket type according to customer requirements.

Principle:

The powder raw material and adhesive in a cylinder are fully mixed by the mixing blade at the
bottom in order to become humid and soft materials. Then it is cut by high-speed cutter set at side into and uniform granules.
Technical parameters:

item		specification
name	unit	10	50	150	200	250	300	400	600
capacity	L	10	50	150	200	250	300	400	600
output	kg/batch	3	15	50	80	100	130	200	280
mixing speed	r.p.m	300/600	200/400	180/270	180/270	180/270	140/220	106/155	80/120
admix power	kw	1.5/2.2	4/5.5	6.5/8	9/11	9/11	13/16	18.5/22	22/30
cuting speed	r.p.m	1500/3000	1500/ 3000	1500/ 3000	1500/3000	1500/3000	1500/3000	1500/3000	1500/3000
cuting power	kw	0.85/1.1	1.3/1.8	2.4/3	4.5/5.5	4.5/5.5	4.5/5.5	6.5/8	9/11
compressed air consumption	m ³ /min	0.6	0.6	0.9	0.9	0.9	1.1	1.5	1.8
weight	kg	250	500	800	1000	1300	1800	2200	2600

Place of Origin:	Jiangsu China (Mainland)	Brand Name:	YIBU	Model Number:	GHL
Certification:	ISO14001, ISO9001	chemical machine:	GHL High Speed Mixing Granulator	food machine:	GHL High Speed Mixing Granulator
pharmaceutical machine:	GHL High Speed Mixing Granulator	chemical product:	GHL High Speed Mixing Granulator	powder product:	GHL High Speed Mixing Granulator
food product:	GHL High Speed Mixing Granulator	pharmaceutical product:	GHL High Speed Mixing Granulator

Company Profile

Name: Changzhou Yibu Drying Equipment Co., Ltd.

Main Products: Granulator,Dryer,Fluid Bed Dryer,Spray Dryer,Blender

Business Type: Manufacturer, Trading Company

Total Employees: 101 - 200 People

Established Year: 1995

Main Markets: Domestic Market, North America, Western Europe, Southeast Asia, South America

Address: Zhajiacun, Jiaoxi, Changzhou, Jiangsu

Changzhou Yibu Drying Equipment Co., Ltd. is a leading manufacturer of drying, mixing, granulating and grinding equipment in mainland China.

Our company covers an area of more than 50,000 square meters, and has over 180 sets of special processing equipment and powerful technical force. We are a specially-designated enterprise of China Association of Pharmaceutical Equipment and China General Chemical Equipment Corporation. Especially, we are ISO9001 and ISO14001 certified.

The founder of our company, Mr. Zha Guocai has devoted himself in the research, manufacture, production and business of drying equipment for over thirty years. Our company pays much attention to science and technology renovation and has cooperated with many institutes located in Shanghai, Wuhan and Chongqing, such as the Ministry of Chemical Industry and Tsinghua University. Therefore we can launch 3 to 5 new varieties into the market every year.

In 1998, through approval of state relevant departments, our company set up China Research Center of Drying and Granulating that can research new process, develop new technology and provide new products for pharmaceutical, chemical and foodstuff industries. We also have many testing machines in our lab for clients to make trials.

Currently, our products have been sold to nearly 50 countries and regions around the world, including the USA, Mexico, Columbia, Guatemala, Brazil, Peru, Australia, New Zealand, Ghana, Russia, Cyprus, Greece, Iran, Indonesia, Malaysia, Philippines, Korea, Japan, Taiwan, and Hong Kong.

If high quality drying, blending, granulating and grinding equipment and professional services and technical support are what you are looking for, please do not hesitate to contact us. You are welcome to come to our factory to make investigation and trials. more
