Hengyu SUS304 rotary cocoa powder shale shaker,China HENG SHUN price supplier

Hengyu SUS304 rotary cocoa powder shale shaker

FOB Price:Price can be negotiated

Production Capacity:500 Set/Sets per Month cocoa powder sh

Payment Terms: US $1,000 - 7,500 / Set

Update Time:2014-09-20

Contact Supplier

Product Description

1.Unique screen frame, quickly to change it
2.Outlet can be adjusted to any direction
3.No blockage.high efficiency
4.CE/ ISO

Hengyu SUS304 rotary COCOA POWDER shale shaker

Product details

Name

Cocoa powder shale shaker

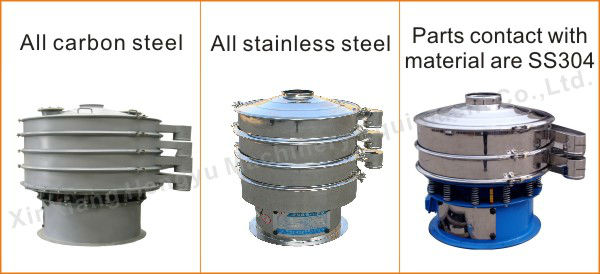

Three

materials

1. Full stainless steel

2. Full carbon steel

3. The parts contact with material are stainless steel

Features

1. Unique screen flame design, easy to replace the screens.

2. Outlet of rice bran vibrating sieve can be adjusted to any direction as you need.

3. Small size, little space and easy to move.

4. Never Jam the screen, screen size can be up to 500 mesh or 0.028 mm.

5. Discharge the impurity and coarse materials automobile and operates continuously.

6. Having the warranty period, quality assured.

7. Passed ISO 9001:2008, CE and BV certificates.

Technical parameters

Model	Diameter (mm)	Screen surface		Screen opening	Power (KW)	Deck
		Diameter	Area
		(mm)	(m 2 )
HY-400	400	360	0.1017	5-500 mesh	0.18	1-4
HY-600	600	560	0.2461		0.25-0.55	1-4
HY-800	800	760	0.4534		0.55-0.75	1-4
HY-1000	1000	930	0.6789		0.75-1.5	1-4
HY-1200	1200	1130	1.0023		1.10-1.75	1-4
HY-1500	1500	1430	1.6052		1.50-2.20	1-4
HY-1800	1800	1730	2.3494		2.20-3.0	1-4

Function

♦ Dry separation
-Separation of different materials on the basis of their particle shape
-Foods, chemicals, pharmaceuticals, minerals, animal feeds, grains
♦ Dry classification
-Separation of solid particles into precise sized fractions
-Foods, chemicals, minerals and metals, pulp and wood products, pharmaceuticals, fertilizers, abrasives
♦ Solid-liquid separation
-Dewatering solids of liquids
-Foods, chemicals, pulp
♦ Solids classification in liquid medium
-Separation of solids into sized fraction in liquid medium
-Chemicals, minerals, pulp and paper, ceramics, waste disposal

Application

For usage in the following industries:
Food--Bakery ingredients, various powder, particles or liquid, such as flour, Milk Powder sugar, salt, starch, coffee, grain, juice
Chemical--Chemical powders or liquids, such as, rubber powder, metal powder, resin pigment, grease, paint palette etc.
Pharmaceuticals--Chinese medicine powder, injection, pharmacy liquids, health food.
Coatings-- Paints, magnetic pigment, resins, inks, dyes, etc.
High temperature applications - Cooking oils, Palm oil, resins, etc

Main market

With our advanced production equipment, strong technical force and modern detection means, strict management systems and good corporation honors,our cocoa powder shale shaker are exported to North America, South America, Eastern Europe, Southeast Asia, Africa, Oceania, Mid East, Eastern Asia, Western Europe, Central America, Northern Europe, Southern Europe, South Asia, and Domestic Market.

After-sales service

12 months warranty period, engineers available to service machinery overseas

Terms payment of cocoa powder shale shaker

payment:

L/C, T/T, Western Union or Escrow

Port:

Shanghai port or your request

MOQ:

1 set

Contact us

My phone

86-150 8312 3796

Tel

86-373-3807161

Add

No. 8 Hengyu Road, Middle of Qing long road, Xinxiang, Henan, China

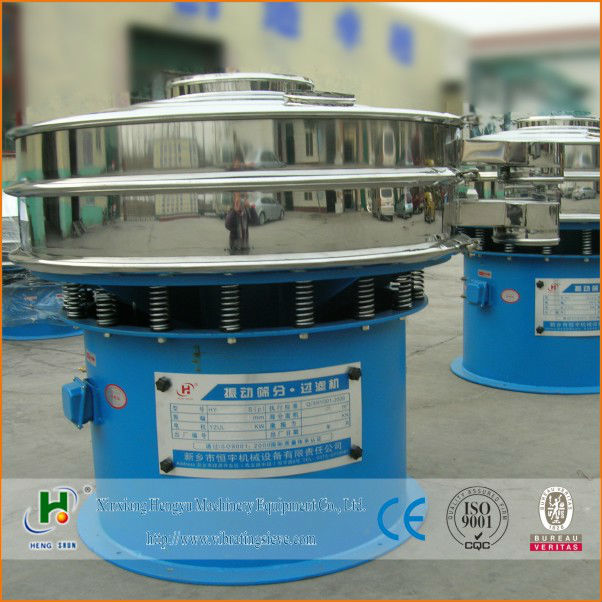

Pictures of cocoa powder shale shaker

Structure

Function

Spare parts and machine pictures

Main market

Other products

Certificates

Which models of cocoa powder shale shaker are suitable for you?

By telling us the following information to learn which models of round separator equipment

are suitable for you?

1. The name and feature of your raw material?

2. Aim of using: get rid of impurity, filtration or grading?

3. Handling capacity: kg /h, L/h?
4. Wire screen mesh size: (mesh or mm)?

We can design the cocoa powder shale shaker according to your requirement,

Contact us now.

Mob: 0086-152 8682 8447 Tel: 0086-373-3807161

Place of Origin:	Henan China (Mainland)	Brand Name:	HENG SHUN	Model Number:	HY-1000-1S
Type:	Hengyu SUS304 rotary cocoa powder shale shaker	After-sales Service Provided:	Engineers available to service machinery overseas	Machinery name:	Hengyu SUS304 rotary cocoa powder shale shaker
Materials:	stainless steel 304	Layer:	one/single	Diameter:	1000mm
Functions:	sieving.screening.filtering	Mesh:	5mesh-500mesh	Surface treatment:	mirror polishing
Excellent design:	impact designing. no dust fiying	Customization:	accepted	HS Code:	8474.10

Other Products

Large output vibration screen sawdust separation

500 mesh vibrating standard orange juice sieve

competitive price of vibrating screen

500 mesh vibrating powder seasoning screener

Company Profile

Name: Xinxiang Hengyu Machinery Equipment Co., Ltd.

Main Products: Linear Vibrating Sieve,Round Vibrating Sieve,Ultrasonic Vibratory Separator,Tumbler Screening Machine,450 Type Vibratory Separator

Business Type: Manufacturer

Total Employees: 51 - 100 People

Established Year: 2005

Main Markets: Domestic Market, Southeast Asia, North America, Southern Europe, Northern Europe

Address: No. 8 Hengyu Street, Middle of Qinglong Road, Xinxiang County

1) Manufacture sieving and conveying equipment
2) 4 years Gold Supplier certificated, 9 years of OEM and ODM experience
3) 28 years of experience of one engineer, 22 years of experience of one engineer
4) 119,097 square meters workshop area
5) Monthly production capacities: 150-200 sets
6) All goods examined before delivery by 4 QC staff
7) Delivery time within 5 working days
8) Exported to 20 counties and regions
9) ISO 9001:2008, CE, BV more
